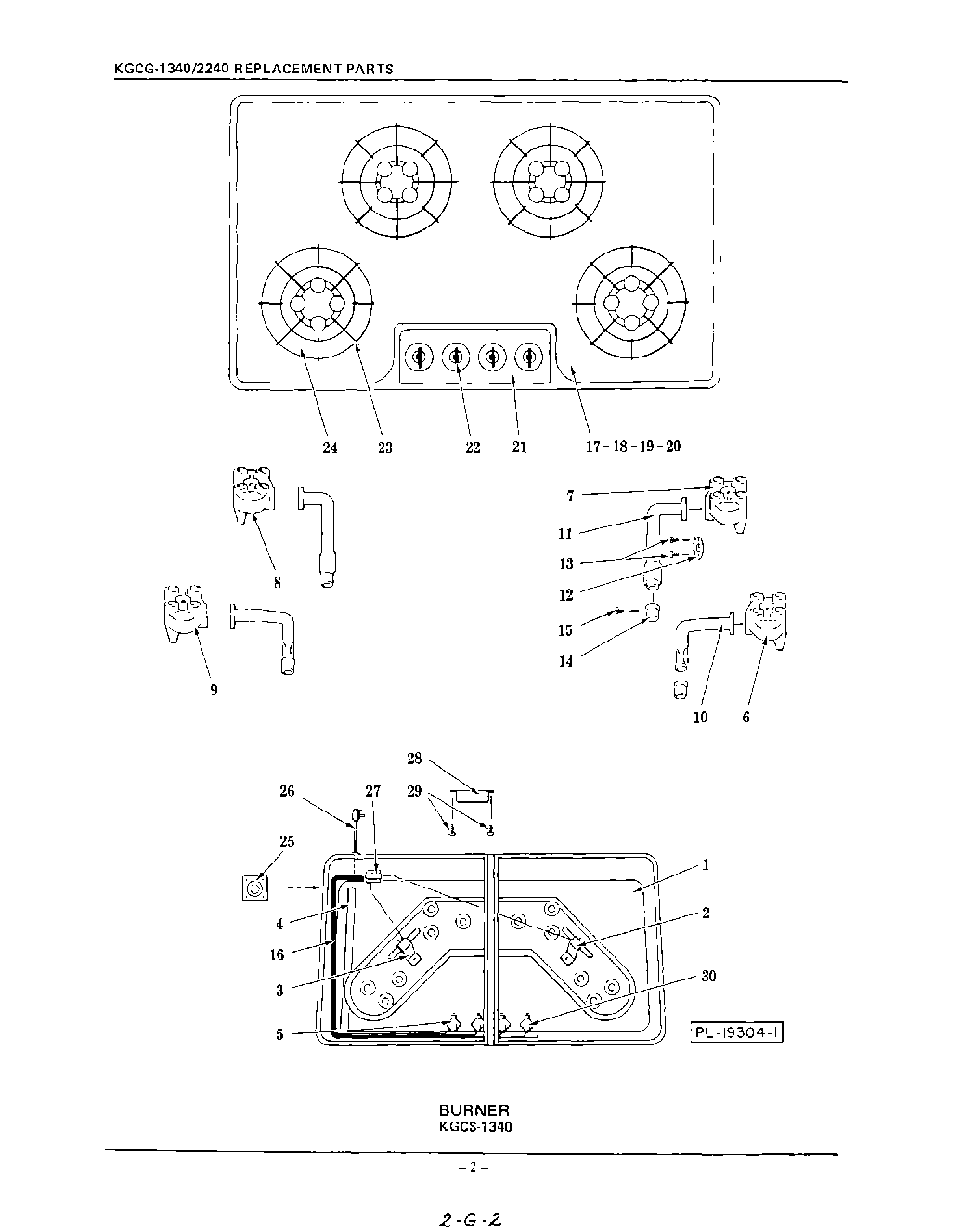

| 1 | Burner Box |
| 2 | Ignitor Assembly - Right |
| 3 | Ignitor Assembly - Left |
| 4 | Manifold |
| 5 | Valve Assembly |
| 6 | Burner, Right Front |
| 7 | Burner, Right Rear |
| 8 | Burner, Left Rear |
| 9 | Burner, Left Front |
| 10 | Venturi, Front |
| 11 | Venturi, Rear |
| 12 | Burner Gasket |
| 13 | Screw 10-24 x 7/16 AWHDP |
| 14 | Air Shutter |
| 15 | Screw, 6-32 x 1/4`` Type F PPHTCS |
| 16 | Switch Harness |
| 17 | Cooktop White Porcelain |
| 18 | Cooktop Brushed Chrome |
| 19 | Cooktop Onyx Black Porcelain |
| 20 | Cooktop Almond Porcelain |
| 21 | Name Plate |
| 22 | Control Knob |
| 23 | Grate |
| 24 | Drip Ring |
| 25 | Pressure Regulator 1/2 x 1/2 |
| 26 | Service Cord |
| 27 | Spark Module |
| 28 | Spark Module Cover |
| 29 | Screw, 8AB x 3/8 PPHSMS |
| 30 | Switch |
