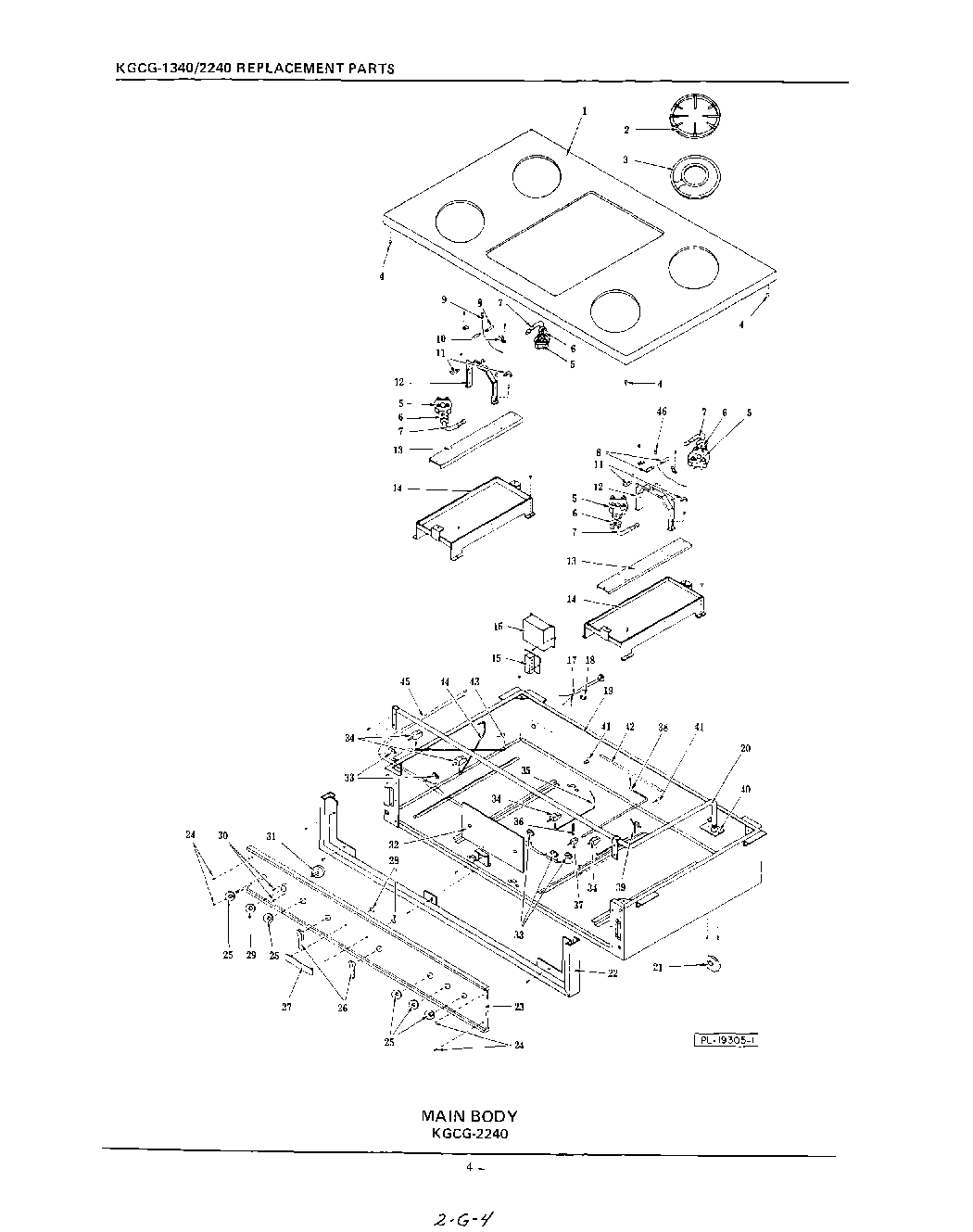

| 1 | Cooktop |
| 2 | Grate |
| 3 | Drip Ring |
| 4 | Tee Bolt |
| 5 | Top Burner |
| 6 | Burner Gasket |
| 7 | Venturi |
| 8 | Flash Tube |
| 9 | Ignitor and Cap Assembly, Broiler |
| 10 | Flash Tube Retainer |
| 11 | Elbow Mixer |
| 12 | Orifice Ignitor Bracket |
| 13 | Burner Support |
| 14 | Burner Pan |
| 15 | Spark Module |
| 16 | Module Cover |
| 17 | Service Cord |
| 18 | Strain Relief Bushing |
| 19 | Housing |
| 20 | Manifold |
| 21 | Pressure Regulator 1/2 x 1/2 |
| 22 | Front Frame |
| 23 | Control Panel |
| 24 | Screw, 10-16 x 3/8`` x POHSMS |
| 25 | Knob, Burner |
| 26 | Handle |
| 27 | Nameplate |
| 28 | Nut, Push - On |
| 29 | Knob - Timer |
| 30 | Screw, 5-40 x 1/2`` RHMS - Slot |
| 31 | Timer |
| 32 | Control Panel Heat Shield |
| 33 | Switch |
| 34 | Valve, Top Burner |
| 35 | Tubing, Burner, Right Rear |
| 36 | Valve Adaptor |
| 37 | Valve, Broiler |
| 38 | Tubing, Broiler |
| 39 | Tubing, Burner, Right Front |
| 40 | Inlet Cover Plate |
| 41 | Conduit Clamp |
| 42 | Conduit |
| 43 | Tubing, Burner, Left Rear |
| 44 | Tubing, Burner, Left Front |
| 45 | Switch Harness |
| 46 | Ignitor and Cap Assembly, Right |
