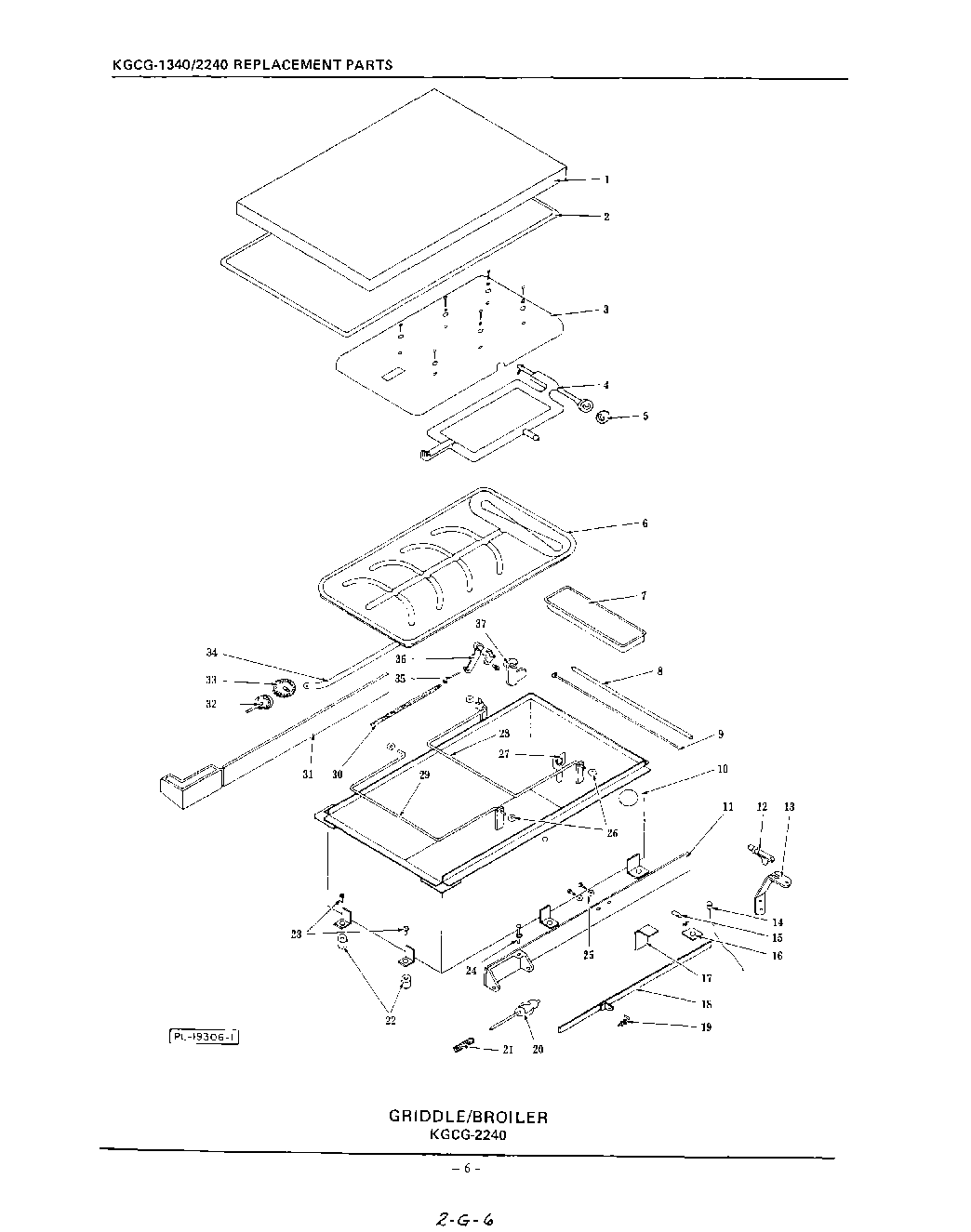

KGCG2240 04 – GRIDDLE / BROILER

Products

Position	Product
1	Cutting Board
2	Griddle
3	Broiler Burner Heat Shield
4	Broiler Burner
5	Air Shutter, Broiler Burner
6	Broiler Platter
7	Grease Cup
8	Broiler Box Spacer
9	Broiler Box Tee Bolt
10	Broiler Box
11	Broiler Box Reinforcement Plate, Right
12	Mixer Pin, Broiler
13	Mixer Pin, Bracket
14	Ignitor and Cap Assembly, Broiler
15	Flash Tube, Broiler
16	Broiler Ignitor Bracket
17	Ignitor Bracket Support
18	Sling Link Assy
19	Front Sling Adjustment Hook
20	Griddle Lift Cam and Shaft Assembly
21	Cam Shaft Spring
22	Spacer
23	Screw, 10-24 x 1/4`` HWHTCS
24	Screw, 10-24 x 1-1/2`` HHMS Slot
25	Washer, 13/32 x 5/8
26	Washer, 7/16 x 1
27	Burner Neck Burner
28	Rear Sling Assembly
29	Front Sling Assembly
30	Broiler Lift Spring
31	Broiler Box Reinforcement Plate, Left
32	Front Gear and Shaft Assembly
33	Griddle Lift Gear
34	Connecting Bar
35	Eye Bolt, 10-24 x 1-1/2 HHMS Slot
36	Griddle Lift Spring - Coupling Assembly
37	Broiler Burner Shaft Bearing
