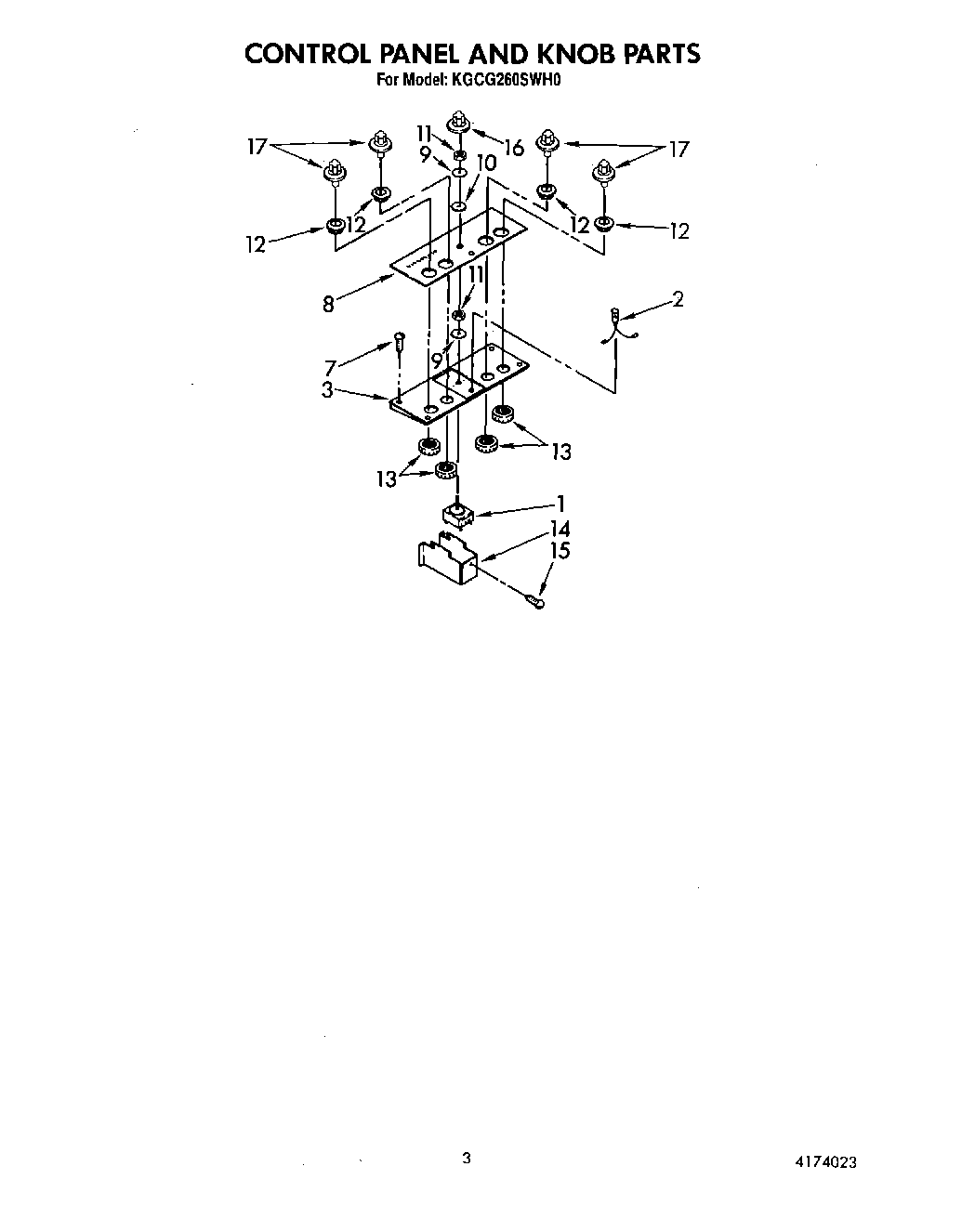

KGCG260SAL0 03 – CONTROL PANEL AND KNOB

Products

PositionProduct
1Switch, Infinite
2Light, Grill Indicator
3Frame, Glass Mounting
7Screw, Drive (4) (Frame Mounting)
8Panel, Control (Glass) (Kitchen Aid Name- plate)
9Washer (4)
10WP3188425 Whirlpool Seal Switch
11Nut, Hex Jam (4)
12Grommet, Control Panel Positioning (4)
13Locknut, Control Panel Positioning (4)
14Cover, Infinite Switch
15Screw, (2)
16Knob, Control (4)
17Knob, Control (4)
