KGCG260SAL5 01 – COOKTOP

KGCG260SAL5 01 – COOKTOP

Written by

in

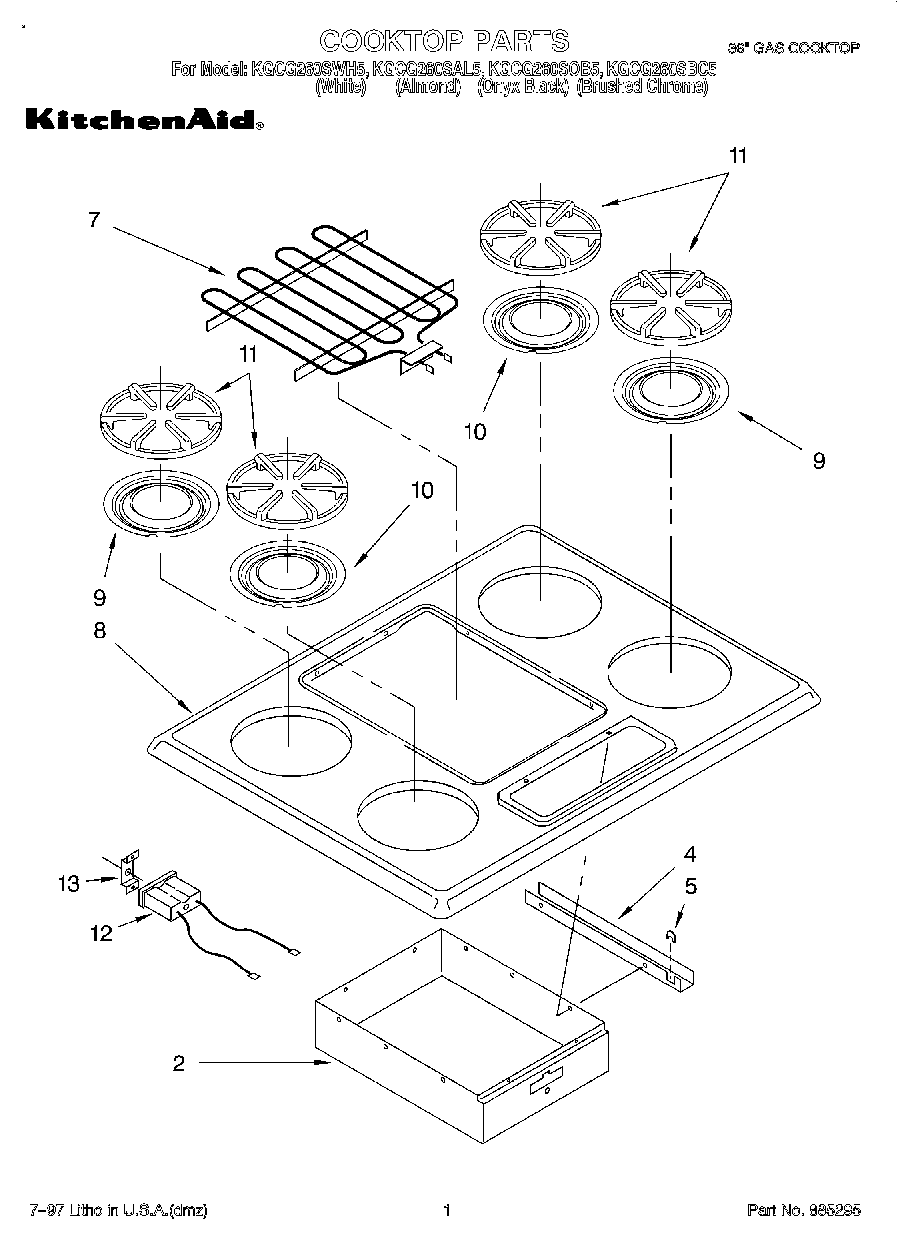

KGCG260SAL5 01 – COOKTOP

Products

PositionProduct
Guide, Use & Care
Instructions, Installation
2Pan, Heat Shield
4Channel, Grill Harness
5Bushing
5Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB
7Element, Grill (1700 W 120 V)
8Cooktop (Onyx Black)
8Cooktop (Brushed Chrome)
8Cooktop (Almond)
8Cooktop (White)
9Bowl, Drip (2) (Power Burner)
10Bowl, Drip (2) (Daisy Burner)
11Grate, Cooktop (4)
12Receptacle, Grill Element
13Screw
13Mounting Hardware
13Clip, Grill Ground
