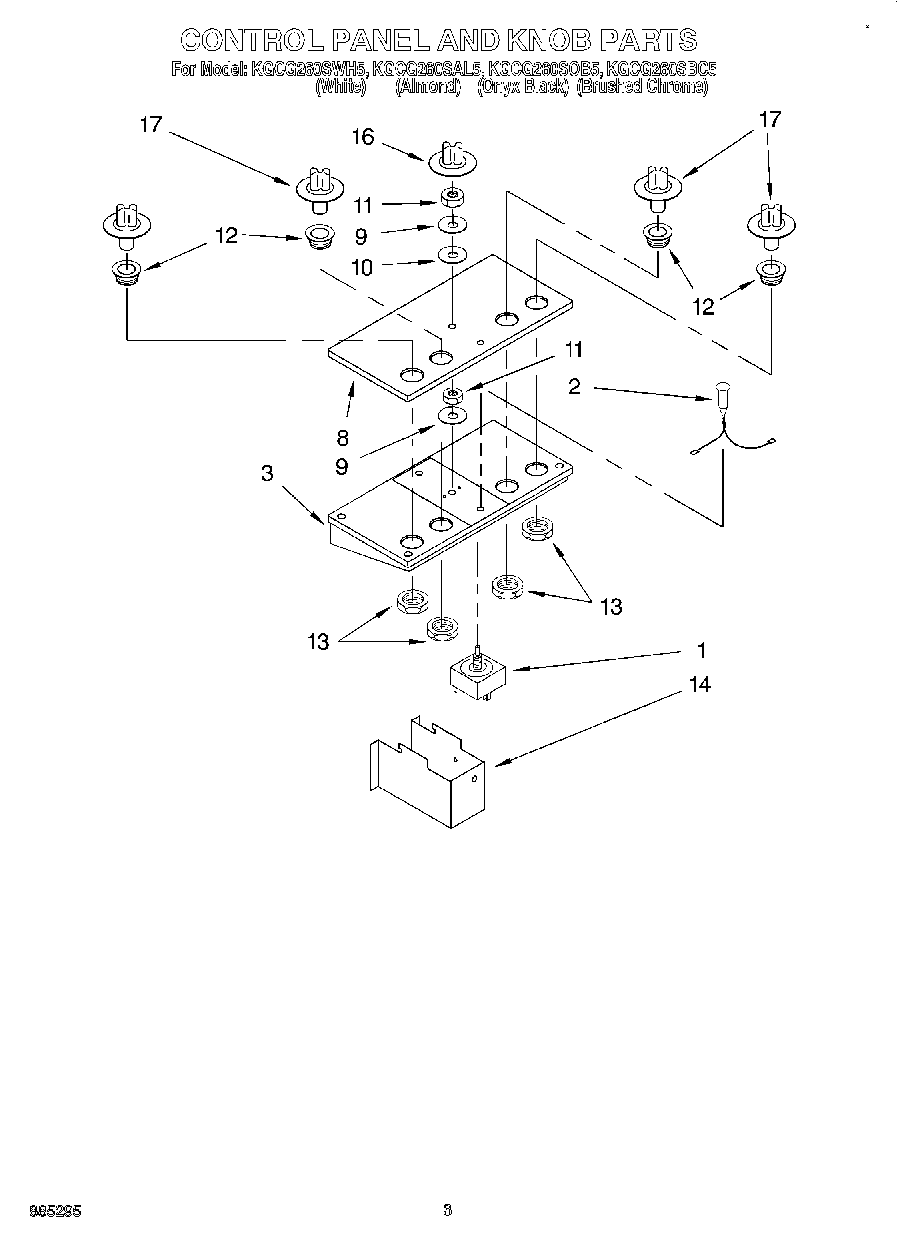

KGCG260SAL5 02 – CONTROL PANEL

Products

PositionProduct
1Switch, Infinite
2Light, Grill Indicator
3Screw (4), No.8-32x.500
3Nut (4) No.8-32
3Frame, Glass Mounting
8Panel, Control (Glass) (Kitchen Aid Name- plate)
9Washer (4)
10WP3188425 Whirlpool Seal Switch
11Nut, Hex Jam (4)
12Grommet, Control Panel Positioning (4)
13Locknut, Control Panel Positioning (4)
14Cover, Infinite Switch
14Screw, (2)
16Knob, Control (4)
17Knob, Control (4)
