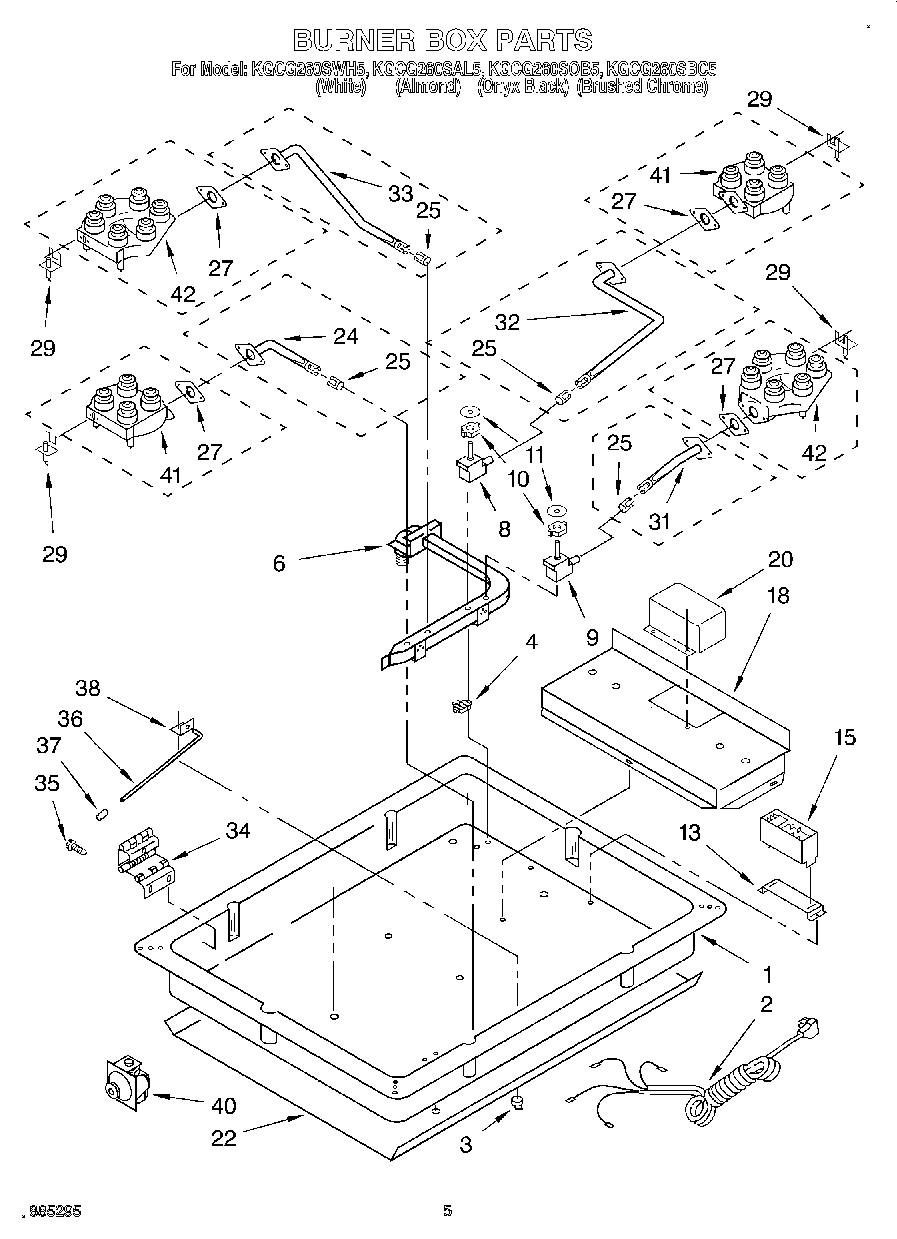

KGCG260SAL5 04 – BURNER BOX

Products

Position	Product
1	Box, Burner
2	Power Cord
3	Bushing, Strain Relief
4	Wire, Spark Module To Terminal Block
4	Block, Terminal
6	Manifold Ass`y
8	Valve, Daisy (2) (Bolt Thru)
9	Valve, Power (2) (Bolt Thru)
10	Switch, Gas Ignitor (4)
11	WP3188425 Whirlpool Seal Switch
13	Screw
13	Bracket, Spark Module
15	Module, Spark Ignitor Wire
18	Bracket, Burner Base (Right)
20	Cover, Spark Module
22	Pan, Heat Shield Burner Box
24	Venturi (Left Front) (Includes Illus. 25 & 26)
25	Mixer Valve
27	Screw, No.10-24 X 3/8“ Hex TCS
27	Gasket, Venturi
29	4175453 Whirlpool Oven Surface Igniter
29	WP313808 Whirlpool Screw
31	Venturi (Right Front) (Includes Illus. 25 & 26)
32	Venturi (Right Rear)
33	Venturi (Left Rear)
34	Hinge, Cooktop (2)
36	Rod, Cook Support
37	Tip, Rod Support
38	Bracket, Support Rod
38	Screw, (2)
40	REGULATOR, PRESSURE
41	Daisy Burner (L.F. & R.R.)
42	Burner, Power (R.F. & L.R.)
42	Wiring Harness (Electric Grill)
42	Wiring Harness (Spark Module To Valve Switch)
42	Screw
