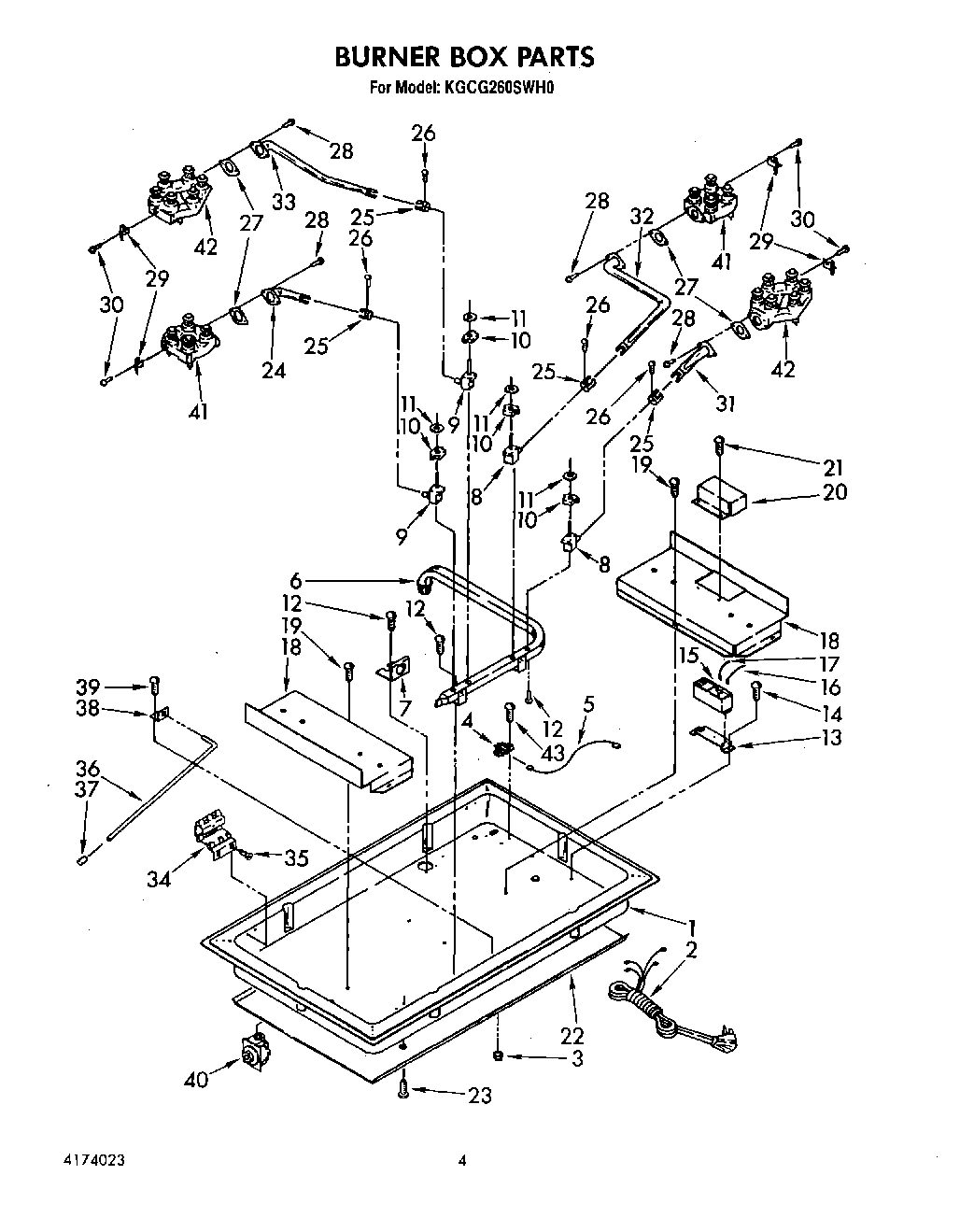

KGCG260SBC0 04 – BURNER BOX

Products

Position	Product
1	Box, Burner
2	Power Cord
3	Bushing, Strain Relief
4	Block, Terminal
5	Wire, Spark Module To Terminal Block
6	Mainfold
7	Bracket, Manifold Support
8	Valve, Daisy (2) (Bolt Thru)
9	Valve, Power (2) (Bolt Thru)
10	Switch, Gas Ignitor (4)
11	WP3188425 Whirlpool Seal Switch
13	Bracket, Spark Module
14	Screw
15	Module, Spark
16	Wire, Direct Spark (17“)
17	Wire, Direct Spark (47“)
18	Bracket, Burner Base (Right)
18	Bracket, Burner Base (Left)
20	Cover, Spark Module
21	WPW10068250 Whirlpool Dishwasher Screw
22	Pan, Heat Shield Burner Box
24	Venturi (Left Front) (Includes Illus. 25 & 26)
25	Valve, Mixer
26	Base Cover Screws
27	Gasket, Venturi
28	Screw, No.10-24 X 3/8“ Hex TCS
29	4175453 Whirlpool Oven Surface Igniter
30	WP313808 Whirlpool Screw
31	Venturi (Right Front) (Includes Illus. 25 & 26)
32	Venturi (Right Rear)
33	Venturi (Left Rear)
34	Hinge, Cooktop (2)
36	Rod, Cook Support
37	WPL 4173128
38	WPL 4173129
39	Screw, (2)
40	REGULATOR, PRESSURE
41	Daisy Burner (L.F. & R.R.) (Includes Illus. 15A & 15B)
42	Burner, Power (R.F. & L.R.) (Includes Illus. 15A & 15B)
43	Screw
