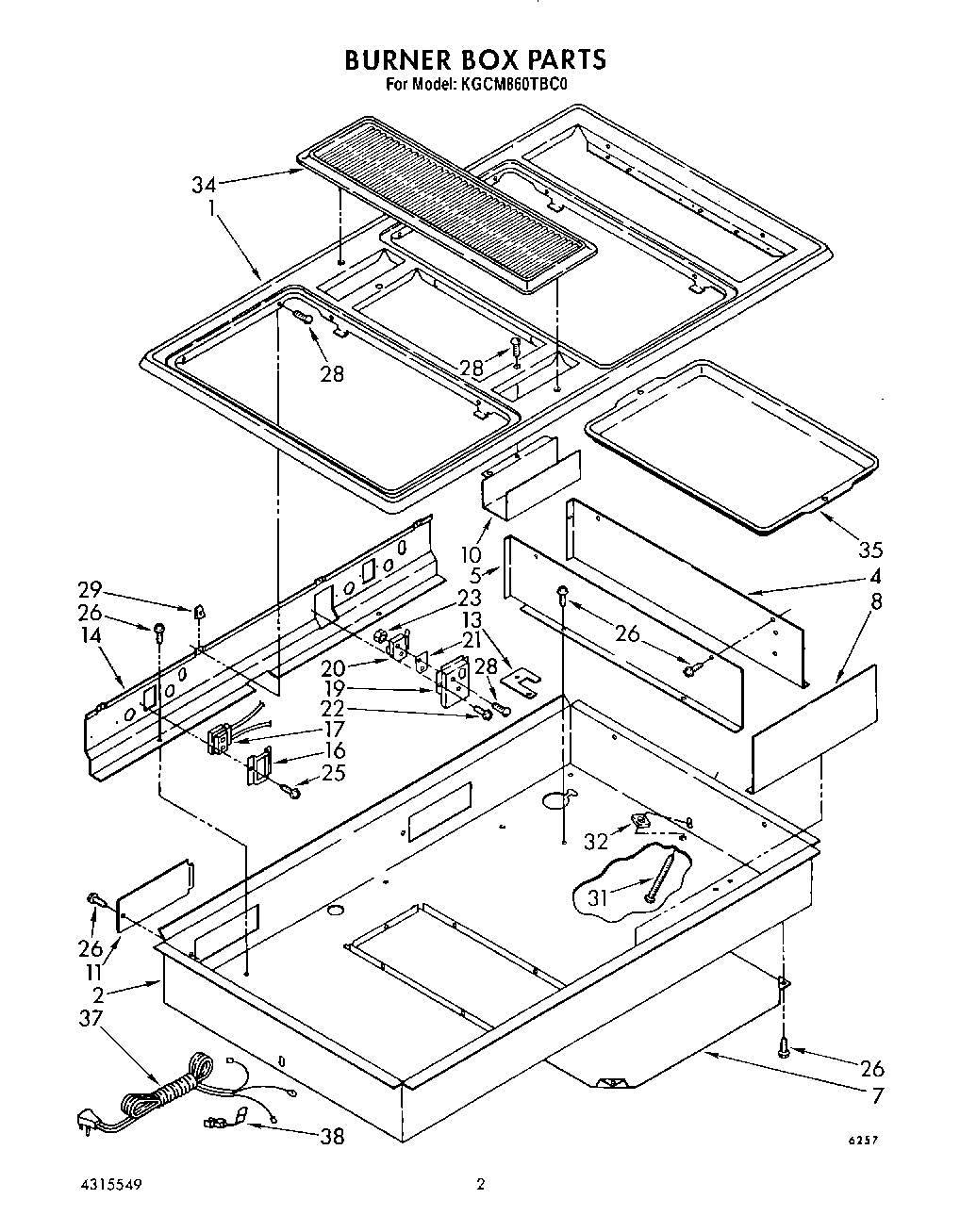

KGCM860TBC0 02 – BURNER BOX , LITERATURE AND OPTIONAL

Products

Position	Product
	List, Repair Parts
	Instructions, Installation
	Guide, Use & Care
1	Top, Main
2	Box, Burner
4	Sheild, Switch
5	Shield, Heat Control
7	Baffle, Bottom
8	Shield, Front Heat
10	Shield, Sight
11	Cover, Access (2)
13	Bracket, Manifold Support
14	Bracket, Orifice Mounting
16	Bracket, Plug Block Mounting (2)
17	Plug Block (L.H.)
17	Plug Block (R.H.)
19	Bracket, Fan Switch (Right Side)
19	Bracket, Fan Switch (Left Side)
20	Switch, Fan
21	Insulator, Switch
22	Screw, 4-40 X 5/8 (2)
23	Nut
25	WP3177991 Whirlpool Screw
26	Screw, 8 X 3/8 (14)
28	WP965173 Whirlpool Dishwasher Screw
29	U-Clip, Top Mounting (12)
31	Screw, Hold Down (2)
32	Nut, 1/4-20 (2)
34	Cover, Vent
35	Pan, Grease
37	Cord, Power
38	Wire, 25` Roll (Red 14 Ga.)
38	Wire, 25` Roll (Black 14 Ga.)
38	Wire, 25“ Roll (White 14 GA.)
38	242831 Whirlpool Oven Wire
38	1
38	18 Ga. 80~c Rating (Red)
38	WP90028 Whirlpool Terminal
38	WP285432 Whirlpool Terminal
38	Wire (12 Ga. 150 c Black)
38	Wire (14 Ga. 150 c Yellow)
38	Wire (14 Ga. 150 c Orange)
38	Wire (14 Ga. 150 c Green)
38	Wire (14 Ga. 150 c Brown)
38	Strain Relief
38	Wire (14 Ga. 150 c Blue)
38	Wire (14 Ga. 200 c Brown)
