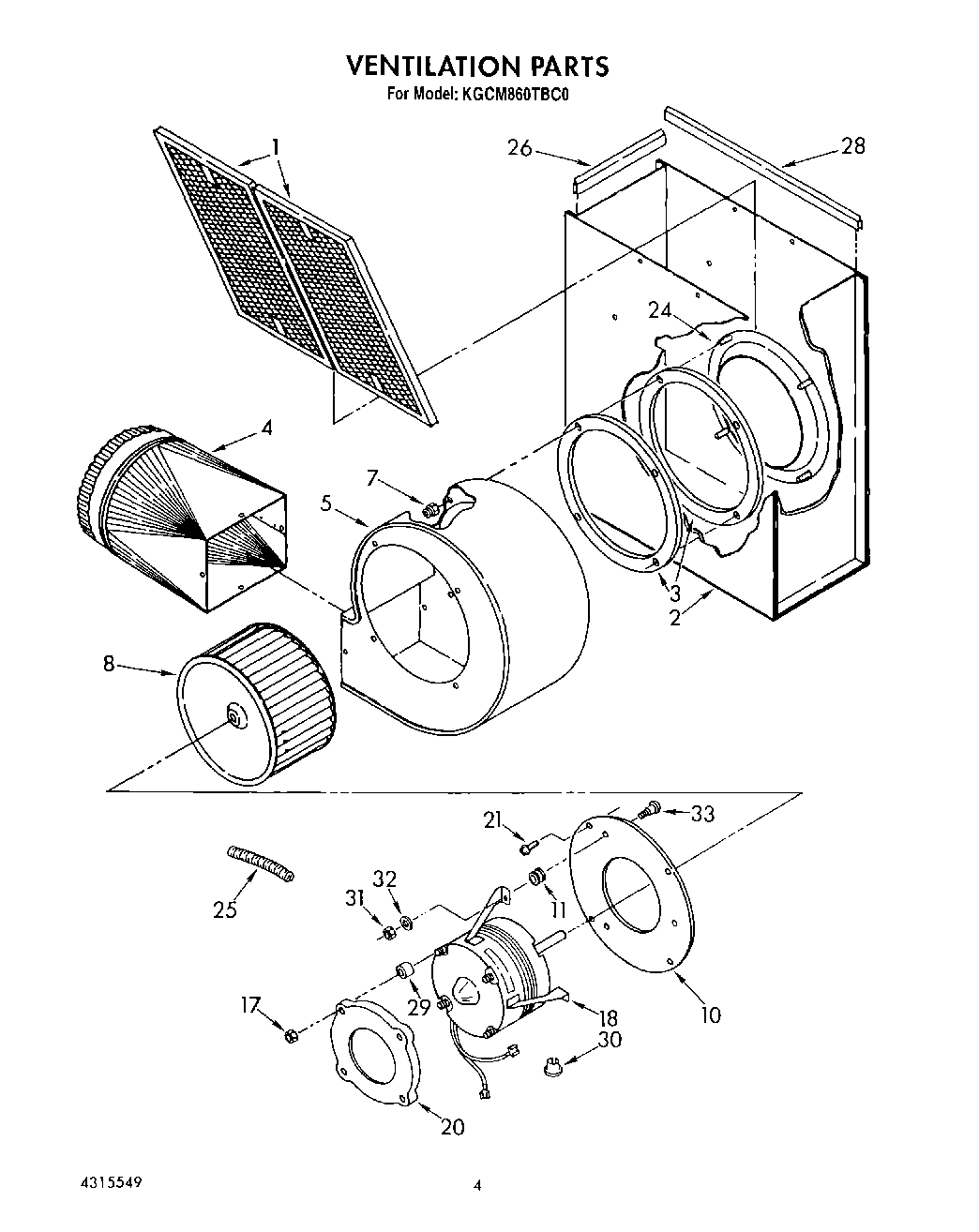

KGCM860TBC0 03 – VENTILATION

Products

PositionProduct
1Filter Kit (Contains 2)
2Plenum
3Gasket, Motor Mounting
4Transition 6“
5Scroll, Fan
7Nut, Locking (4)
8Wheel, Fan
10Plate, Motor Mounting
11Grommet, Motor Mounting (8)
17WP488826 Whirlpool Nut
18Motor, 60 Hz.
20Cover, Motor
21WP488729 Whirlpool Refrigerator Door Screw
24Orifice
25Conduit
26Seal, Plenum End (2)
28Seal, Plenum Side (2)
29Spacer, Motor Cover (4)
30Bushing
31Screw, 8 X 3/8 (14)
32Washer (3)
33Bolt, 10-24 X 3/4 (3)
