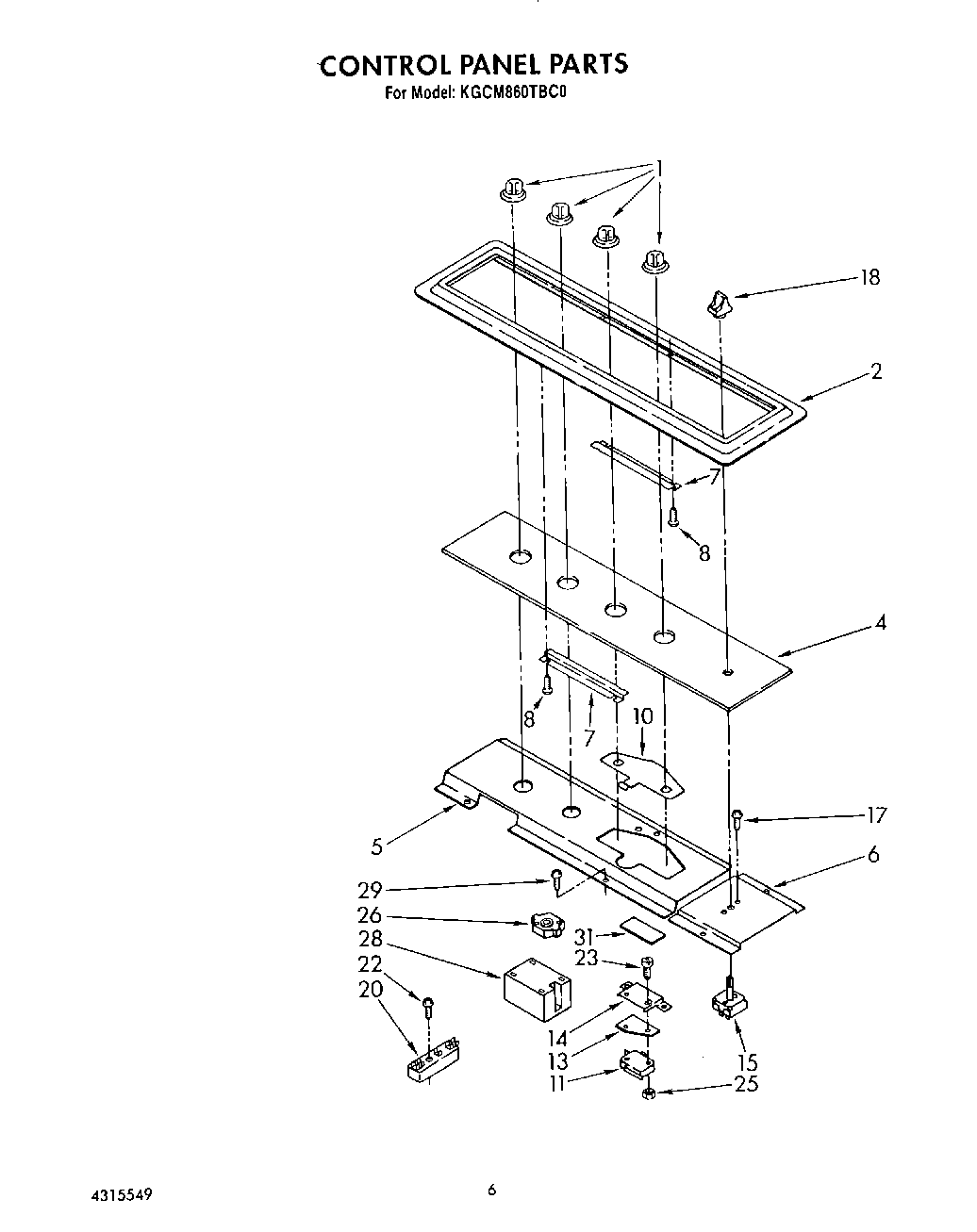

KGCM860TBC0 05 – CONTROL PANEL

Products

Position	Product
1	Knob, Valve (4)
2	Trim, Control Panel
4	Glass, Control Panel
5	Shield, Valve & Switch
6	Bracket, Switch Mtg.
7	Retainer, Glass (2)
8	Screw, 4-40 X 1/4 (2)
10	Actuator, Switch
11	Switch, Fan
13	Insulator, Switch
14	Bracket, Fan Switch
15	Switch, Fan (Manual)
17	Screw, 6-32 X 3/16 (2)
18	WP4168403 Whirlpool Knob
20	Block, Terminal
22	W11693756 Whirlpool Screw Assembly
23	Screw, 4-40 X 5/8 (2)
25	Nut
26	Switch, Valve (4)
28	Module, Spark
29	WP489128 Whirlpool Refrigerator Screw
31	Insulator, Switch
