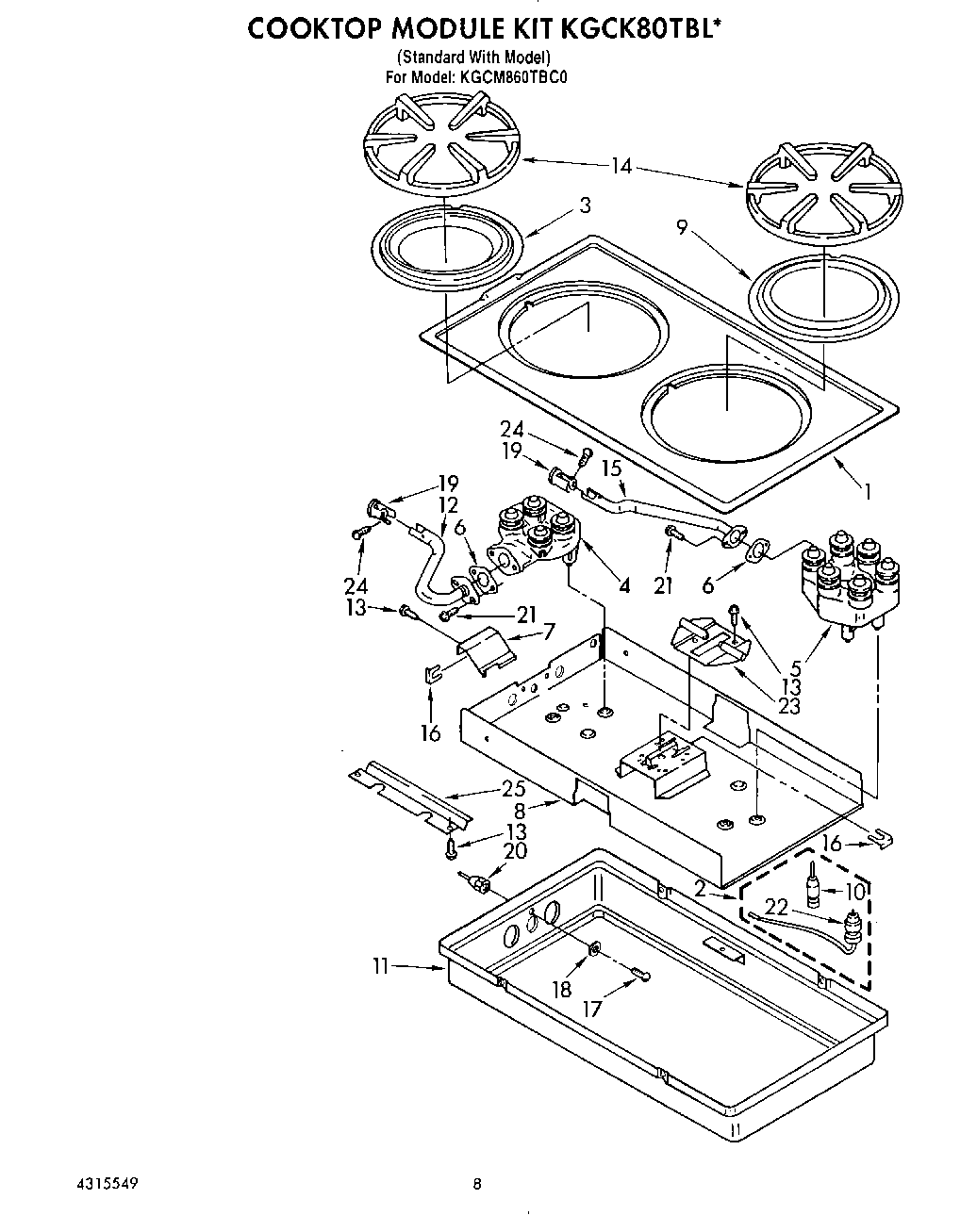

KGCM860TBC0 07 – COOK TOP KGCK80TBL

Products

PositionProduct
1Top, Module
2Electrode Asm.
3Bowl Drip (Small)
4Burner, Rear (Short Venturi)
5Burner, Power (Long Venturi)
6Gasket
7Wire Shield, Ignitor
8Burner Support Plate
9Bowl Drip (Large)
10Connector, Electrode
11Module Pan
12Burner Mixing Tube Rear
13WP489128 Whirlpool Refrigerator Screw
14Grate, Top Burner
15Burner Mixing Tube (Front)
16WPY0070927 Whirlpool Microwave Clip
17Screw (4) No.8-32 x 3/18
18Lockwasher No.8
19Valve, Mixer
20BOX ASSEMBLY
21Screw No.10 (4)
22Electrode, Spark
23Tube, Flash
24Base Cover Screws
25Electrode Shield
