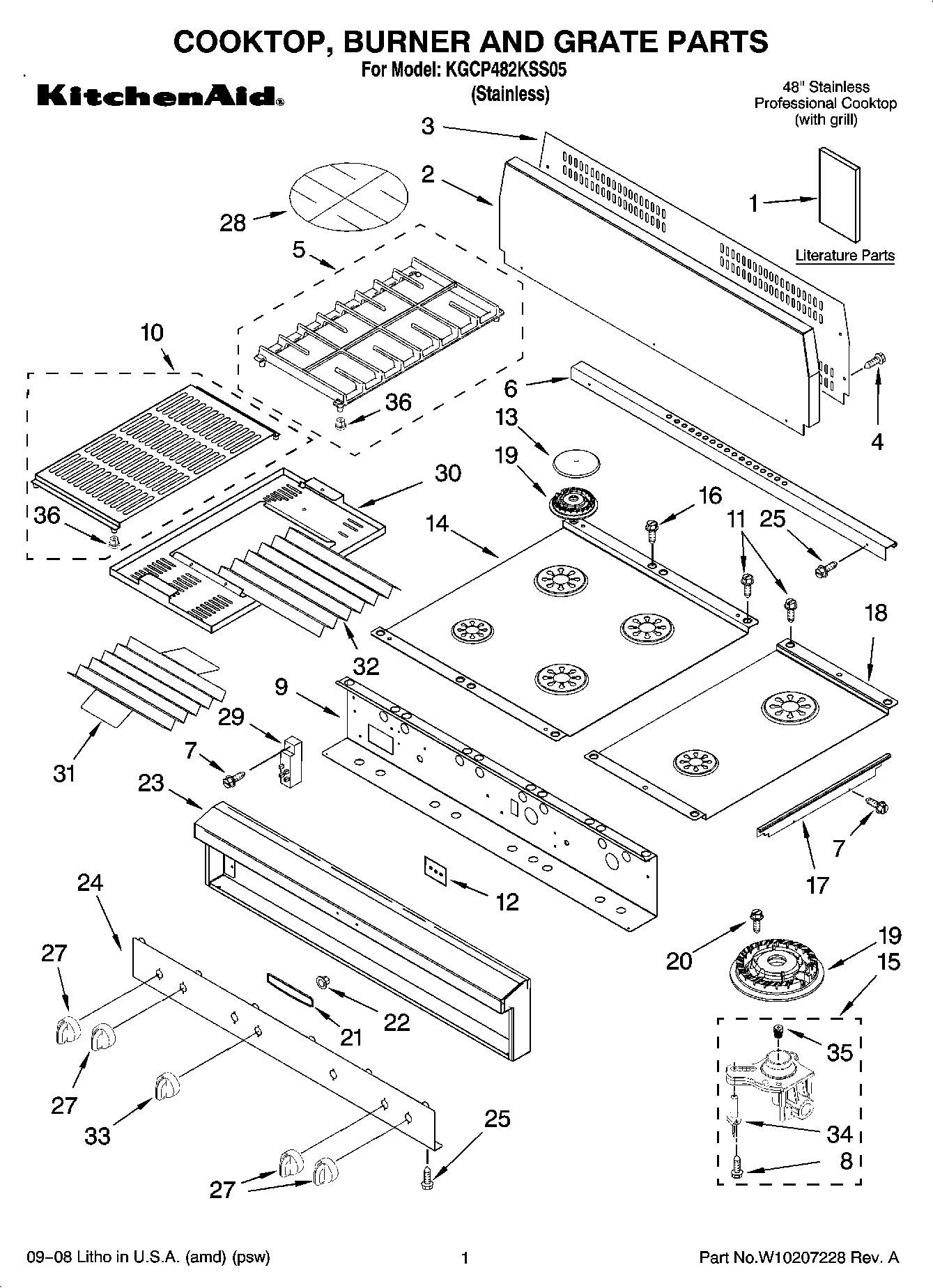

KGCP482KSS05 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Instructions, LP Conversion
1	Tech Sheet
1	Use & Care Guide
1	Installation Instructions
2	Trim, Backsplash
3	Support, Backsplash
4	WP3196557 Whirlpool Screw
5	Grate, Burner
6	Trim, Island
7	WP12990527 Whirlpool Microwave Screw
8	WP8273062 Whirlpool Screw
9	Support, Control Panel
10	Grate, Grill
11	Screw
12	W10491984 Whirlpool Switch Seal
13	WP8284669 Whirlpool Burner Cap
13	Cap, Burner ((14K))
14	Cooktop (24“)
15	WPW10128449 Whirlpool Orifice Holder
15	WPW10155786 Whirlpool Surface Burner Orifice Holder
16	WP4449743 Whirlpool Screw
17	Trim, Side (Right)
17	Trim, Side (Left)
18	Cooktop (12“) (2 Lrg Burners)
19	WP4455979 Whirlpool Range Small Burner Head
19	Burner Head (Turbi)
20	WP3368921 Whirlpool Screw
21	Nameplate (Black)
22	WP2004333 Whirlpool Refrigerator Nut
23	Control Frame
24	Panel, Control
25	SCREW
27	WPW10078400 Whirlpool Knob Assembly
28	Plate, Simmer
29	WPW10110486 Whirlpool Spark Module
30	Frame, Wave Tray
31	Plate, Wave
32	Plate, Wave Tray
32	WP3177991 Whirlpool Screw
33	Knob, Grill
34	WP9782116 Whirlpool Surface Igniter
35	8286473 Whirlpool Oven Orifice
35	Orifice (Turbi (14k))
36	W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
