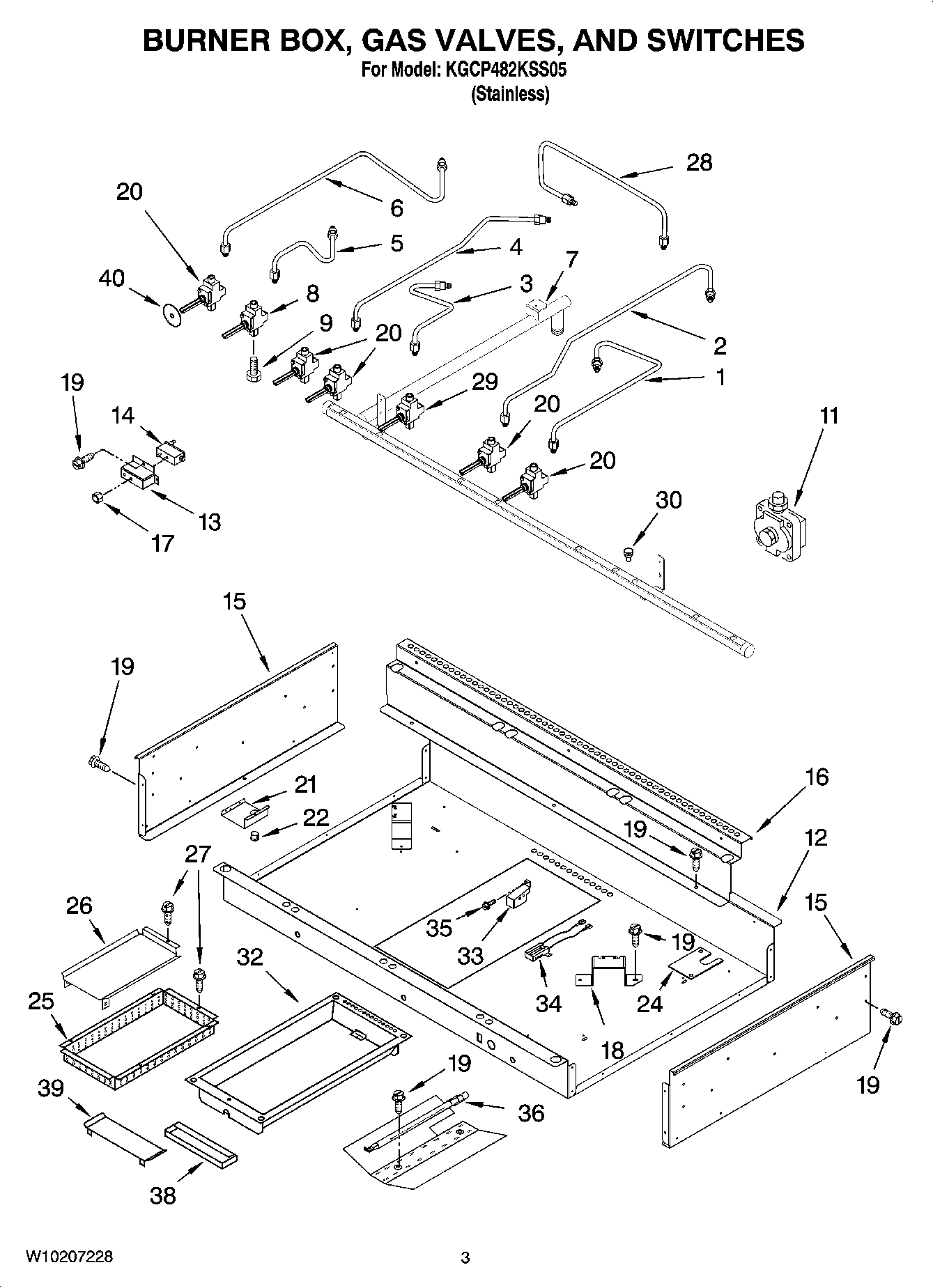

KGCP482KSS05 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Products

Position	Product
	4173634 Whirlpool Bushing
	Harness, Switch Grill
	4456627 Whirlpool Wire Harness
	Spud Kit
	Harness, Wire (Ignitor 42“)
	Power Cord
	Bushing
	WIRING HARNESS PARTS
	Miscellaneous
1	Tubing, Gas Burner – RF
2	Tubing, Gas Burner – RR
3	Tubing, Gas Burner – CF
4	Tubing, Gas
5	Tubing, Gas Burner – CR Burner – LF
6	Tubing, Gas Burner – LR
7	Manifold (Includes Items 9 & 30)
8	WP4456816 Whirlpool Burner Valve
9	WP3186217 Whirlpool Screw
11	WP9759091 Whirlpool Regulator
12	Burner Box
13	Bracket, Grill Valve
14	Valve, Grill
15	Side, Burner Box (Right Side)
15	Side, Burner Box (Left Side)
16	Support, Rear
17	WP488130 Whirlpool Air Conditioner Nut
18	Bracket, Burner
19	WP3177991 Whirlpool Screw
20	Valve, Burner (Bronze)
21	Cover, Shelf
22	Bushing, Cover Shelf
24	Cover, Panel
25	Box, Burner Lower
26	Guard, Rear Spill
27	WP12990527 Whirlpool Microwave Screw
28	Tube, Grill
29	Valve, Gas Grill
30	Adapter (Plug, Close)
32	Module, Grill
33	Bracket, Ignitor (Grill)
34	Ignitor, Griddle
35	3400855 Whirlpool Oven Screw
36	Log Burner, Grill
38	Tray, Drip (Grill)
39	Guard, Front Spill
40	WP3188425 Whirlpool Seal Switch
