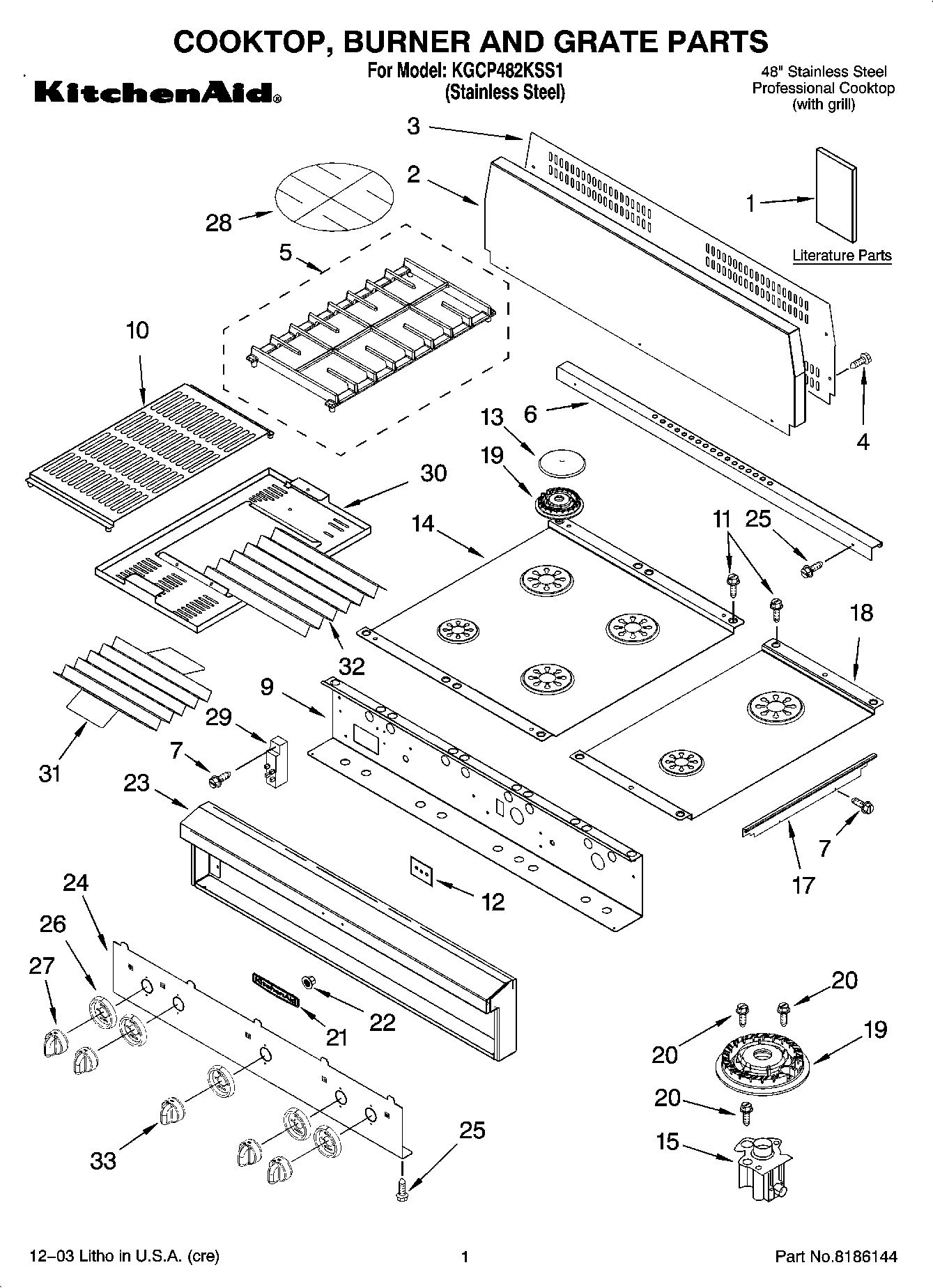

KGCP482KSS1 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Literature Parts (Installation Instructions)
1	Wiring Diagram
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Instructions, LP Conversion)
2	Trim, Backsplash
3	Support, Backsplash
4	WP3196557 Whirlpool Screw
5	Grate, Burner
6	Trim, Island
7	WP12990527 Whirlpool Microwave Screw
9	Support, Control Panel
10	Grate, Grill
11	Screw
12	W10491984 Whirlpool Switch Seal
13	Cap, Burner ((14K))
13	WP8284669 Whirlpool Burner Cap
14	Cooktop (24“)
15	WPW10155786 Whirlpool Surface Burner Orifice Holder
15	Orifice Holder (Includes Orific & Ignitor) (Auxi)
17	Trim, Side (Left Hand)
17	Trim, Side (Right Hand)
18	Cooktop (12“)
19	WP4455979 Whirlpool Range Small Burner Head
19	Burner Head (Turbi)
20	WP3368921 Whirlpool Screw
21	Nameplate (Black)
22	WP2004333 Whirlpool Refrigerator Nut
23	Control Frame
24	Panel, Control
25	SCREW
26	Bezel, Knob
27	WPW10078400 Whirlpool Knob Assembly
28	Plate, Simmer
29	WPW10110486 Whirlpool Spark Module
30	Frame, Wave Tray
31	Plate, Wave
32	WP3177991 Whirlpool Screw
32	Plate, Wave tray
33	Knob, Grill
