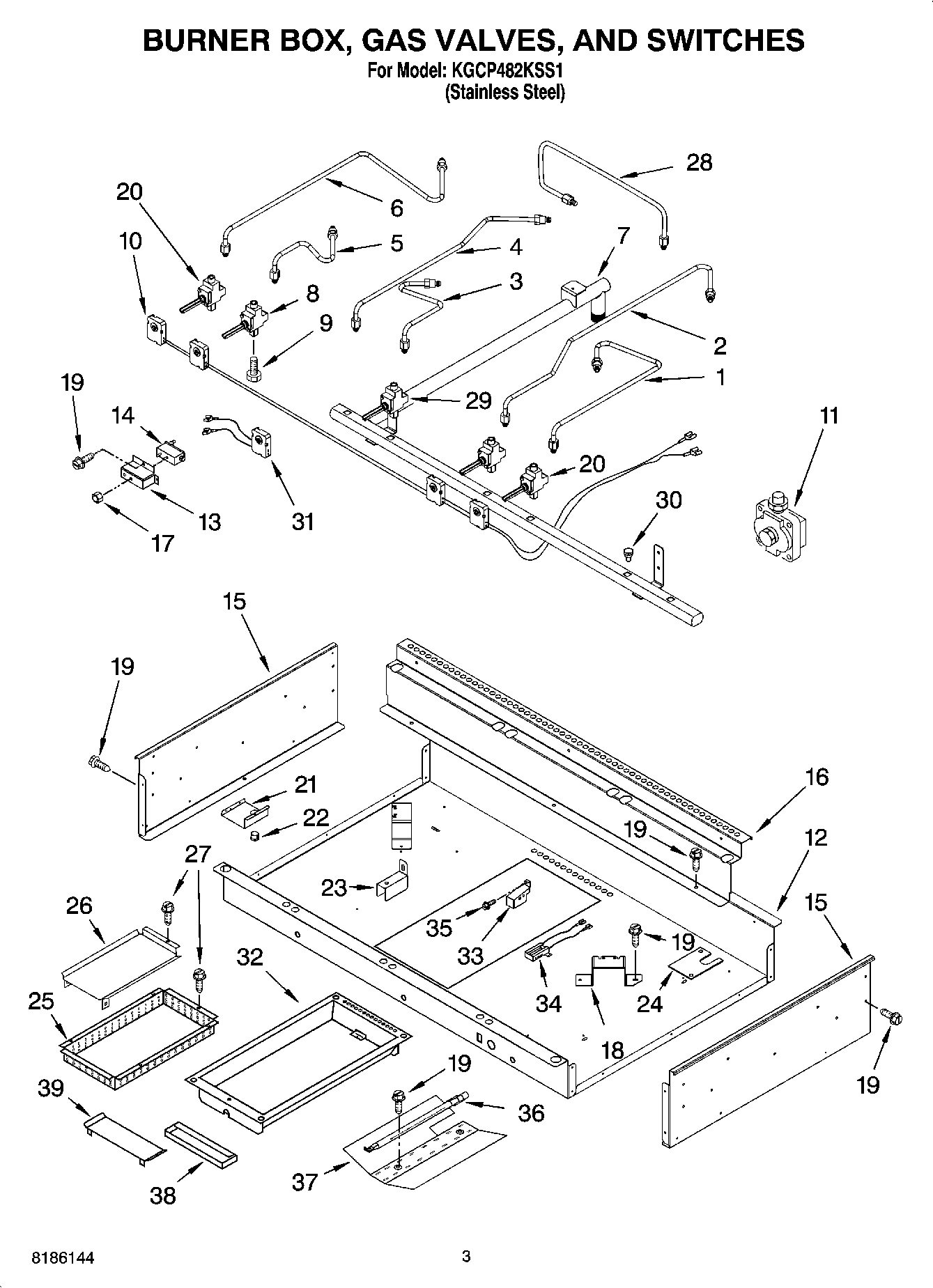

KGCP482KSS1 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1Tubing, Gas Burner – RF
2Tubing, Gas Burner – RR
3Tubing, Gas Burner – CF
4Tubing, Gas
5Tubing, Gas Burner – CR Burner – LF
6Tubing, Gas Burner – LR
7Manifold (Includes Items 9 & 30)
8Valve, Burner (Silver)
9WP3186217 Whirlpool Screw
10Burner Switch & Harness Assembly
10WP3188425 Whirlpool Seal Switch
11WP9759091 Whirlpool Regulator
12Burner Box
13Bracket, Grill Valve
14Valve, Grill
15Side, Burner Box (Right Side)
15Side, Burner Box (Left Side)
16Support, Rear
17WP488130 Whirlpool Air Conditioner Nut
18Bracket, Burner
19WP3177991 Whirlpool Screw
20Valve, Burner (Small (1))
21Cover, Shelf
22Bushing, Cover Shelf
23WPL 4449845
24Cover, Panel
25Box, Burner Lower
26Guard, Rear Spill
27WP12990527 Whirlpool Microwave Screw
28Tube, Grill
29Valve, Gas Grill
30Adapter (Plug, Close)
31Harness, Switch Grill
32Module, Grill
33Bracket, Ignitor (Grill)
34Ignitor, Griddle
353400855 Whirlpool Oven Screw
36Log Burner, Grill
37Deflector
38Tray, Drip (Grill)
394456627 Whirlpool Wire Harness
39Miscellaneous
39“42“
39“28“
39WIRING HARNESS PARTS
39Spud Kit
39Harness, Wire (Ignitor 42“)
39Power Cord
39Guard, Spill
