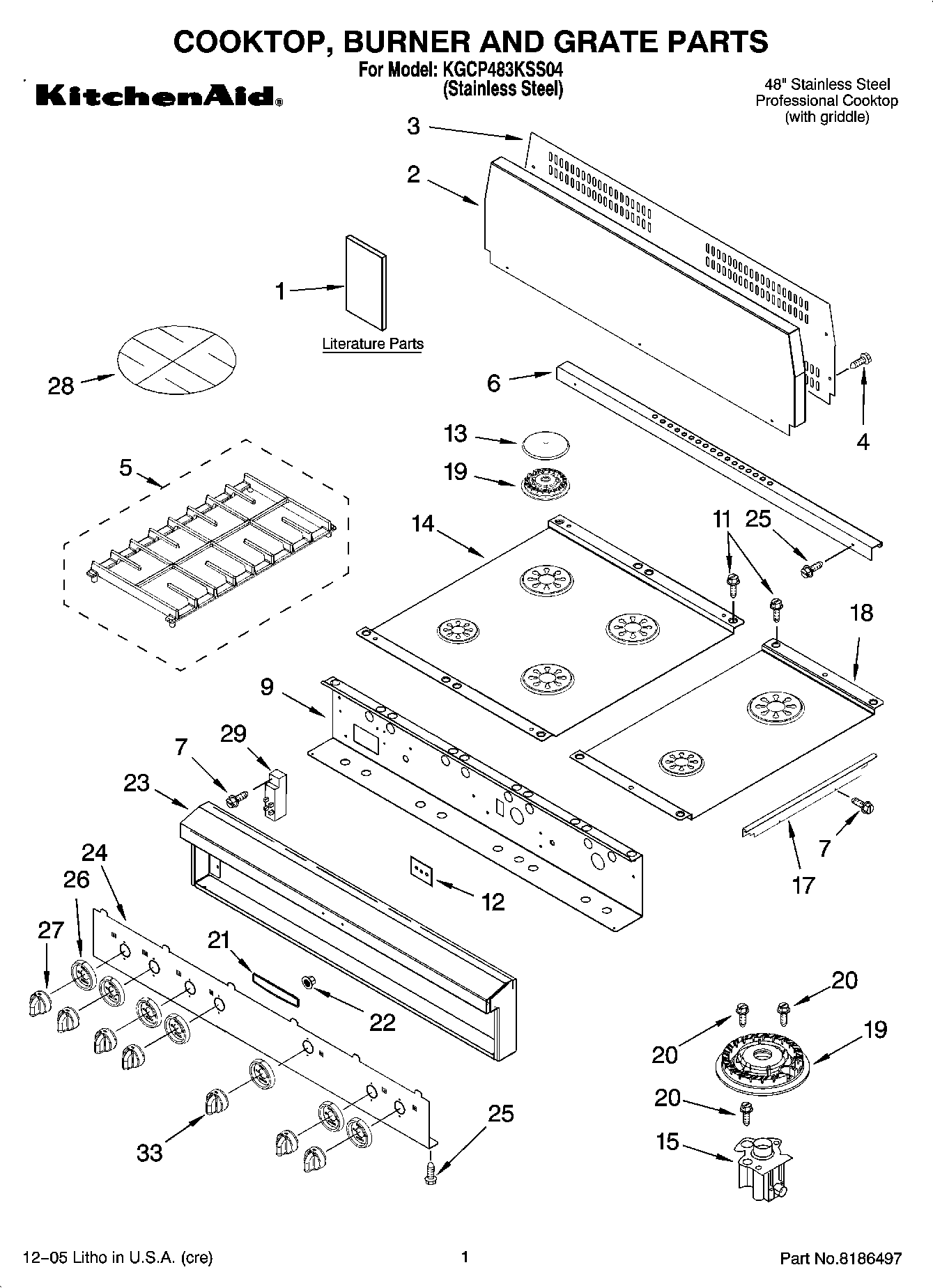

KGCP483KSS04 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Installation Instructions
1	Tech Sheet
1	Use & Care Guide
1	Instructions, LP Conversion
2	Trim, Backsplash
3	Support, Backsplash
4	WP3196557 Whirlpool Screw
5	Grate, Burner (3)
6	Trim, Island
7	WP12990527 Whirlpool Microwave Screw
9	Support, Control Panel
11	Screw
12	W10491984 Whirlpool Switch Seal
13	WP8284669 Whirlpool Burner Cap
13	Cap, Burner ((14K))
14	Cooktop (24“)
15	Orifice Holder (Includes Orific & Ignitor) (Auxi)
15	WPW10155786 Whirlpool Surface Burner Orifice Holder
17	Trim, Side (Right Hand)
17	Trim, Side (Left Hand)
18	Cooktop (12“) (2 Lrg Burners)
18	WP4449743 Whirlpool Screw
19	Burner Head (Turbi)
19	WP4455979 Whirlpool Range Small Burner Head
20	WP3368921 Whirlpool Screw
21	Nameplate (Black)
22	WP2004333 Whirlpool Refrigerator Nut
23	Control Frame
24	Panel, Control
25	SCREW
26	Bezel, Knob
27	WPW10078400 Whirlpool Knob Assembly
28	Plate, Simmer
29	WPW10110486 Whirlpool Spark Module
33	8284743 Whirlpool Knob
