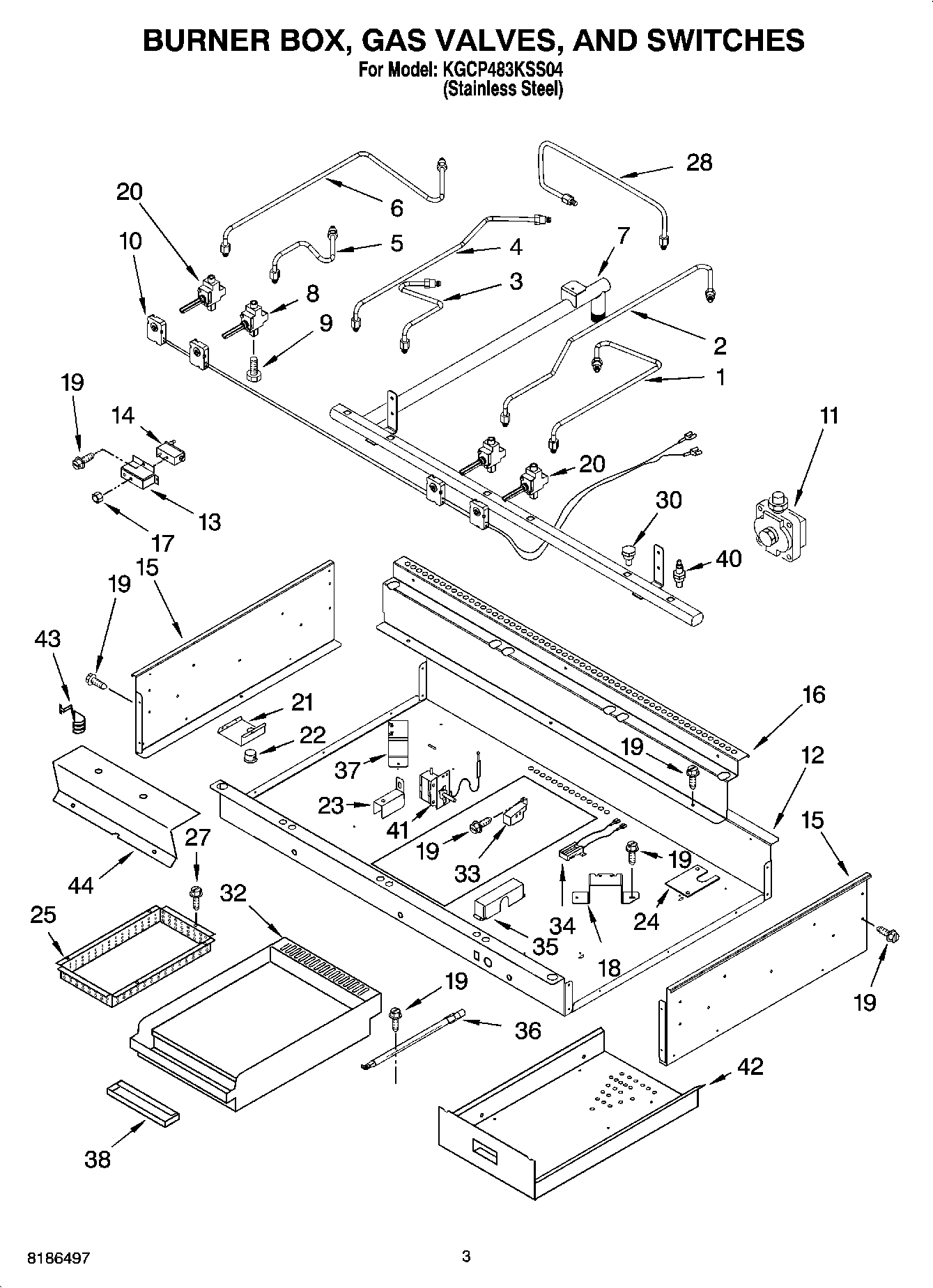

KGCP483KSS04 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Products

Position	Product
	Nut, Tinnerman (2)
	Spud Kit
	Harness, Wire (Ignitor 42“)
	Cleaner, Stainless Steel
	Miscellaneous
	4456627 Whirlpool Wire Harness
	4173634 Whirlpool Bushing
	WIRING HARNESS PARTS
	Power Cord
1	Tubing, Gas Burner – RF
2	Tubing, Gas Burner – RR
3	Tubing, Gas Burner – CF
4	Tubing, Gas
5	Tubing, Gas Burner – CR Burner – LF
6	Tubing, Gas Burner – LR
7	Manifold (Includes Items 9 & 30)
8	Valve, Burner (Bronze)
9	WP3186217 Whirlpool Screw
10	Bushing
10	WP3188425 Whirlpool Seal Switch
11	WP9759091 Whirlpool Regulator
12	Burner Box
13	Bracket
14	Valve, 8284858 Grill (Griddle)
15	Side, Burner Box (Left Side)
15	Side, Burner Box (Right Side)
16	Support, Rear
17	WP488130 Whirlpool Air Conditioner Nut
18	Bracket, Burner
19	WP3177991 Whirlpool Screw
20	WP4456816 Whirlpool Burner Valve
21	Cover, Shelf
22	Bushing, Cover Shelf
23	WPL 4449845
24	Cover, Panel
25	Box, Burner Lower
27	WP12990527 Whirlpool Microwave Screw
28	Tube, Griddle
30	Adapter (Plug, Close)
32	Module, Griddle
33	Bracket, Ignitor
34	Ignitor, Griddle
35	Cover, Burner Spud
36	Log Burner, Griddle
37	Bracket, Thermo
38	Tray, Drip
40	Plug, Manifold (open)
41	Griddle, T-Stat
42	Enclosure, Griddle
43	98005642 Whirlpool Clip
44	Bracket
