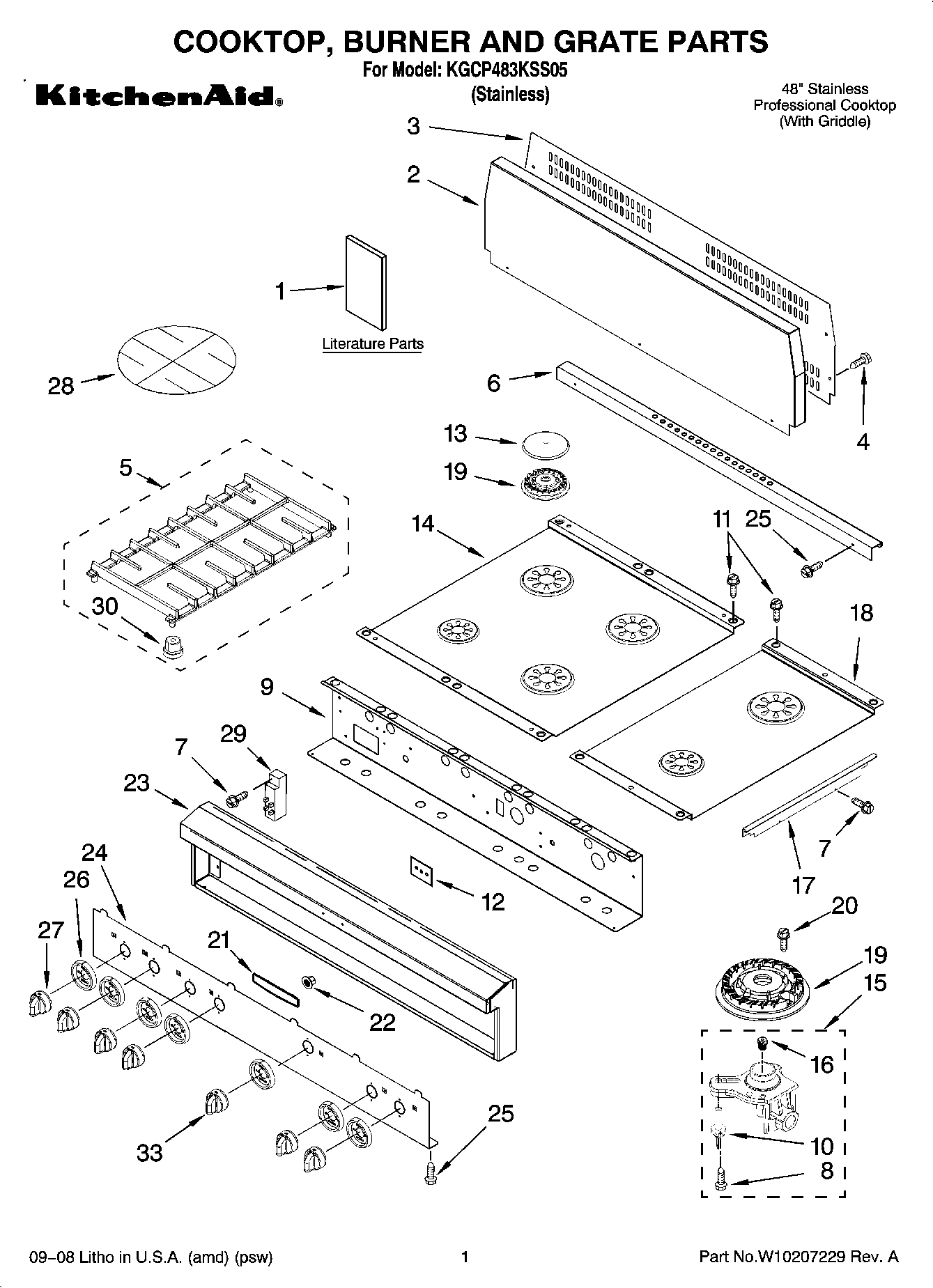

KGCP483KSS05 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Instructions, LP Conversion
1	Use & Care Guide
1	Installation Instructions
1	Tech Sheet
2	BACKSPLASH
3	Support, Backsplash
4	WP3196557 Whirlpool Screw
5	Grate, Burner
6	Trim, Island
7	WP12990527 Whirlpool Microwave Screw
8	WP8273062 Whirlpool Screw
9	Support, Control Panel
10	WP9782116 Whirlpool Surface Igniter
11	Screw
12	W10491984 Whirlpool Switch Seal
13	Cap, Burner ((14K))
13	WP8284669 Whirlpool Burner Cap
14	Cooktop (24“)
15	WPW10128449 Whirlpool Orifice Holder
15	WPW10155786 Whirlpool Surface Burner Orifice Holder
16	Orifice (Turbi (14k))
16	8286473 Whirlpool Oven Orifice
17	Trim, Side (Right)
17	Trim, Side (Left)
18	Cooktop (12“) (2 Lrg Burners)
18	WP4449743 Whirlpool Screw
19	WP4455979 Whirlpool Range Small Burner Head
19	Burner Head (Turbi)
20	WP3368921 Whirlpool Screw
21	Nameplate (Black)
22	WP2004333 Whirlpool Refrigerator Nut
23	Control Frame
24	Panel, Control
25	SCREW
26	Bezel, Knob
27	WPW10078400 Whirlpool Knob Assembly
28	Plate, Simmer
29	WPW10110486 Whirlpool Spark Module
30	W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
33	8284743 Whirlpool Knob
