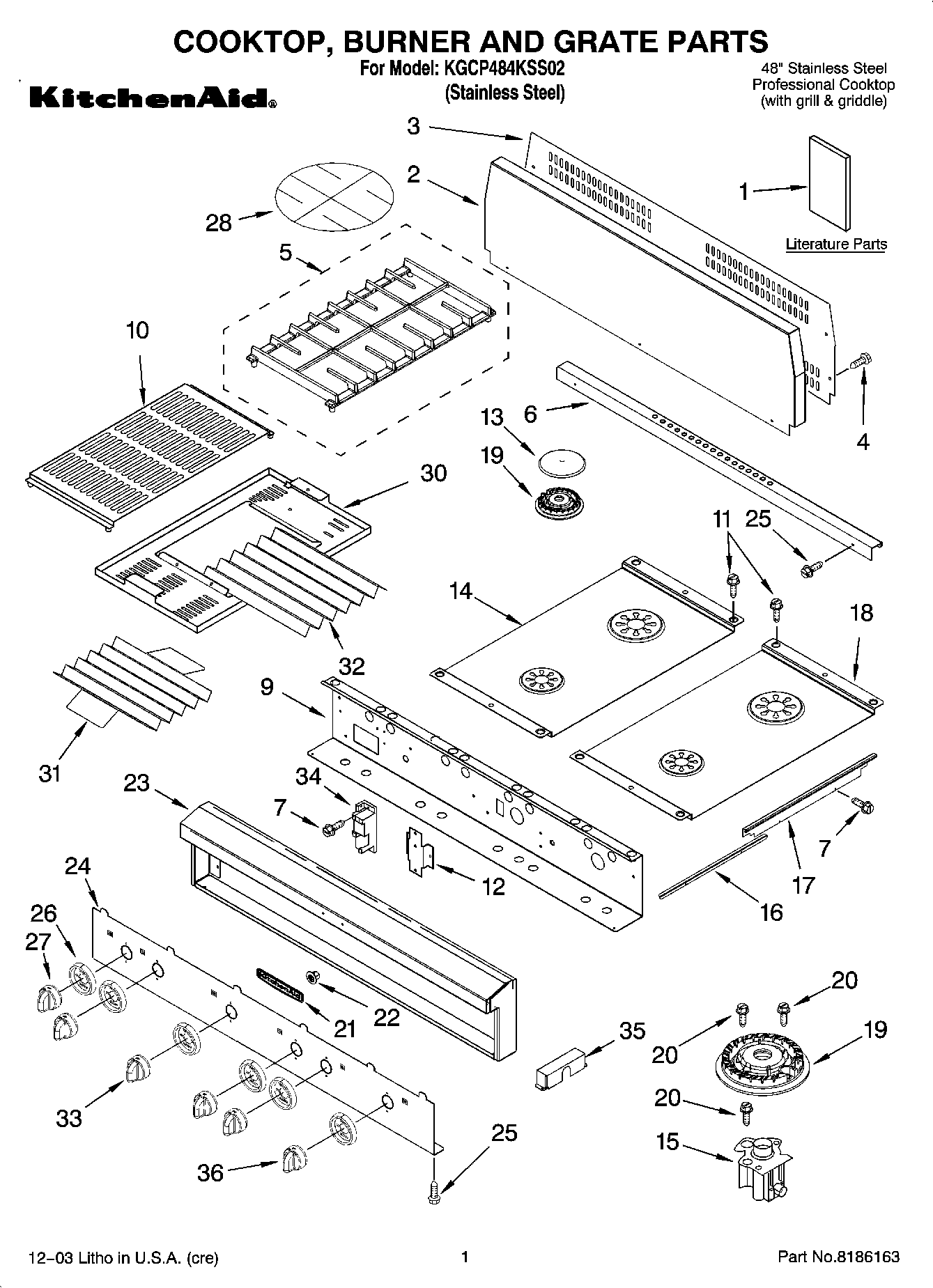

KGCP484KSS02 01 – COOKTOP, BURNER AND GRATE PARTS

KGCP484KSS02 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCP484KSS02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Wiring Diagram
1Literature Parts (Instructions, LP Conversion)
2Trim, Backsplash
3Support, Backsplash
4WP3196557 Whirlpool Screw
5Grate, Burner
6Trim, Island
7WP12990527 Whirlpool Microwave Screw
9Support, Control Panel
10Grate, Grill
11Screw
12Bracket, Spark Module
13WP8284669 Whirlpool Burner Cap
13Cap, Burner ((14K))
14Cooktop (12“) (2 Lg Burners)
15Orifice Holder (Includes Orific & Ignitor) (Auxi)
15WPW10155786 Whirlpool Surface Burner Orifice Holder
16Support Rail
17Trim, Side (Right Hand)
17Trim, Side (Left Hand)
18Cooktop (12“)
19WP4455979 Whirlpool Range Small Burner Head
19Burner Head (Turbi)
20WP3368921 Whirlpool Screw
21Nameplate (Black)
22WP2004333 Whirlpool Refrigerator Nut
23Control Frame
24Panel, Control
25SCREW
26Bezel, Knob
27WPW10078400 Whirlpool Knob Assembly
28Plate, Simmer
30Frame, Wave Tray
31Plate, Wave
32WP3177991 Whirlpool Screw
32Plate, Wave tray
33Knob, Grill
34Module Spark Reignition
35Cover, Burner Spud
368284743 Whirlpool Knob
