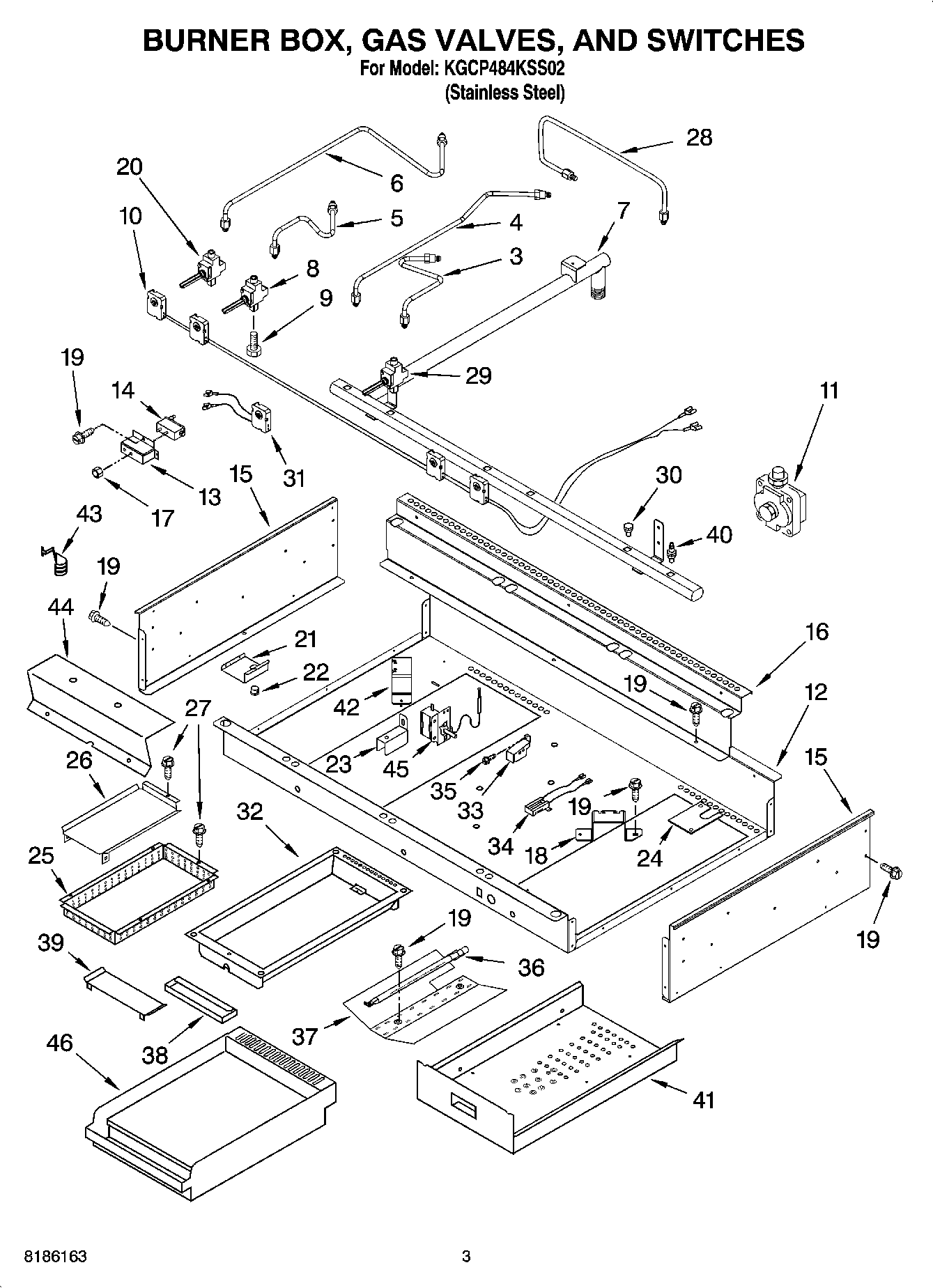

KGCP484KSS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
3Tubing, Gas Burner – CF
4Tubing, Gas
5Tubing, Gas Burner – CR Burner – LF
6Tubing, Gas Burner – LR
7Manifold (Includes Items 9 & 30)
8Valve, Burner (Silver)
9WP3186217 Whirlpool Screw
10WP3188425 Whirlpool Seal Switch
10Burner Switch & Harness Assembly
11WP9759091 Whirlpool Regulator
12Burner Box
13Bracket, 8284795 Grill Valve (Griddle Valve)
14Valve, 8284858 Grill (Griddle)
15Side, Burner Box (Left Side)
15Side, Burner Box (Right Side)
16Support, Rear
17WP488130 Whirlpool Air Conditioner Nut
18Bracket, Burner
19WP3177991 Whirlpool Screw
20Valve, Burner (Small (1))
21Cover, Shelf
22Bushing, Cover Shelf
23WPL 4449845
24Cover, Panel
25Box, Burner Lower
26Guard, Rear Spill
27WP12990527 Whirlpool Microwave Screw
28Tube, 8284790 Grill (Griddle)
29Valve, Gas Grill
30Adapter (Plug, Close)
31Harness, Switch Grill
32Module, Grill
33Bracket, Ignitor (Grill)
33Bracket, Ignitor
34Ignitor, Griddle
353400855 Whirlpool Oven Screw
36Log Burner, Griddle
37Deflector
38Tray, Drip
38Tray, Drip (Grill)
39Guard, Spill
40Plug, Manifold (open)
41Enclosure, Griddle
42Bracket, Thermo
4398005642 Whirlpool Clip
44Bracket
45Griddle, T-Stat
46Bushing
46WPL ARI87553A7
46W10392007 Whirlpool Power Cord
46Spud Kit
464456627 Whirlpool Wire Harness
46Module, Griddle
46WPL 8285048
46Harness, Spark Jmp Com
46Harness, Wire Jumper (black)
46WPL ARI87554A5
