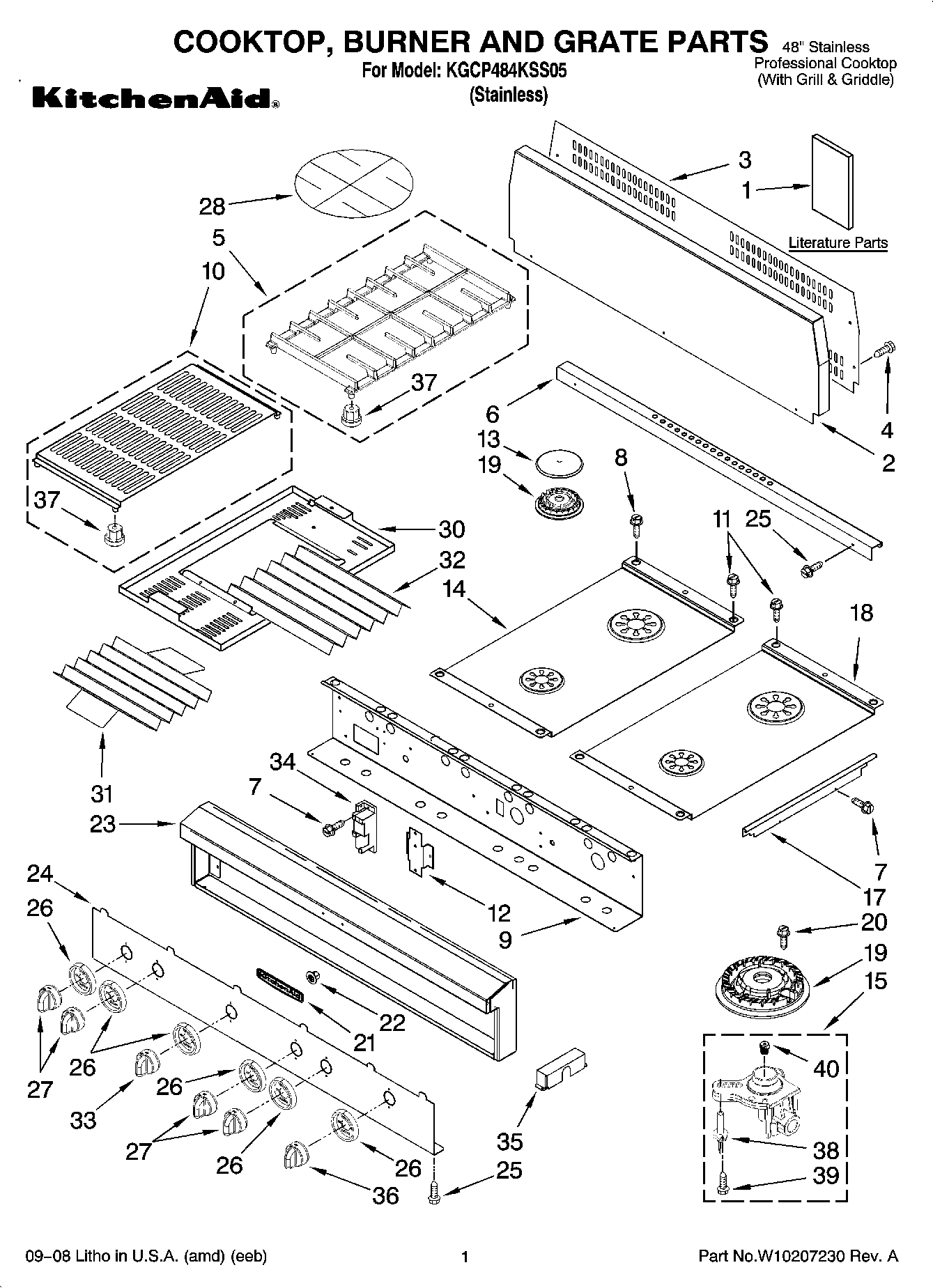

KGCP484KSS05 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Instructions, LP Conversion
1	Wiring Diagram
1	Use & Care Guide
1	Installation Instructions
2	BACKSPLASH
3	Support, Backsplash
4	WP3196557 Whirlpool Screw
5	Grate, Burner
6	Trim, Island
7	WP12990527 Whirlpool Microwave Screw
8	WP4449743 Whirlpool Screw
9	Support, Control Panel
10	Grate, Grill
11	Screw
12	Bracket, Spark Module
13	Cap, Burner ((14K))
13	WP8284669 Whirlpool Burner Cap
14	Cooktop (12“) (Sm & Lg Burners)
15	WPW10155786 Whirlpool Surface Burner Orifice Holder
15	WPW10128449 Whirlpool Orifice Holder
17	Trim, Side (Right)
17	Trim, Side (Left)
18	Cooktop (12“) (2 Lrg Burners)
19	WP4455979 Whirlpool Range Small Burner Head
19	Burner Head (Turbi)
20	WP3368921 Whirlpool Screw
21	Nameplate (Black)
22	WP2004333 Whirlpool Refrigerator Nut
23	Control Frame
24	Panel, Control
25	SCREW
26	Bezel, Knob
27	WPW10078400 Whirlpool Knob Assembly
28	Plate, Simmer
30	Frame, Wave Tray
31	Plate, Wave
32	Plate, Wave Tray
32	WP3177991 Whirlpool Screw
33	Knob, Grill
34	Module Spark Reignition
35	Cover, Burner Spud
36	8284743 Whirlpool Knob
37	W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
38	WP9782116 Whirlpool Surface Igniter
39	WP8273062 Whirlpool Screw
40	8286473 Whirlpool Oven Orifice
40	Orifice (Turbi (14k))
