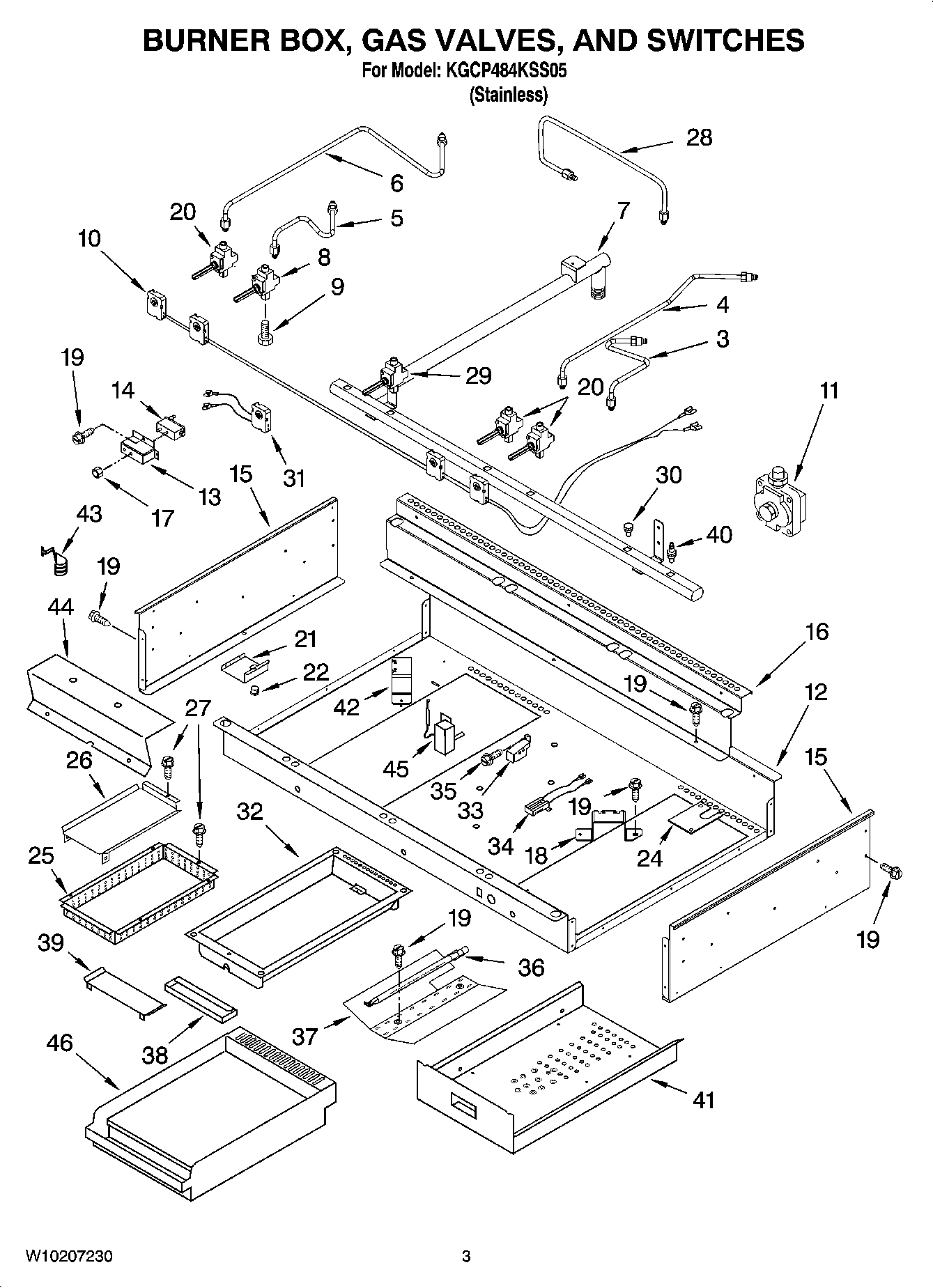

KGCP484KSS05 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Products

Position	Product
	W10392007 Whirlpool Power Cord
	Harness, Jumper Valve
	Harness, Wire Jumper (black)
	Harness, Spark Jmp Com
	4456627 Whirlpool Wire Harness
	Spud Kit
	Bushing
	W10491984 Whirlpool Switch Seal
	WPL 8285048
	4173634 Whirlpool Bushing
	WPL ARI87560A7
	WPL ARI87559A3
3	Tubing, Gas Burner – CF
4	Tubing, Gas
5	Tubing, Gas Burner – CR Burner – LF
6	Tubing, Gas Burner – LR
7	Manifold (Includes Items 9 & 30)
8	WP4456816 Whirlpool Burner Valve
9	WP3186217 Whirlpool Screw
10	Burner Switch & Harness Assembly
10	WP3188425 Whirlpool Seal Switch
11	WP9759091 Whirlpool Regulator
12	Burner Box
13	Bracket
13	Bracket, Grill Valve
14	Valve, Grill
14	Valve, 8284858 Grill (Griddle)
15	Side, Burner Box (Left Side)
15	Side, Burner Box (Right Side)
16	Support, Rear
17	WP488130 Whirlpool Air Conditioner Nut
18	Bracket, Burner
19	WP3177991 Whirlpool Screw
20	Valve, Burner (Bronze)
21	Cover, Shelf
22	Bushing, Cover Shelf
24	Cover, Panel
25	Box, Burner Lower
26	Guard, Rear Spill
27	WP12990527 Whirlpool Microwave Screw
28	Tube, Grill
28	Tube, 8284790 Grill (Griddle)
29	Valve, Gas Grill
30	Adapter (Plug, Close)
31	Harness, Switch Grill
32	Module, Grill
33	Bracket, Ignitor (Griddle)
33	Bracket, Ignitor (Grill)
34	Ignitor, Griddle
35	3400855 Whirlpool Oven Screw
36	Log Burner, Grill
36	Log Burner, Griddle
37	Deflector
38	Tray, Drip (Grill)
38	Tray, Drip (Griddle)
39	Guard, Front Spill
40	Plug, Manifold (open)
41	Enclosure, Griddle
42	Bracket, Thermo
43	98005642 Whirlpool Clip
44	Bracket, Thermostat Bulb
45	Griddle, T-Stat
46	Module, Griddle
