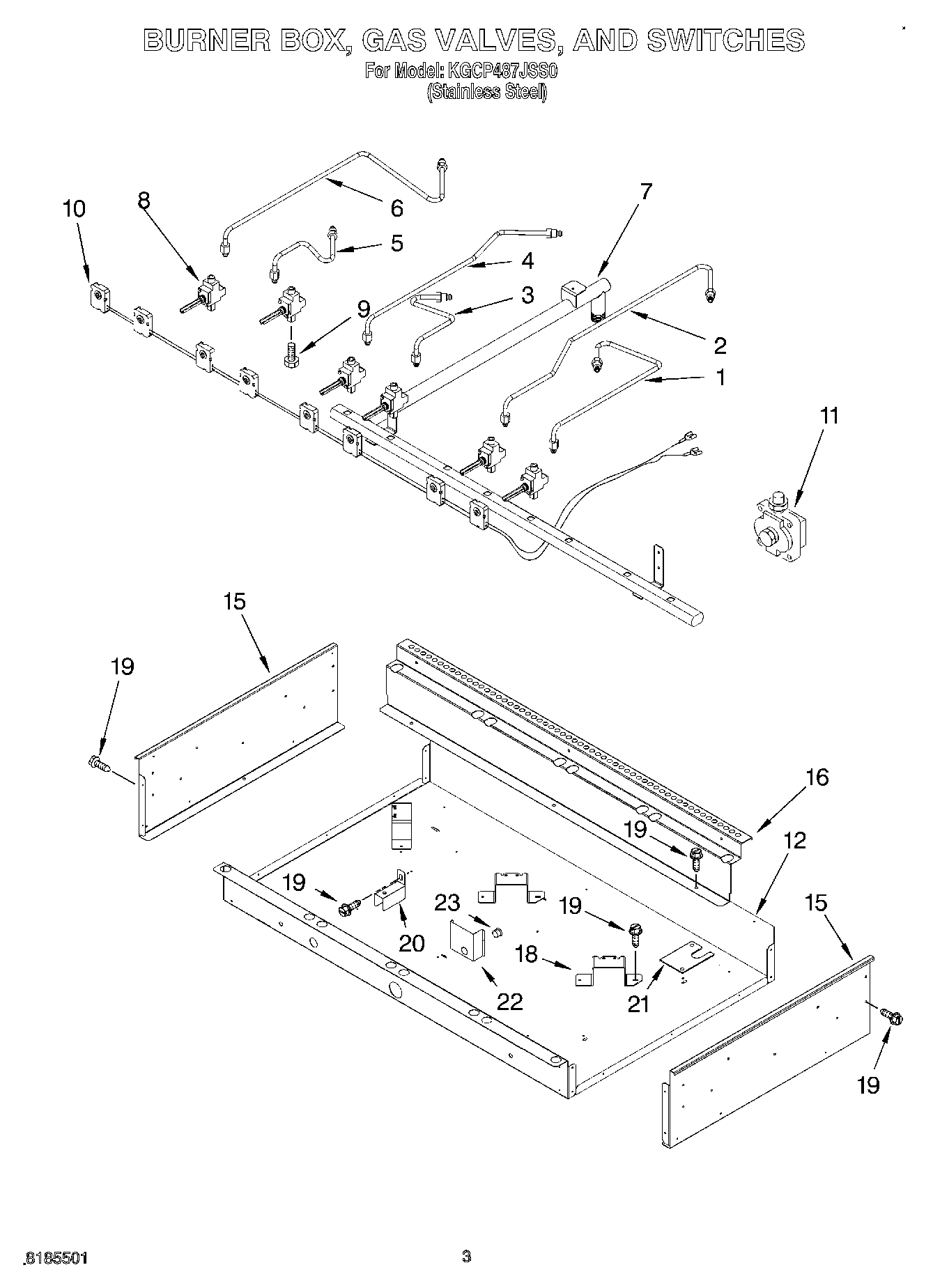

KGCP487JSS0 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1Tubing, Gas Burner – RF
2Tubing, Gas Burner – RR
3Tubing, Gas Burner – CF
4Tubing, Gas
5Tubing, Gas Burner – CR Burner – LF
6Tubing, Gas Burner – LR
7Manifold
8Valve, Burner (Small (1))
8Valve, Burner (Silver)
9Bolt, Gas Valve
10Burner Switch & Harness Assembly
11WP9759091 Whirlpool Regulator
12Burner Box
15Side, Burner Box (Left Side)
15Side, Burner Box (Right Side)
16Support, Rear
18Bracket, Burner
19WP3177991 Whirlpool Screw
20WPL 4449845
21Cover, Manifold Slot
22Cover, Shelf
23Harness, Jumper
23W10392007 Whirlpool Power Cord
23Bushing
23Bushing, Cover Shelf
23Harness,
23L.P. Orifice Spud Pack
