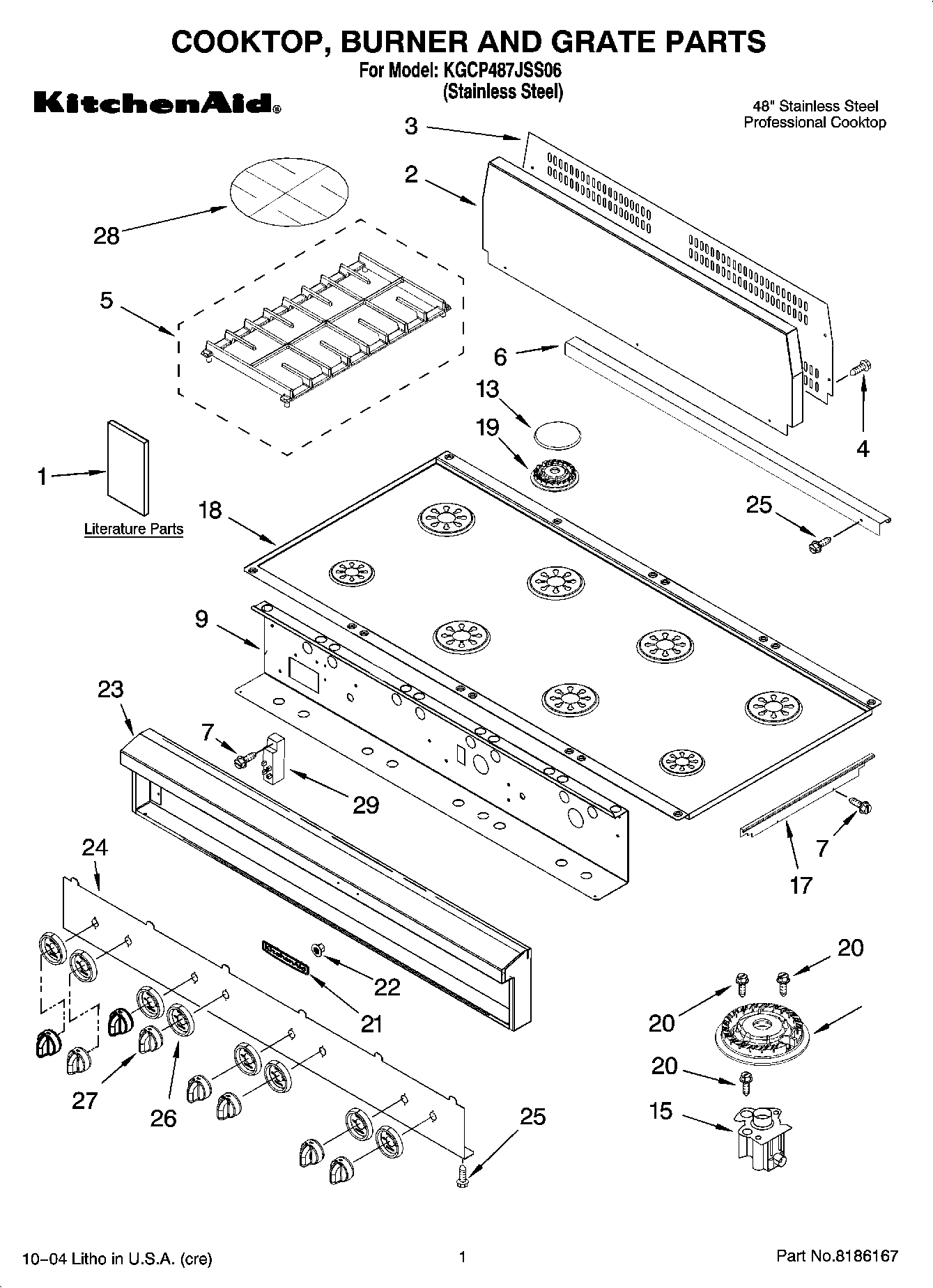

KGCP487JSS06 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Instructions, Island Trim
1	Instructions, LP Conversion
1	Wiring Diagram
1	Use & Care Guide
1	Tech Sheet
2	Backsplash
3	Support, Backsplash
4	WP3196557 Whirlpool Screw
5	Grate, Burner
6	Trim, Island
7	WP3177991 Whirlpool Screw
9	Support, Control Panel
13	WP8284669 Whirlpool Burner Cap
13	Cap, Burner ((14K))
15	WPW10155786 Whirlpool Surface Burner Orifice Holder
15	Orifice Holder (Includes Orific & Ignitor) (Auxi)
17	Trim, Side (Right Hand)
17	Trim, Side (Left Hand)
18	Cooktop, Black
18	Screw
19	Burner Head (Turbi)
19	WP4455979 Whirlpool Range Small Burner Head
20	WP3368921 Whirlpool Screw
21	Nameplate (Black)
22	WP2004333 Whirlpool Refrigerator Nut
23	Control Frame
24	Panel, Control
25	SCREW
26	Bezel, Knob
27	WPW10078400 Whirlpool Knob Assembly
28	Plate, Simmer
29	WP12990527 Whirlpool Microwave Screw
29	WPW10110491 Whirlpool Spark Module
