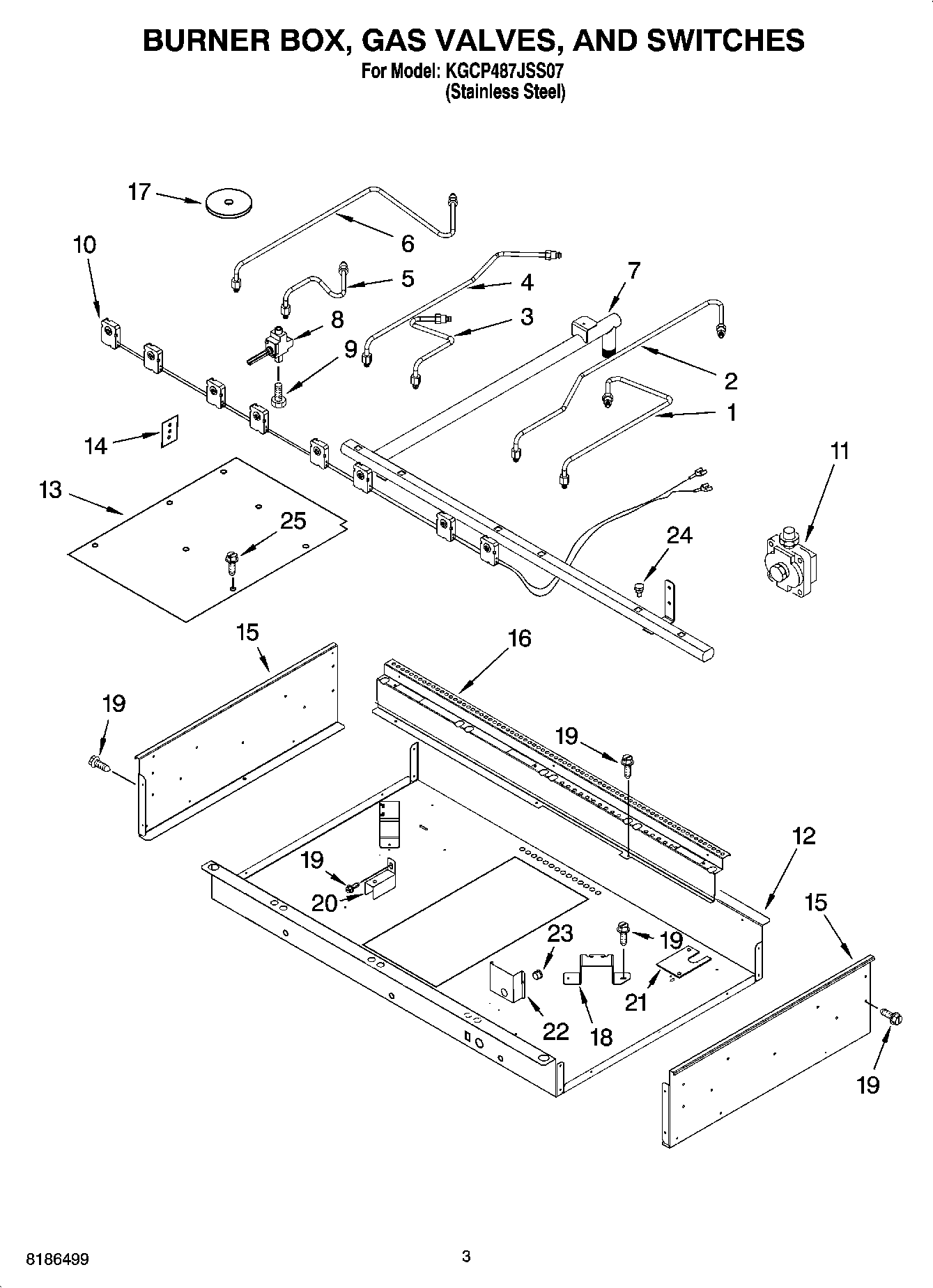

KGCP487JSS07 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Products

Position	Product
	W10392007 Whirlpool Power Cord
	4456627 Whirlpool Wire Harness
	Spud Kit
	Harness, Wire (Ignitor 42“)
	Bushing
	Cleaner, Stainless Steel
	Miscellaneous
	WIRING HARNESS PARTS
	Harness, Wire Jumper
1	Tubing, Gas Burner – RF
2	Tubing, Gas Burner – RR
3	Tubing, Gas Burner – CF
4	Tubing, Gas
5	Tubing, Gas Burner – CR Burner – LF
6	Tubing, Gas Burner – LR
7	Manifold (Includes Items 9 & 30)
8	WP4456816 Whirlpool Burner Valve
8	Valve, Burner (Bronze)
9	WP3186217 Whirlpool Screw
10	Burner Switch & Harness Assembly
11	WP9759091 Whirlpool Regulator
12	Burner Box
13	Plate, Burner Holder
14	W10491984 Whirlpool Switch Seal
15	Side, Burner Box (Left Side)
15	Side, Burner Box (Right Side)
16	Support, Rear
17	WP3188425 Whirlpool Seal Switch
18	Bracket, Burner
19	WP3177991 Whirlpool Screw
20	WPL 4449845
21	Cover, Panel
22	Cover, Shelf
23	Bushing, Cover Shelf
24	Adapter (Plug, Close)
25	WP12990527 Whirlpool Microwave Screw
