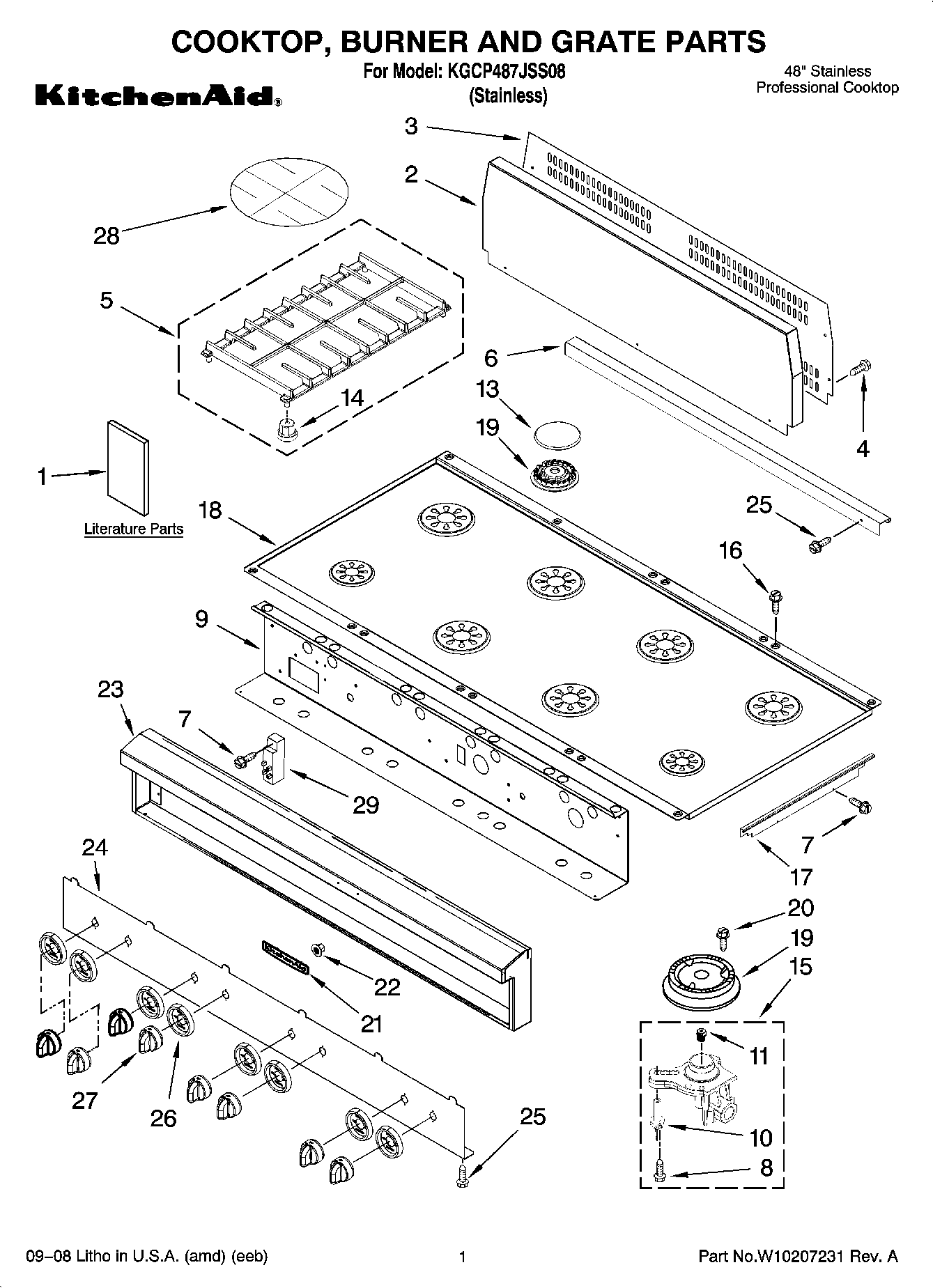

KGCP487JSS08 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Installation Instructions
1	Use & Care Guide
1	Instructions, LP Conversion
2	Backsplash
3	Support, Backsplash
4	WP3196557 Whirlpool Screw
5	Grate, Burner
6	Trim, Island
7	WP3177991 Whirlpool Screw
8	WP8273062 Whirlpool Screw
9	Support, Control Panel
10	WP9782116 Whirlpool Surface Igniter
11	Orifice (Turbi (14k))
11	8286473 Whirlpool Oven Orifice
13	WP8284669 Whirlpool Burner Cap
13	Cap, Burner ((14K))
14	W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
15	WPW10128449 Whirlpool Orifice Holder
15	WPW10155786 Whirlpool Surface Burner Orifice Holder
16	Screw
17	Trim, Side (Left)
17	Trim, Side (Right)
18	Cooktop, Black
19	Burner Head (Turbi)
19	WP4455979 Whirlpool Range Small Burner Head
20	WP3368921 Whirlpool Screw
21	Nameplate (Black)
22	WP2004333 Whirlpool Refrigerator Nut
23	Control Frame
24	Panel, Control
25	SCREW
26	Bezel, Knob
27	WPW10078400 Whirlpool Knob Assembly
28	Plate, Simmer
29	WPW10110491 Whirlpool Spark Module
