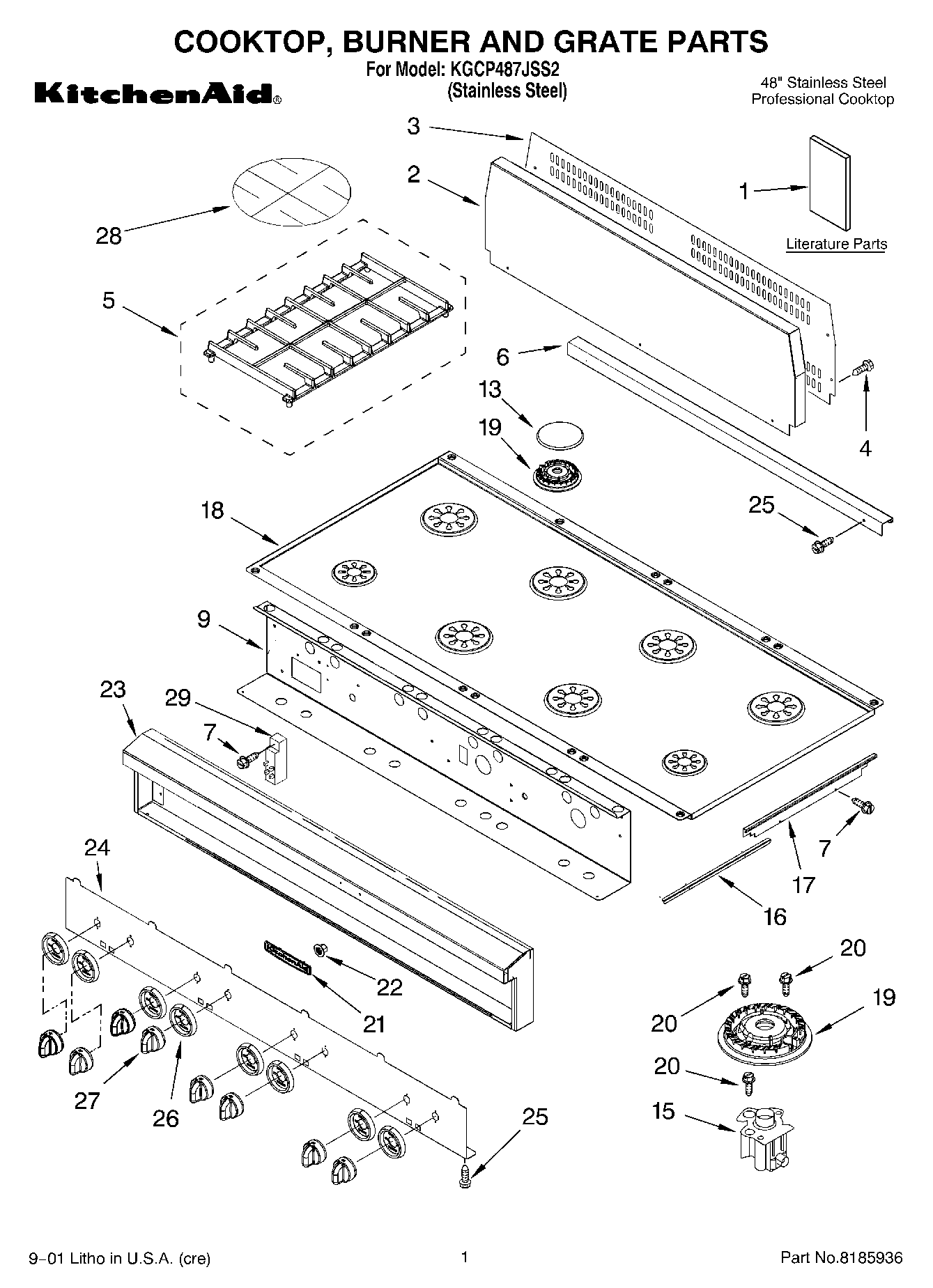

KGCP487JSS2 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Literature Parts (Wiring Diagram)
1Literature Parts (Instructions, Island Trim)
1Literature Parts (Installation Instructions)
1Literature Parts (Instructions, LP Conversion)
1Literature Parts (Use & Care Guide)
2Trim, Backsplash
3Support, Backsplash
4WP3196557 Whirlpool Screw
5Grate, Burner
6Trim, Island
7WP3177991 Whirlpool Screw
9Support, Control Panel
13Cap, Burner ((14K))
13WP8284669 Whirlpool Burner Cap
15Orifice Holder (Turbi)
15Holder, Orifice (Includes 13 & 14) (RF 6K)
16Rail, Support RH & LH
17Trim, Side (Left Hand)
17Trim, Side (Right Hand)
18Screw
18Cooktop, Black
19Burner Head (Turbi)
19WP4455979 Whirlpool Range Small Burner Head
20WP3368921 Whirlpool Screw
21Nameplate (Black)
22WP2004333 Whirlpool Refrigerator Nut
23Control Frame
24Panel, Control
25SCREW
26Bezel, Knob
27WPW10078400 Whirlpool Knob Assembly
28Plate, Simmer
29WPW10110491 Whirlpool Spark Module
29WP12990527 Whirlpool Microwave Screw
