KGCP487JSS2 02 – BURNER BOX, GAS VALVES, AND SWITCHES

KGCP487JSS2 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

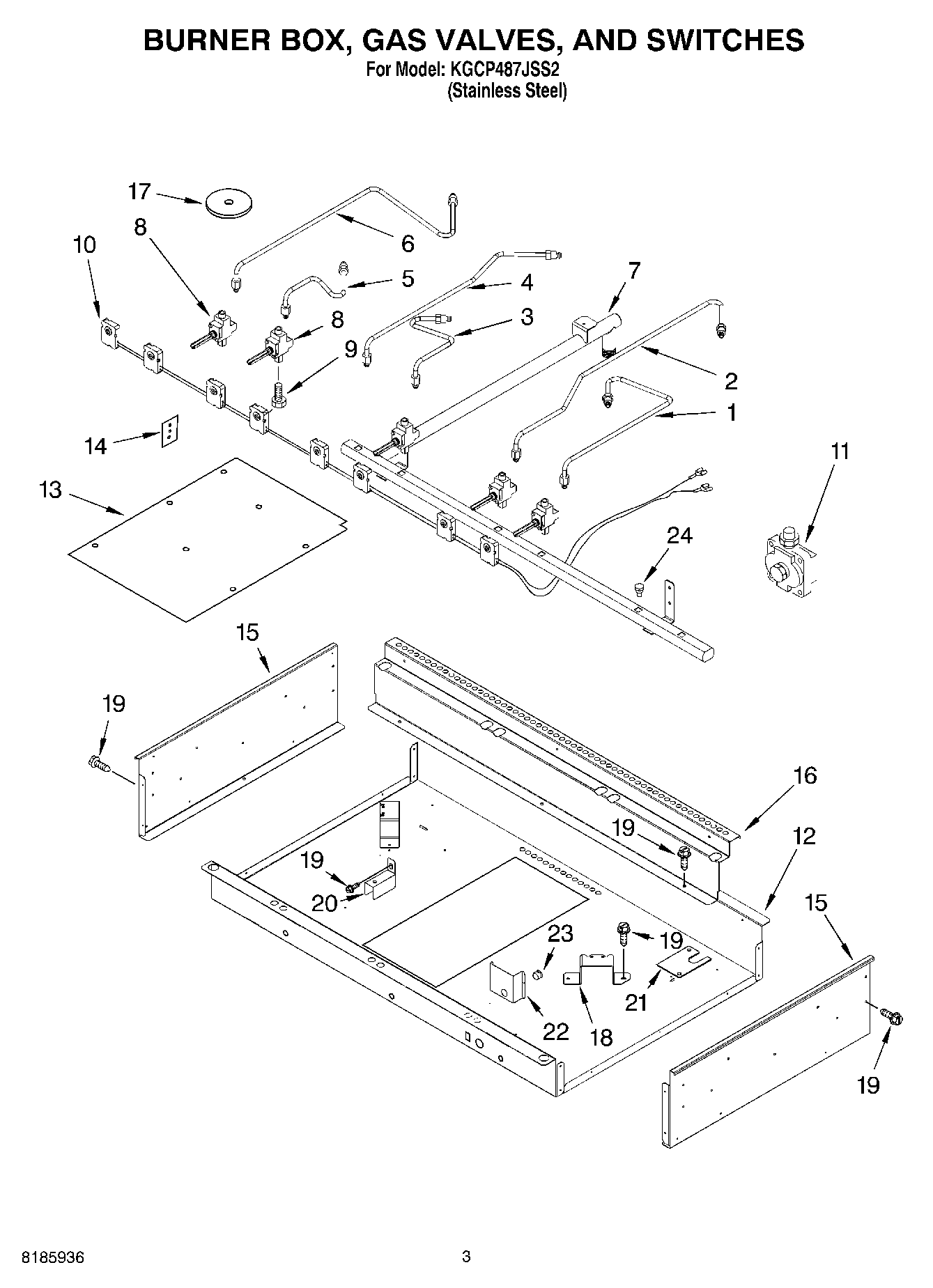

KGCP487JSS2 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1Tubing, Gas Burner – RF
2Tubing, Gas Burner – RR
3Tubing, Gas Burner – CF
4Tubing, Gas
5Tubing, Gas Burner – CR Burner – LF
6Tubing, Gas Burner – LR
7Manifold (Includes Items 9 & 30)
8Valve, Burner (Small (1))
8Valve, Burner (Silver)
9Bolt (Gas Valve)
10Burner Switch & Harness Assembly
11WP9759091 Whirlpool Regulator
12Burner Box
13Plate, Burner Holder
13WP12990527 Whirlpool Microwave Screw
14W10491984 Whirlpool Switch Seal
15Side, Burner Box (Left Hand)
15Side, Burner Box (Right Hand)
16Support, Rear
17WP3188425 Whirlpool Seal Switch
18Bracket, Burner
19WP3177991 Whirlpool Screw
20WPL 4449845
21Cover, Manifold Slot
22Cover, Shelf
23Bushing, Cover Shelf
24WPL 8284772
24Adapter (Plug, Close)
24Spud Kit
24Bushing
24W10392007 Whirlpool Power Cord
24Harness, Wire Jumper
24Harness, Wire Ignitor (Yellow)
