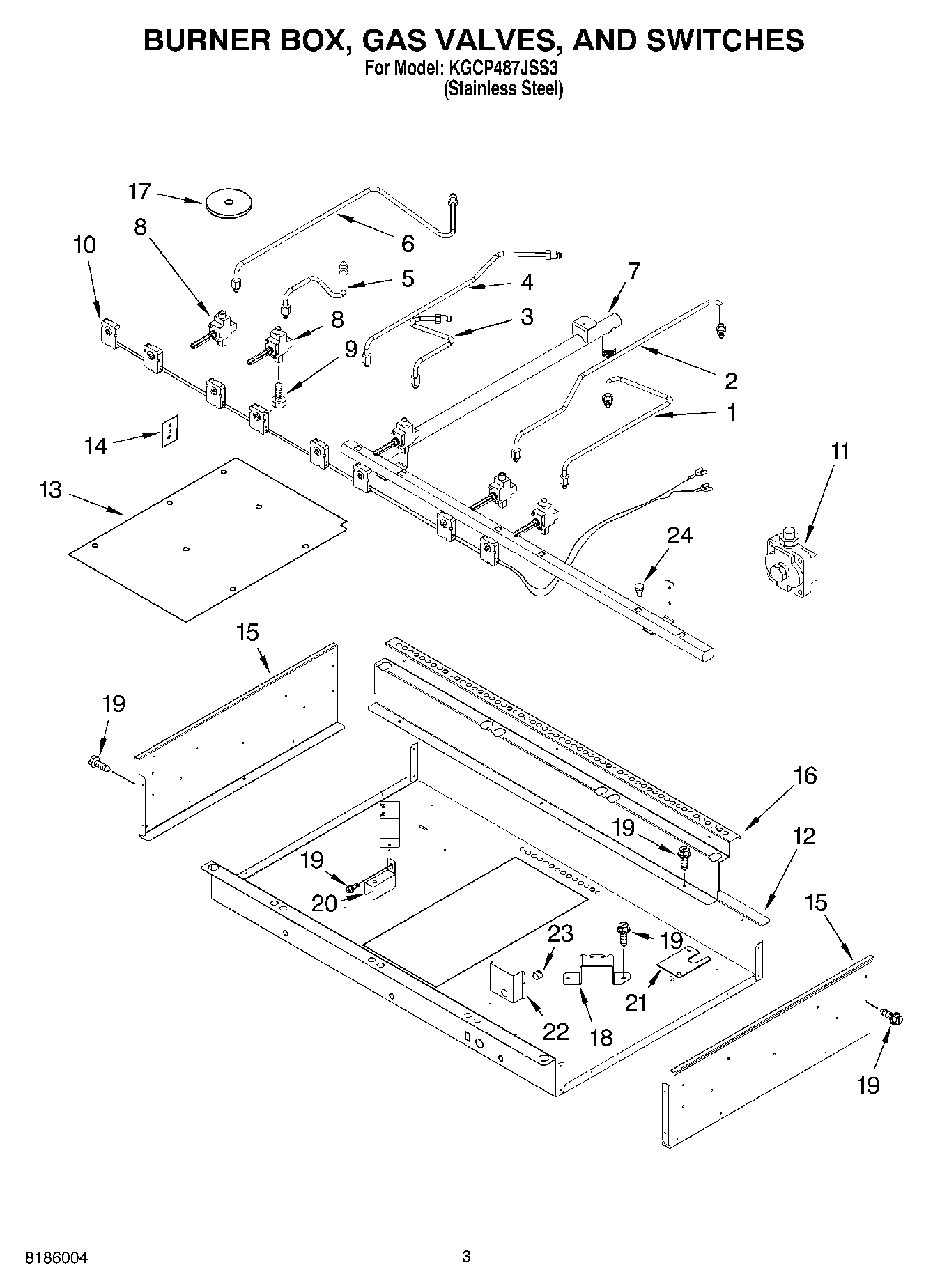

KGCP487JSS3 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1Tubing, Gas Burner – RF
2Tubing, Gas Burner – RR
3Tubing, Gas Burner – CF
4Tubing, Gas
5Tubing, Gas Burner – CR Burner – LF
6Tubing, Gas Burner – LR
7Manifold (Includes Items 9 & 30)
8Valve, Burner (Small (1))
8Valve, Burner (Silver)
9Bolt (Gas Valve)
10Burner Switch & Harness Assembly
11WP9759091 Whirlpool Regulator
12Burner Box
13WP12990527 Whirlpool Microwave Screw
13Plate, Burner Holder
14W10491984 Whirlpool Switch Seal
15Side, Burner Box (Left Hand)
15Side, Burner Box (Right Hand)
16Support, Rear
17WP3188425 Whirlpool Seal Switch
18Bracket, Burner
19WP3177991 Whirlpool Screw
20WPL 4449845
21Cover, Manifold Slot
22Cover, Shelf
23Bushing, Cover Shelf
24Conversion Kit
24(yellow)
24W10392007 Whirlpool Power Cord
2428“
24POLISH
24Bushing
24Spud Kit
24Adapter (Plug, Close)
24Harness, Wire Jumper
