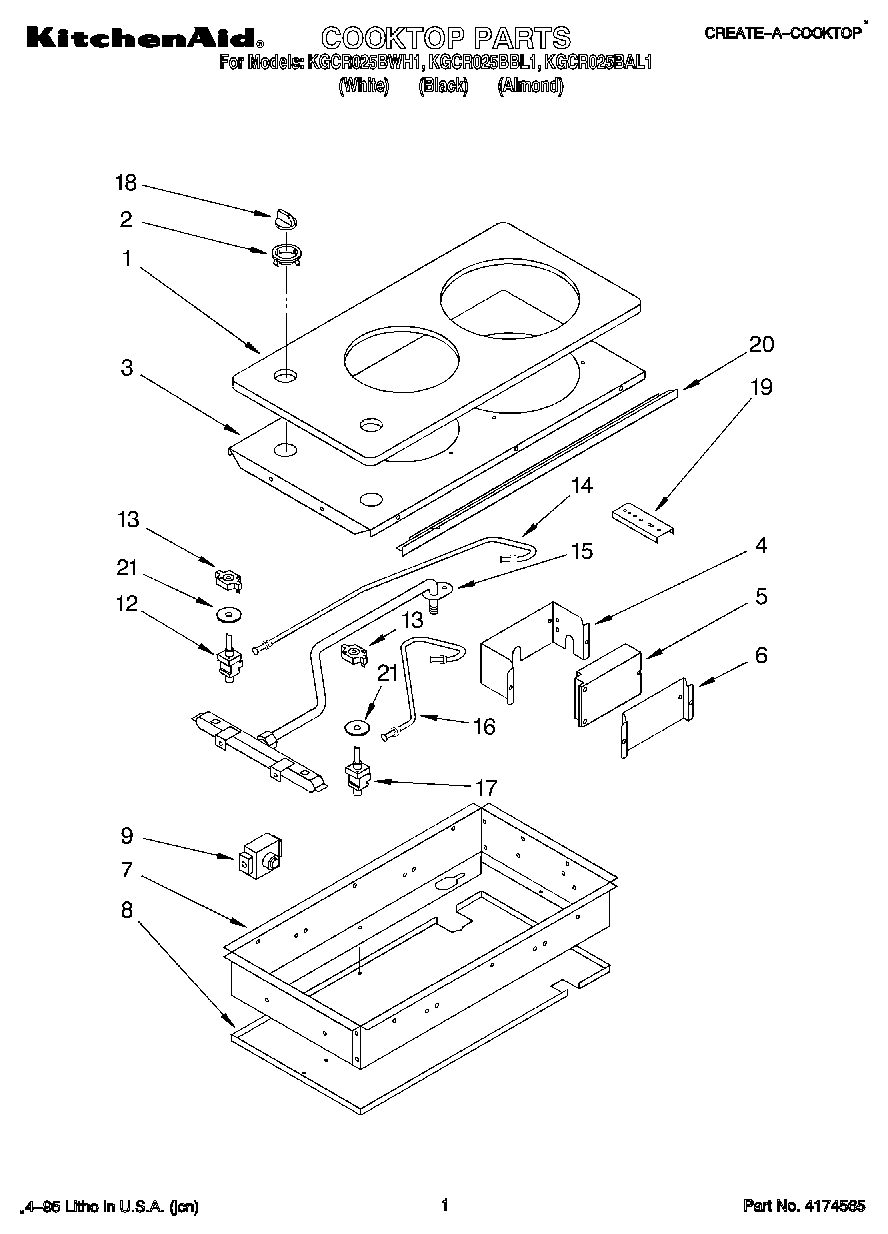

KGCR025BAL1 01 – COOKTOP PARTS

Products

Position	Product
	Tape, Foam (67“)
	Hardware Assembly
	Installation Instructions
	Power Cord
	Use & Care Guide
1	Cooktop, Glass (White)
1	Cooktop, Glass (Almond)
1	Cooktop, Glass (Black)
2	W10854242 Whirlpool Grommet
2	WP3180081 Whirlpool Grommet
2	W10854241 Whirlpool Grommet
3	Cover, Top Burner Box
4	Shield, Heat Spark Module
5	Module, Spark
6	Bracket, Spark Module
7	Box, Burner (Left Hand Side)
7	Box, Burner (Right Hand Side)
8	Cover, Bottom Burner Box
8	SCREW
9	Regulator, Pressure
12	Valve, Rapid
13	Switch, Ignition
14	Tube Assembly Rear Burner
15	Manifold Pipe, Round
16	Tube Assembly Front Burner
17	Bolt, Valve
17	Valve, Semi Rapid
18	WP3182569 Whirlpool Knob
18	WP3182568 Whirlpool Control Knob
18	WP3182567 Whirlpool Oven Knob
19	Screw
19	Nut, Tinnerman (2)
19	WP488729 Whirlpool Refrigerator Door Screw
19	8186533 Whirlpool Hardware
20	Trim, Extrusion (Almond)
20	Trim, Extrusion (White)
20	Trim, Extrusion (Black)
21	WP3188425 Whirlpool Seal Switch
