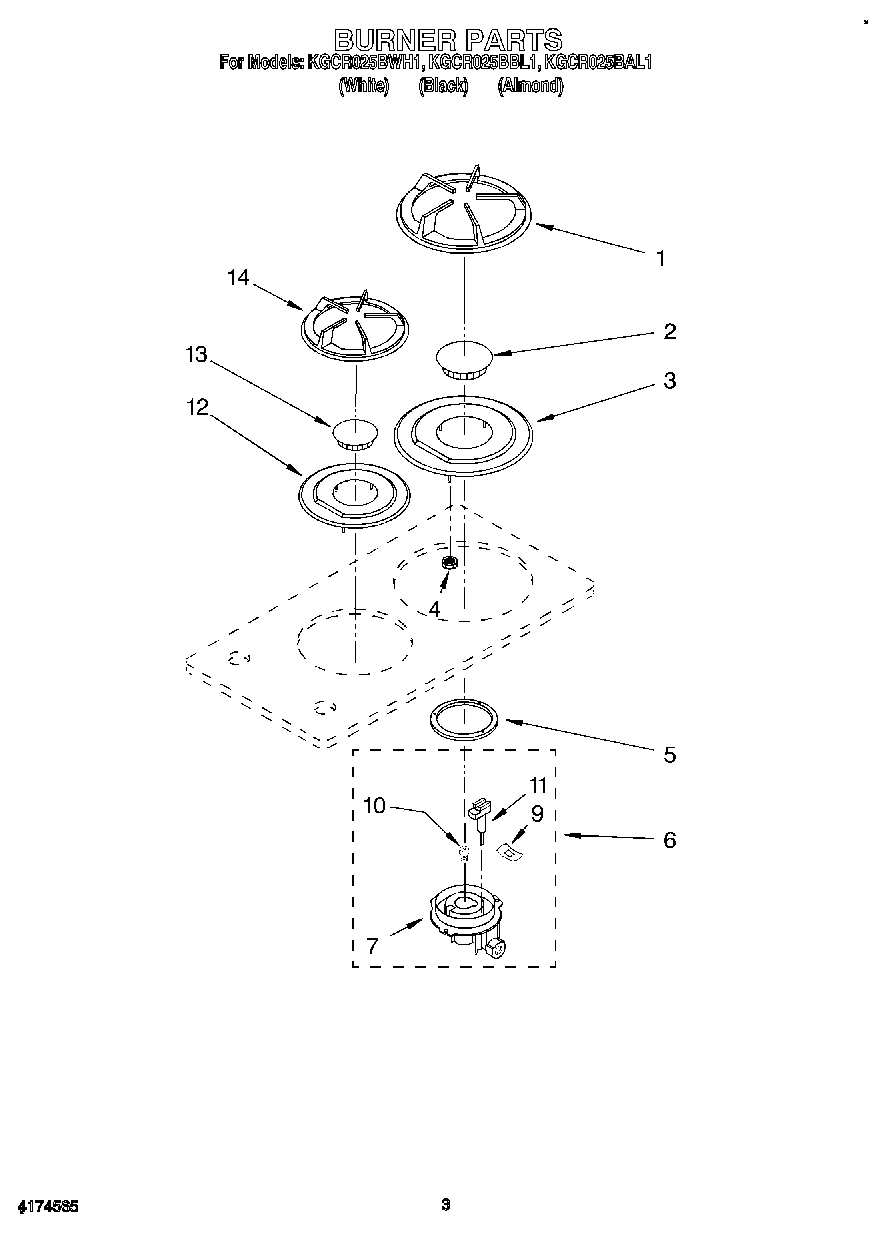

KGCR025BAL1 02 – BURNER PARTS

Products

Position	Product
1	Grate, Large Burner (Black Model)
1	Grate, Large Burner (Almond Model)
1	Grate, Large Burner (White Model)
2	Cap, Rapid Burner Large (2) (Black)
2	Cap, Rapid Burner Large (2) (White)
2	Cap, Rapid Burner Large (2) (Almond)
3	Bezel, Cooktop (Large) (White)
3	Bezel, Cooktop (Large) (Black)
3	Bezel, Cooktop (Large) (Almond (Includes Illus. 5 and 7)
4	Nut (4)
5	Gasket, Burner (Small)
5	Gasket, Burner (Large)
6	Sealed Gas Burner Kit (Small Burner)
6	Sealed Gas Burner Kit (Large Burner)
7	Burner, Sealed (Large (Includes Orifice))
7	Burner, Sealed (Small)
9	Nut
10	Orifice, Burner (Large Burner)
10	Orifice, Burner (Small Burner)
11	Electrode
12	Bezel, Cooktop (Small) (Black)
12	Bezel, Cooktop (Small) (White)
12	Bezel, Cooktop (Small) (Almond (Includes Illus. 7 and 9)
13	Cap, Semi Rapid Small (2) (Black)
13	Cap, Semi Rapid Small (2) (White)
13	Cap, Semi Rapid Small (2) (Almond Burner (2))
14	Grate, Burner Small (White Model)
14	Grate, Burner Small (Almond Model)
14	Grate, Burner Small (Black Model)
