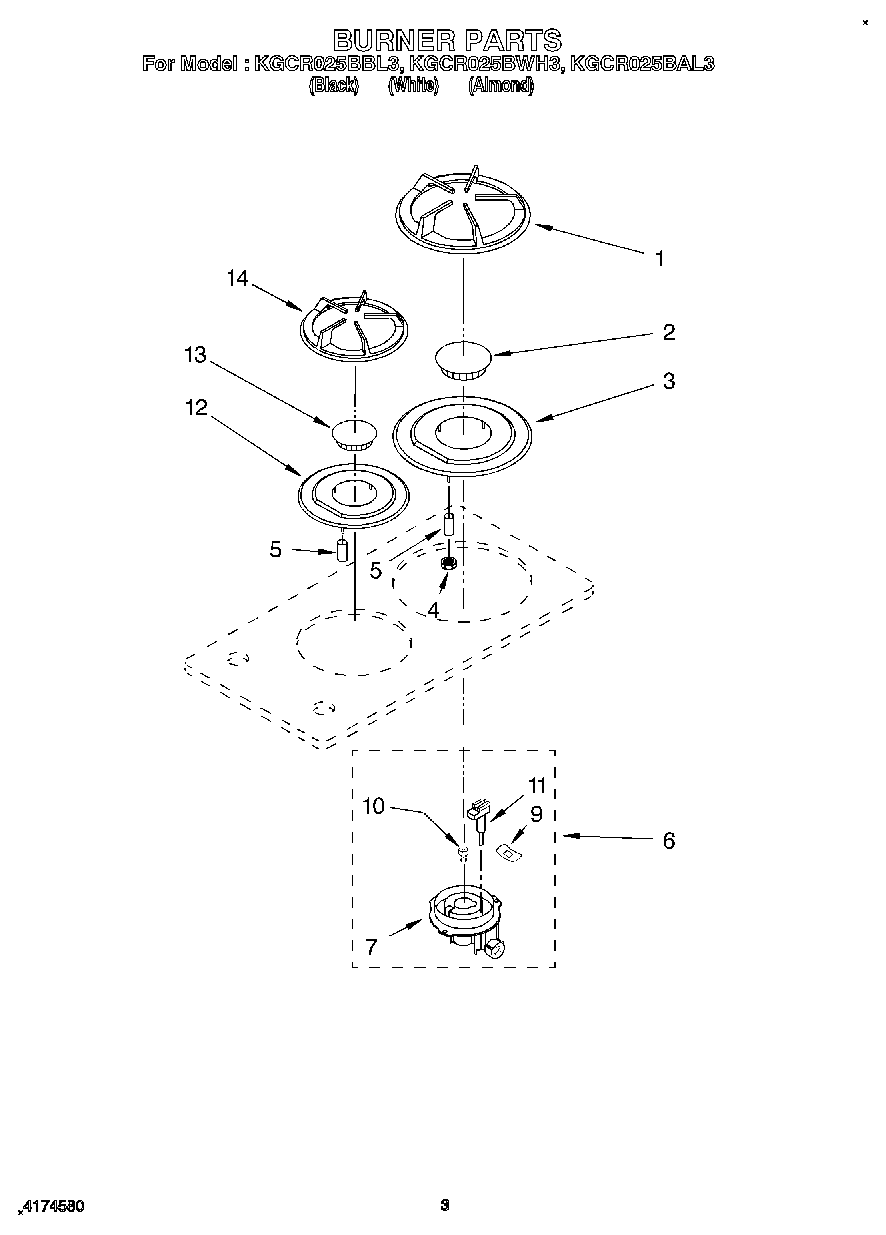

KGCR025BAL3 02 – BURNER PARTS

KGCR025BAL3 02 – BURNER PARTS

Written by

in

KGCR025BAL3 02 – BURNER PARTS

Products

PositionProduct
1Grate, Large Burner (Almond Model)
1Grate, Large Burner (White Model)
1Grate, Large Burner (Black Model)
2Cap, Rapid Burner Large (2) (Black)
2Cap, Rapid Burner Large (2) (White)
2Cap, Rapid Burner Large (2) (Almond)
3Bezel, Large (Black Model)
3Bezel, Large (Almond Model)
3Bezel, Large (White Model)
4Nut (4)
5Spacer, Tubing
6Sealed Gas Burner Kit (Large Burner)
6Sealed Gas Burner Kit (Small Burner)
7Burner, Sealed (Small)
7Burner, Sealed (Large (Includes Orifice))
9Nut
10Orifice, Burner (Small Burner)
10Orifice, Burner (Large Burner)
11Electrode
12Bezel, Small (White Model)
12Bezel, Small (Almond Model)
12Bezel, Small (Black Model)
13Cap, Semi Rapid Small (2) (Black)
13Cap, Semi Rapid Small (2) (White)
13Cap, Semi Rapid Small (2) (Almond Burner (2))
14Grate, Burner Small (Black Model)
14Grate, Burner Small (Almond Model)
14Grate, Burner Small (White Model)
