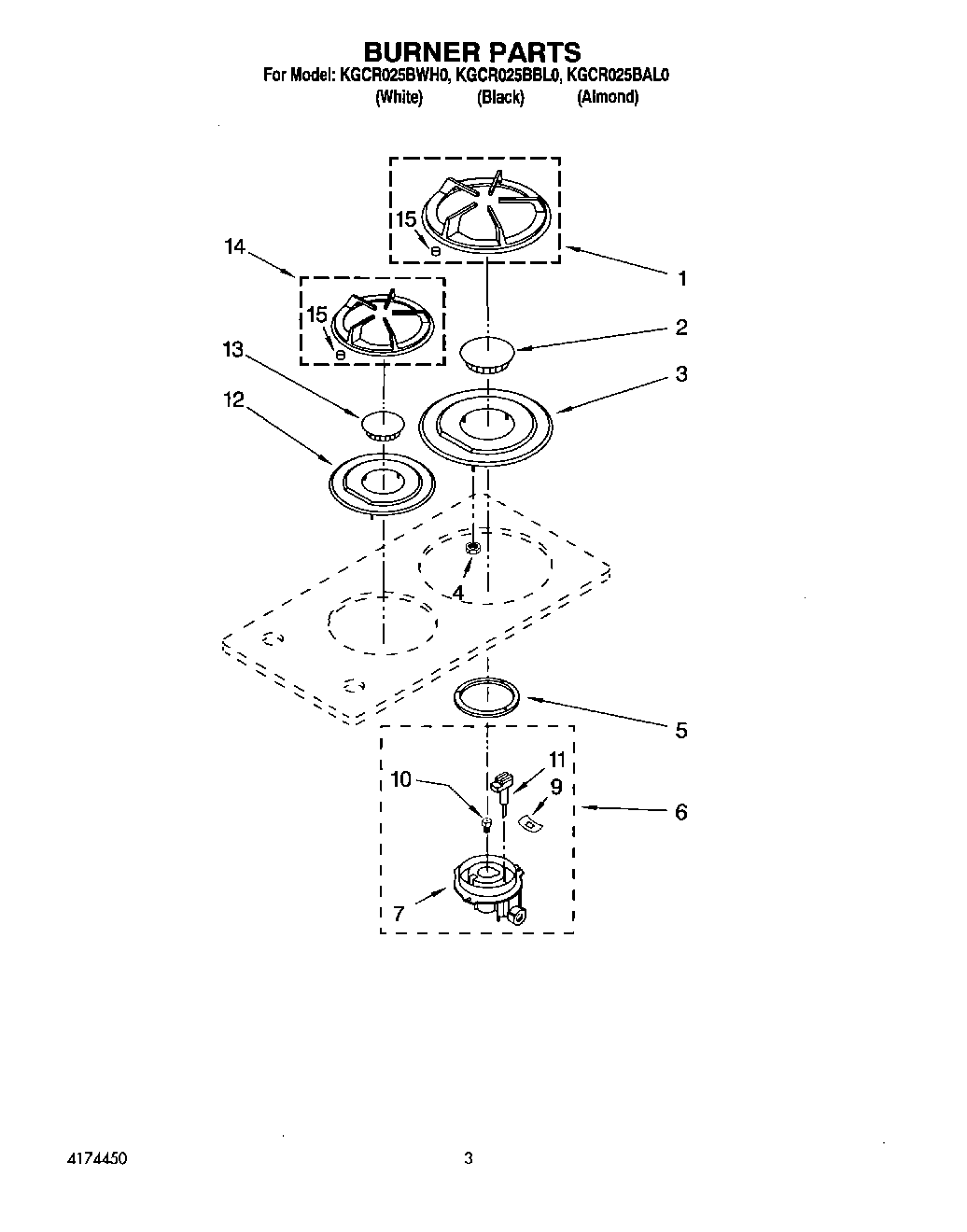

KGCR025BBL0 02 – BURNER PARTS

Products

Position	Product
1	Grate, Large (RF & LR) (White)
1	Grate, Large (RF & LR) (Black)
1	Grate, Large (RF & LR) (Almond (Includes No.12))
2	Cap, Rapid Burner Large (2) (Black)
2	Cap, Rapid Burner Large (2) (White)
2	Cap, Rapid Burner Large (2) (Almond)
3	Bezel, Cooktop (Large) (White)
3	Bezel, Cooktop (Large) (Almond (Includes Illus. 5 and 7)
3	Bezel, Cooktop (Large) (Black)
4	Nut (4)
5	Gasket, Burner (Large)
5	Gasket, Burner (Small)
6	Sealed Gas Burner Kit (Small Burner)
6	Sealed Gas Burner Kit (Large Burner)
7	Burner, Sealed (Small)
7	Burner, Sealed (Large (Includes Orifice))
9	Nut
10	Orifice, Burner (Small Burner)
10	Orifice, Burner (Large Burner)
11	Electrode
12	Bezel, Cooktop (Small) (Black)
12	Bezel, Cooktop (Small) (Almond (Includes Illus. 7 and 9)
12	Bezel, Cooktop (Small) (White)
13	Cap, Semi Rapid Small (2) (Almond Burner (2))
13	Cap, Semi Rapid Small (2) (White)
13	Cap, Semi Rapid Small (2) (Black)
14	Grate (Small) (LF & RR) (Almond (Includes No.12))
14	Grate (Small) (LF & RR) (White)
14	Grate (Small) (LF & RR) (Black)
15	Pad, Grate (Incls. 5 pads)
