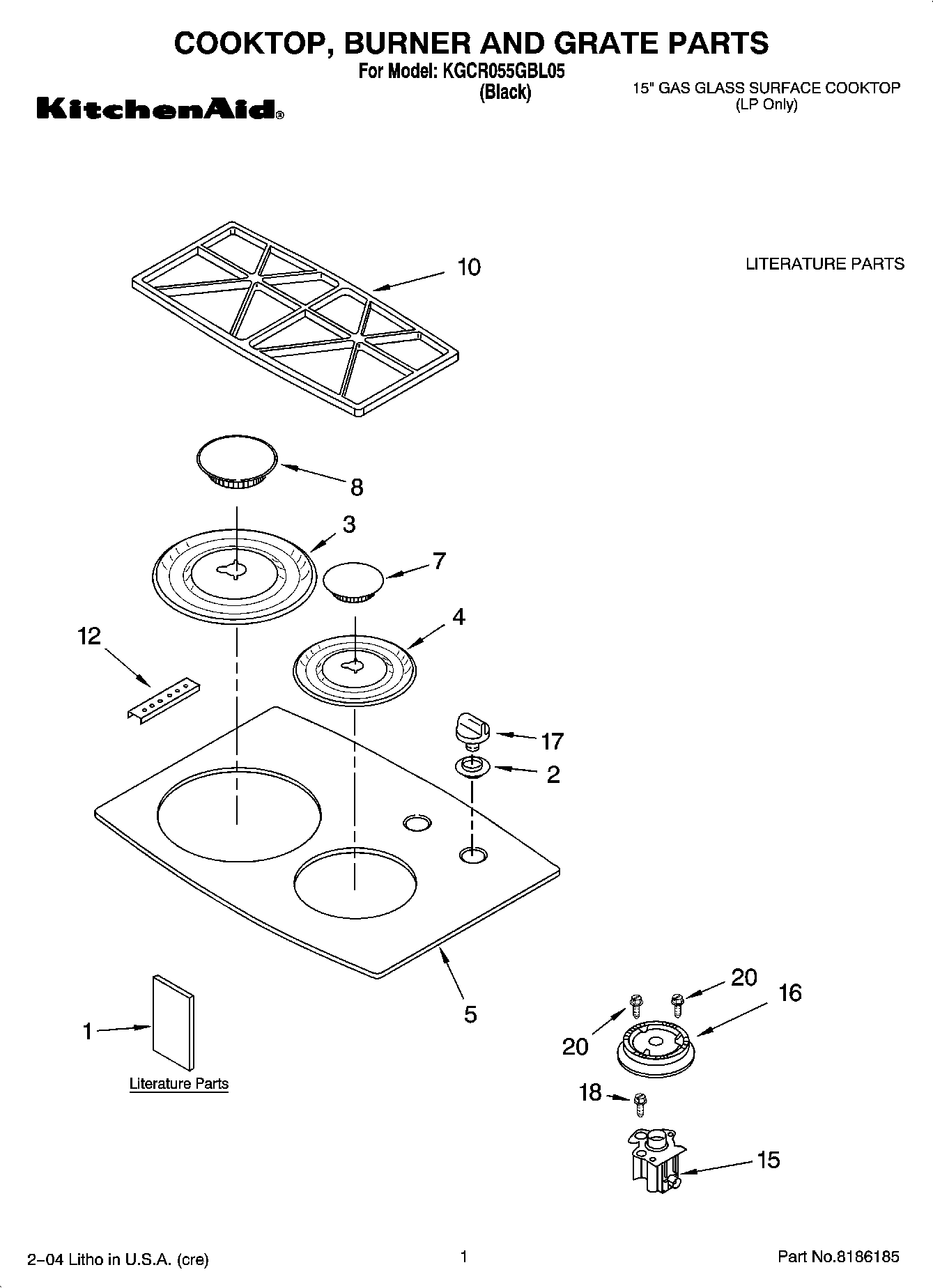

KGCR055GBL05 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
2	W10854242 Whirlpool Grommet
3	Bowl, Burner 9K,12K (LR, RF, LF) (Black)
4	Bowl, Burner 6K (RR) (Black)
5	Cooktop, Glass (Black)
7	Cap, (RF) (LR) (Black)
8	WP3191731 Whirlpool Burner Cap
10	Grate, Burner (Black)
12	WP3400093 Whirlpool Screw
12	8186533 Whirlpool Hardware
15	Holder, Orifice (Includes Items 13 & 14) (Semi Rapid)
15	Holder, Orifice (Includes Items 13 & 14) (Auxi)
16	WP4455979 Whirlpool Range Small Burner Head
16	WP4455980 Whirlpool Burner Head
17	WP3191922 Whirlpool Control Knob
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
