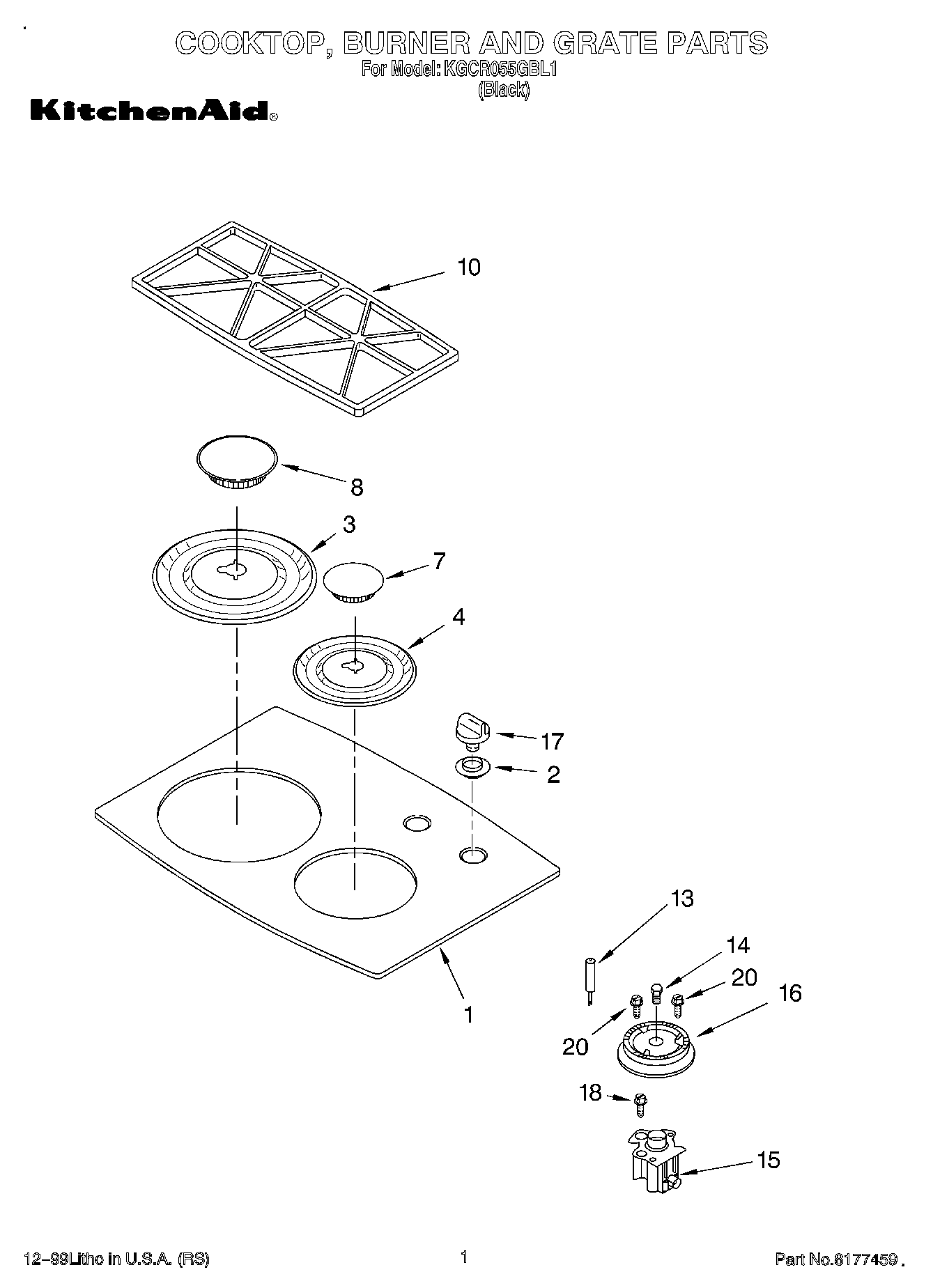

KGCR055GBL1 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Cooktop, Glass (Black)
2	W10854242 Whirlpool Grommet
3	Bowl, Burner 9K,12K (LR, RF, LF) (Black)
4	Bowl, Burner 6K (RR) (Black)
7	Cap, (RF) (LR) (Black)
8	WP3191731 Whirlpool Burner Cap
10	Grate, Burner (Black)
13	Ignitor
14	Orifice, Burner (Rear Burner)
14	WP3192529 Whirlpool Orifice Assembly
15	Holder, Orifice (Includes Items 13 & 14) (Front)
15	Holder, Orifice (Includes Items 13 & 14) (Rear)
16	WP4455980 Whirlpool Burner Head
16	WP4455979 Whirlpool Range Small Burner Head
17	WP3191922 Whirlpool Control Knob
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
