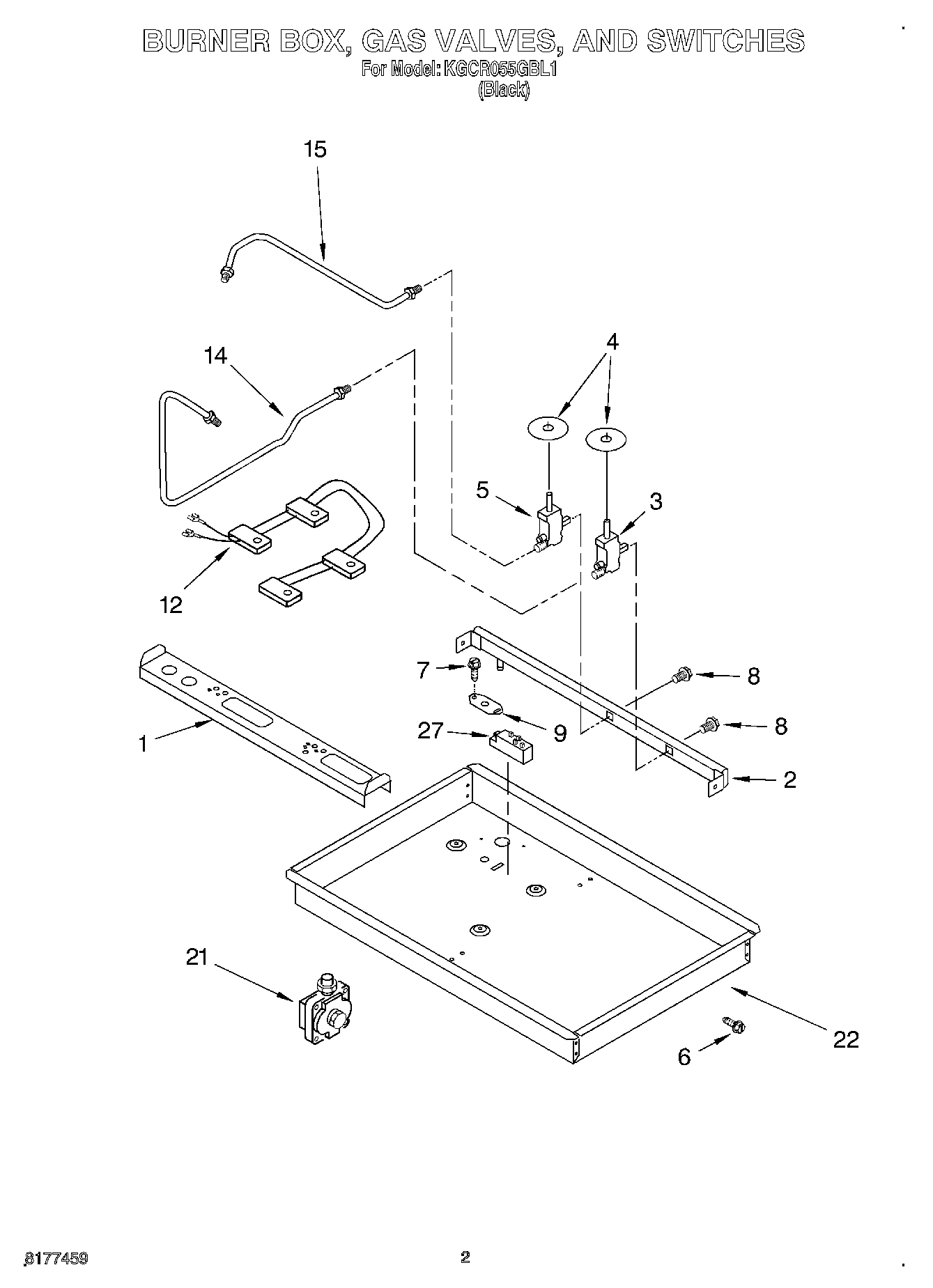

KGCR055GBL1 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
	Safer Cooking Tips
	Literature Parts (Wiring Diagram)
	Harness, Ignitor 15“
	Seal, Foam 15“
	Literature Parts (Use & Care Guide)
	15“
	Hardware, Mounting
	4173634 Whirlpool Bushing
	Installation Instructions
	W10392007 Whirlpool Power Cord
1	W10203756 Whirlpool Support
2	Pipe, Manifold
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	WP4449809 Whirlpool Screw
7	W10491985 Whirlpool Screw
8	Bolt, Gas Valve
9	3192491 Whirlpool Support Bracket
12	WP3191334 Whirlpool Wire Harness
14	Tubing, Gas Burner (Front)
15	Tubing, Gas Burner (Rear)
21	Regulator, Pressure
22	Burner Box
27	Module Spark Reignition
27	WP3177991 Whirlpool Screw
