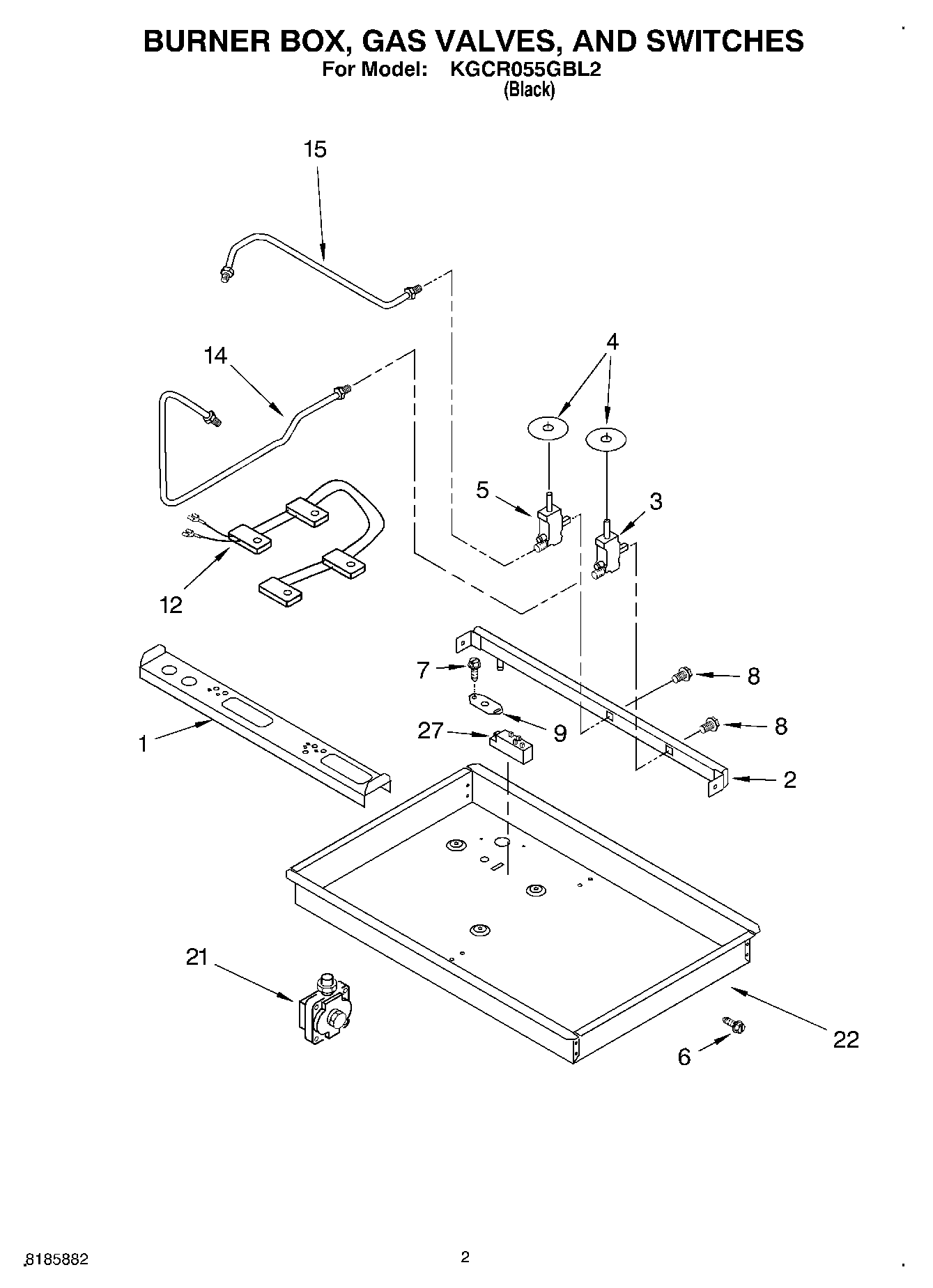

KGCR055GBL2 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1W10203756 Whirlpool Support
2Pipe, Manifold
3Valve, Burner (Small (1))
4WP3188425 Whirlpool Seal Switch
5Valve, Burner (Large (3))
6WP4449809 Whirlpool Screw
7W10491985 Whirlpool Screw
8Bolt (Gas Valve)
93192491 Whirlpool Support Bracket
12WP3191334 Whirlpool Wire Harness
14Tubing, Gas Burner (Front)
15Tubing, Gas Burner (Rear)
21Regulator, Pressure
22Burner Box
27Harness, Ignitor 15“
27Seal, Foam 15“
27Module Spark Reignition
2715“
27WP12990527 Whirlpool Microwave Screw
274173634 Whirlpool Bushing
27W10392007 Whirlpool Power Cord
27Hardware, Mounting
