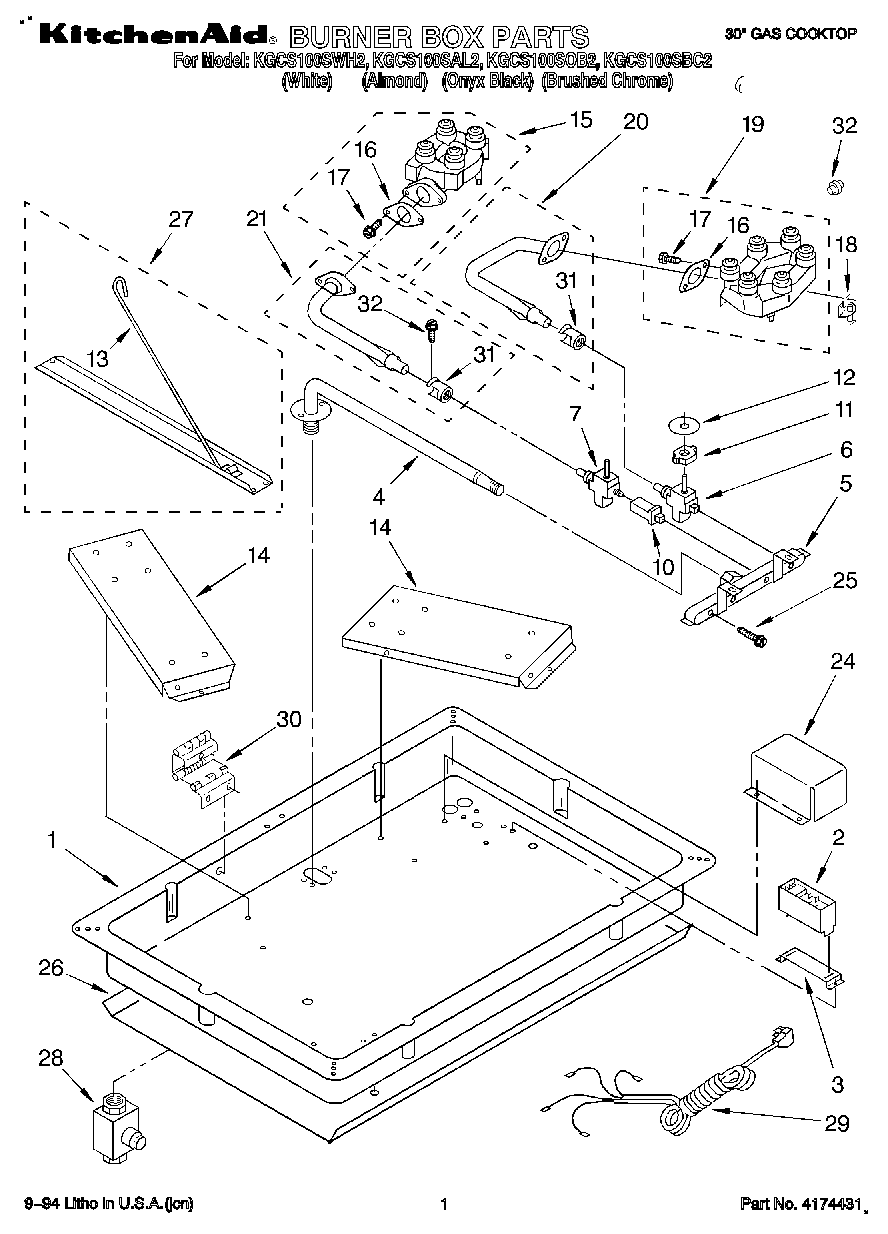

KGCS100SBC2 01 – BURNER BOX PARTS

Products

Position	Product
	Installation Instructions, Trim Kit
	Use & Care Guide
1	Box, Burner
2	4175453 Whirlpool Oven Surface Igniter
2	Module, Spark Ignitor Wire
3	Bracket, Spark Module
4	Manifold, Inlet
5	Manifold, Control
6	Valve, Daisy (Bolt Thru) Left Front
6	Valve, Power Bolt Thru Right Front
7	Valve, Power Pipe Left Rear
7	Valve, Daisy Pipe Right Rear
10	Extension, Valve 1/8 NPT (2)
11	Switch, Valve (4)
12	WP3188425 Whirlpool Seal Switch
13	Rod, Top Support
14	Bushing (4)
14	Bracket, Burner Base (2)
15	Daisy Burner (L.F. & R.R.)
16	Gasket, Venturi
17	Screw, Venturi
18	WP313808 Whirlpool Screw
19	Burner, Power (R.F. & L.R.)
20	Venturi Assembly (Right Front)
20	Venturi Assembly (Left Front)
21	Venturi Assembly (Left Rear)
21	Venturi Assembly (Right Rear)
24	Cover, Spark Module
25	Bolt, Valve
25	Washer (2)
26	Shield, Heat
27	Strut, Top Support
27	Screw
28	REGULATOR, PRESSURE
29	WPL 4169261
30	WPW10068250 Whirlpool Dishwasher Screw
30	Screw, (2)
30	Hinge, Cooktop (2)
31	Valve, Mixer
32	Base Cover Screws
32	Lighter, Jet
