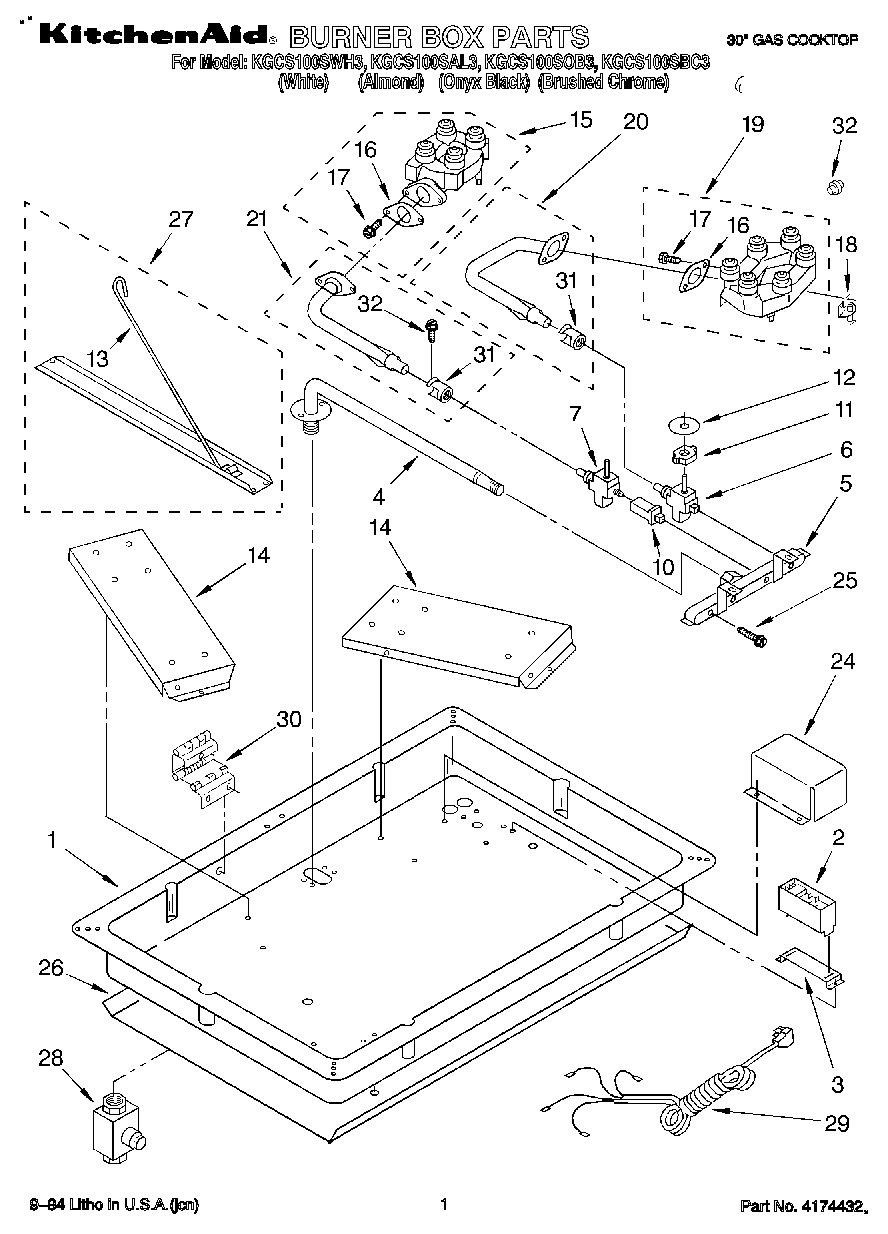

KGCS100SBC3 01 – BURNER BOX PARTS

Products

Position	Product
	Guide, Use & Care
	Instructions, Installation
1	Box, Burner
2	Module, Spark Ignitor Wire
3	Bracket, Spark Module
4	Manifold, Inlet
5	Manifold, Control
6	Valve, Daisy (Bolt Thru) Left Front
6	Valve, Power Bolt Thru Right Front
7	Valve, Daisy Pipe Right Rear
7	Valve, Power Pipe Left Rear
10	Extension, Valve 1/8 NPT (2)
11	Switch, Valve (4)
12	WP3188425 Whirlpool Seal Switch
13	Rod, Top Support
14	Bushing (4)
14	Bracket, Burner Base (2)
15	Daisy Burner (L.F. & R.R.)
16	Gasket, Venturi
17	Screw, Venturi
18	4175453 Whirlpool Oven Surface Igniter
18	WP313808 Whirlpool Screw
19	Burner, Power (R.F. & L.R.)
20	Venturi Assembly (Left Front)
20	Venturi Assembly (Right Front)
21	Venturi Assembly (Left Rear)
21	Venturi Assembly (Right Rear)
24	Cover, Spark Module
25	Washer (2)
25	Bolt, Valve
26	Shield, Heat
27	Screw
27	Strut, Top Support
28	REGULATOR, PRESSURE
29	WPL 4169261
30	Screw, (2)
30	WPW10068250 Whirlpool Dishwasher Screw
30	Hinge, Cooktop (2)
31	Valve, Mixer
32	Base Cover Screws
32	Lighter, Jet
