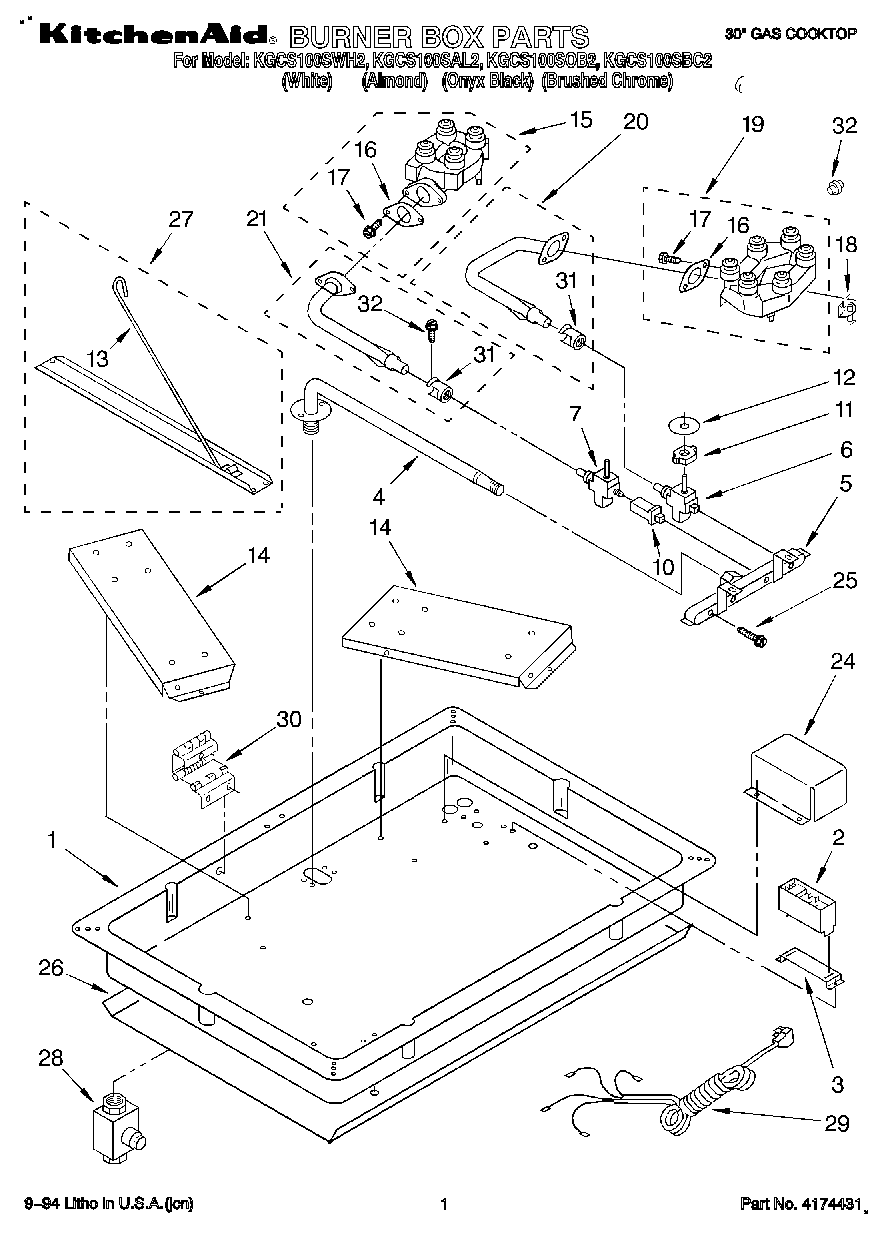

KGCS100SOB2 01 – BURNER BOX PARTSadmin2025-04-26T11:40:51+00:00KGCS100SOB2 01 – BURNER BOX PARTS
Products
| Position | Product |
|---|
| Installation Instructions, Trim Kit |
| Use & Care Guide |
| 1 | Box, Burner |
| 2 | 4175453 Whirlpool Oven Surface Igniter |
| 2 | Module, Spark Ignitor Wire |
| 3 | Bracket, Spark Module |
| 4 | Manifold, Inlet |
| 5 | Manifold, Control |
| 6 | Valve, Daisy (Bolt Thru) Left Front |
| 6 | Valve, Power Bolt Thru Right Front |
| 7 | Valve, Power Pipe Left Rear |
| 7 | Valve, Daisy Pipe Right Rear |
| 10 | Extension, Valve 1/8 NPT (2) |
| 11 | Switch, Valve (4) |
| 12 | WP3188425 Whirlpool Seal Switch |
| 13 | Rod, Top Support |
| 14 | Bushing (4) |
| 14 | Bracket, Burner Base (2) |
| 15 | Daisy Burner (L.F. & R.R.) |
| 16 | Gasket, Venturi |
| 17 | Screw, Venturi |
| 18 | WP313808 Whirlpool Screw |
| 19 | Burner, Power (R.F. & L.R.) |
| 20 | Venturi Assembly (Right Front) |
| 20 | Venturi Assembly (Left Front) |
| 21 | Venturi Assembly (Left Rear) |
| 21 | Venturi Assembly (Right Rear) |
| 24 | Cover, Spark Module |
| 25 | Bolt, Valve |
| 25 | Washer (2) |
| 26 | Shield, Heat |
| 27 | Strut, Top Support |
| 27 | Screw |
| 28 | REGULATOR, PRESSURE |
| 29 | WPL 4169261 |
| 30 | WPW10068250 Whirlpool Dishwasher Screw |
| 30 | Screw, (2) |
| 30 | Hinge, Cooktop (2) |
| 31 | Valve, Mixer |
| 32 | Base Cover Screws |
| 32 | Lighter, Jet |
