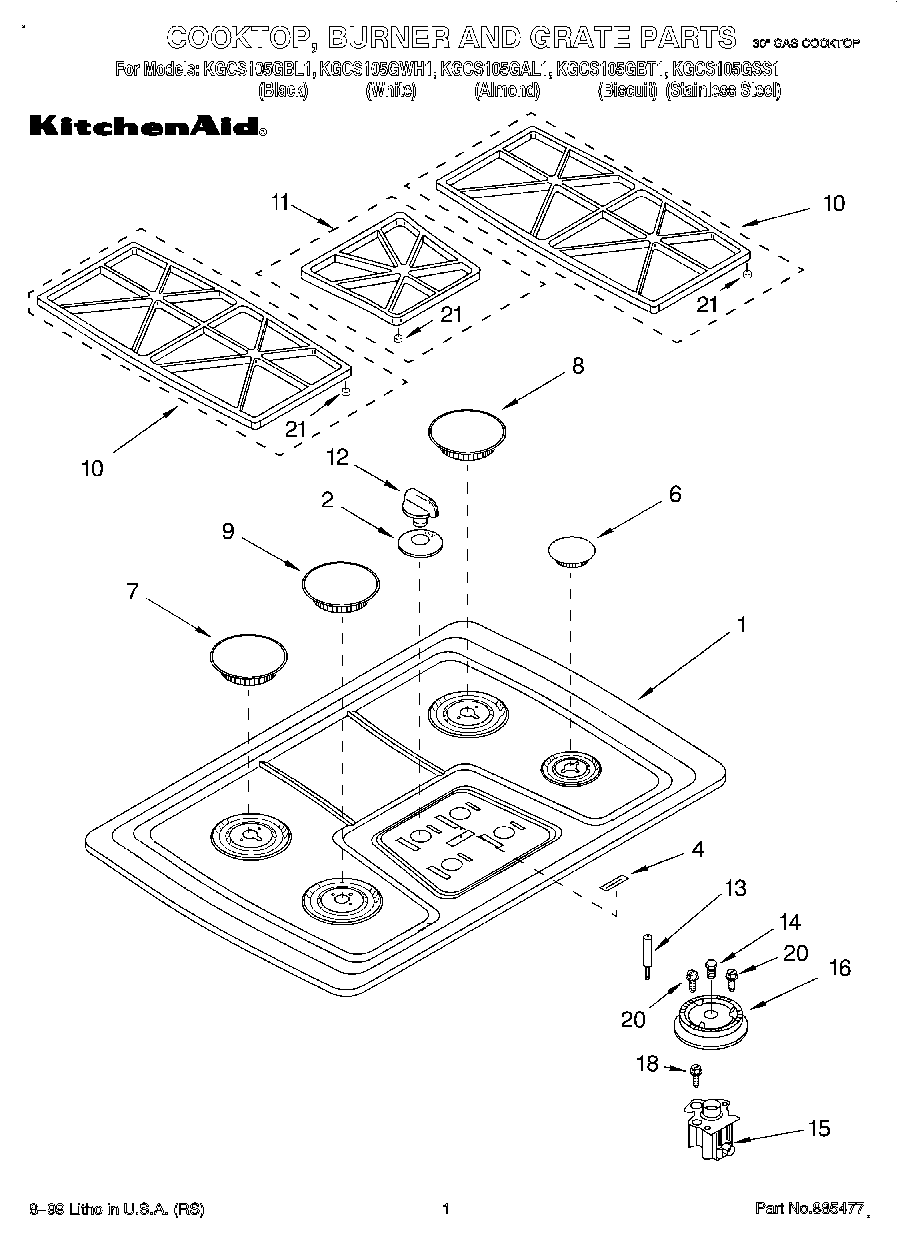

KGCS105GAL1 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Stainless Steel
1	Almond
1	White
1	Cooktop (Black)
1	Biscuit
2	Collar, Knob (Biscuit)
2	Collar, Knob (Almond)
2	WP4457192 Whirlpool Cooktop Black Bezel Knob
2	Collar, Knob (White)
4	Nameplate (Biscuit)
4	Nameplate (Almond)
4	Nameplate (Black)
4	Nameplate (White)
6	Cap, (RF) (LR) (White)
6	WP3192486 Whirlpool Burner Cap
6	Cap, (RF) (LR) (Biscuit)
6	Cap, (RF) (LR) (Black)
7	WP3191731 Whirlpool Burner Cap
7	Cap, (CR) (White)
7	Cap, (CR) (Biscuit)
7	Cap, (CR) (Use w/Stainless Steel Model)
8	Cap, (RR) (Biscuit)
8	Cap, (RR) (Black)
8	Cap, (RR) (Use w/Stainless Steel Model)
8	Cap, (RR) (White)
9	Cap, (LF) (Black)
9	Burner Caps (LF)
9	Cap, (LF) (Biscuit)
9	Cap, (LF) (White)
10	Grate, Burner (White)
10	Grate, Burner (Biscuit)
10	WP9759505 Whirlpool Burner Grate
10	Grate, Burner (Black)
11	Grate, Filler (Black)
11	Grate, Filler (Almond/Biscuit)
11	Grate, Filler (Use w/Stainless Steel Model)
11	Grate, Filler (White)
12	WPL 3191923
12	WPL 3191925
12	WP3191922 Whirlpool Control Knob
12	Knob, Control (4) (Almond)
13	Ignitor
14	Orifice (Turbi (14k))
14	WP3192523 Whirlpool Orifice
14	WP9753930 Whirlpool Orifice
14	Orifice (RF)
15	WPL 3191743
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
15	814513 Whirlpool Top Burner
16	Head, Burner (RF)
16	Head, Burner (LF)
16	Head, Burner (14K LF)
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
21	814465 Whirlpool Gas Stove Range Cooktop Burner Grate Pad Kit
