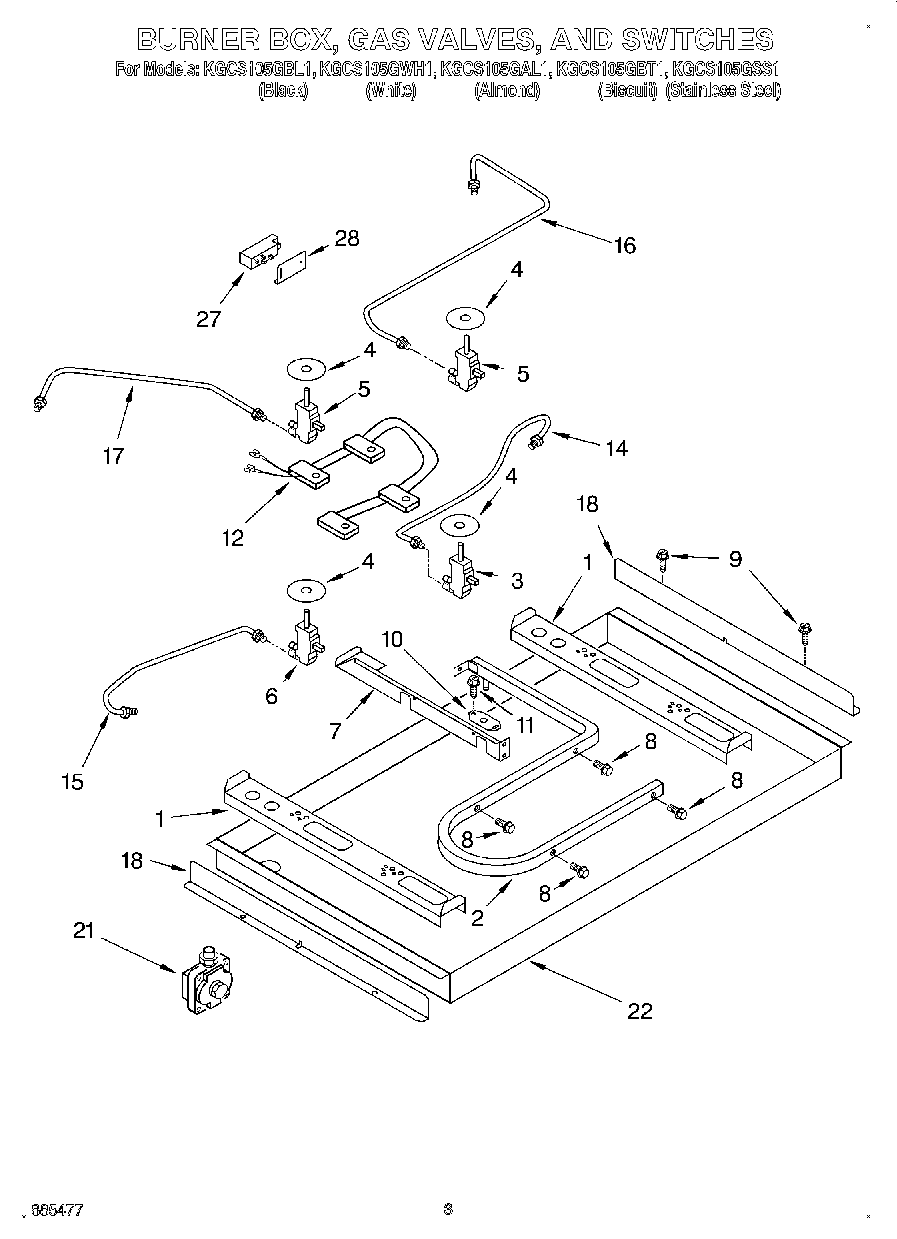

KGCS105GAL1 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
	Hardware, Mounting
	15“
	4173634 Whirlpool Bushing
	W10392007 Whirlpool Power Cord
	28“
	Screw
	Conversion Kit Natural Gas To L.P.
	Use & Care Guide
	Seal, Foam
	Nut, Tinnerman (2)
	Screw
	8186533 Whirlpool Hardware
	Wiring Diagram
	Installation Instructions
	Safer Cooking Tips
1	W10203756 Whirlpool Support
2	Pipe, Manifold
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	Valve, Burner (Silver)
7	Rail, Center
8	Bolt, Gas Valve
9	WP3177991 Whirlpool Screw
10	3192491 Whirlpool Support Bracket
11	W10491985 Whirlpool Screw
12	WP3191334 Whirlpool Wire Harness
14	3191324 Whirlpool Oven Gas Tubing
15	Tubing, Burner (LF)
16	Tubing, Burner (RR)
17	Tubing, Gas Burner (LR)
18	3191462 Whirlpool Oven Heat Shield
21	Regulator, Pressure
22	Burner Box
27	WP8053421 Whirlpool Oven Spark Module
28	Bracket, Spark Module
