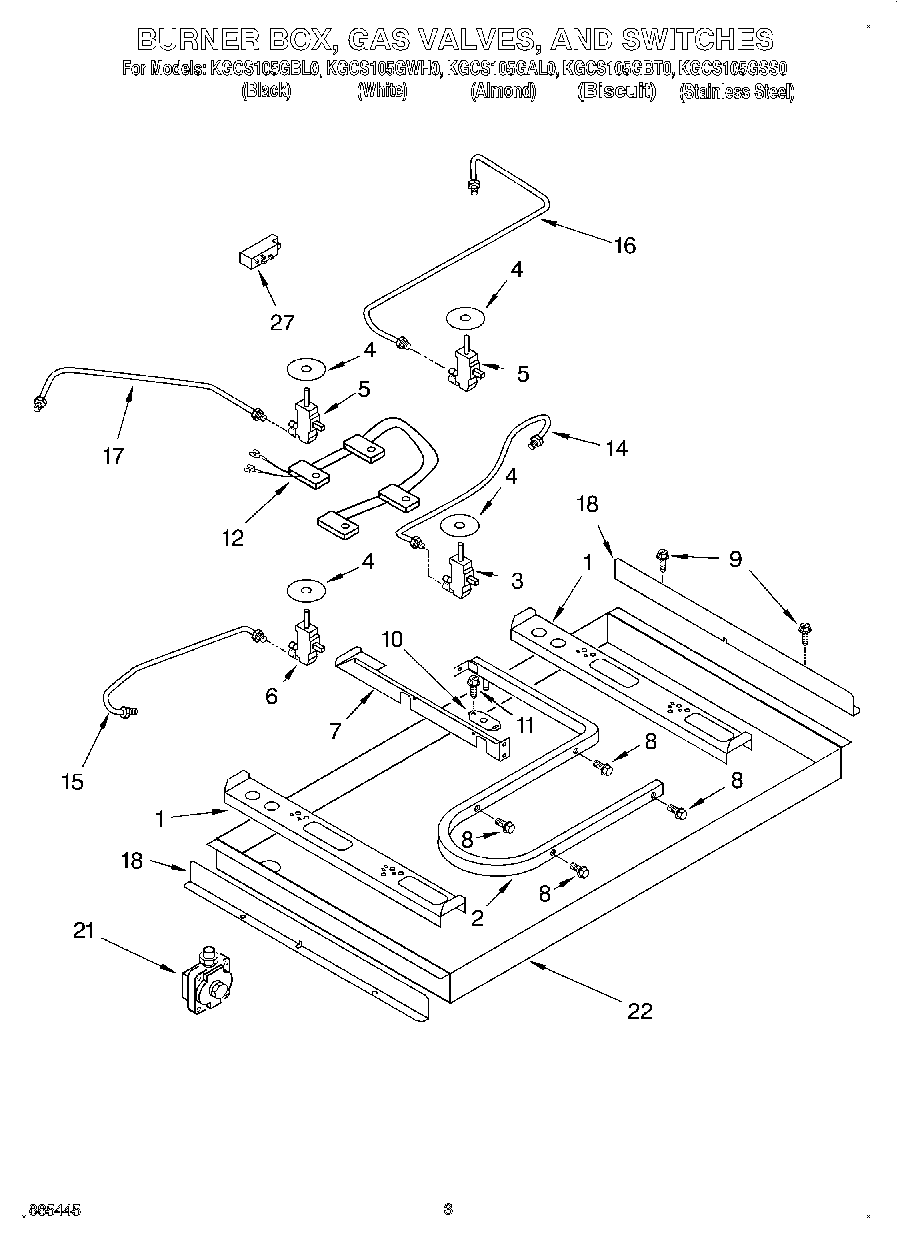

KGCS105GBL0 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
Hardware, Mounting
15“
4173634 Whirlpool Bushing
W10392007 Whirlpool Power Cord
28“
Screw
Seal, Foam
Conversion Kit Natural Gas To L.P.
Use & Care Guide
Nut, Tinnerman (2)
Screw
8186533 Whirlpool Hardware
Wiring Diagram
Installation Instructions
Safer Cooking Tips
1W10203756 Whirlpool Support
2Pipe, Manifold
3Valve, Burner (Small (1))
4WP3188425 Whirlpool Seal Switch
5Valve, Burner (Large (3))
6Valve, Burner (Silver)
7Rail, Center
8Bolt, Gas Valve
9WP3177991 Whirlpool Screw
103192491 Whirlpool Support Bracket
11W10491985 Whirlpool Screw
12WP3191334 Whirlpool Wire Harness
143191324 Whirlpool Oven Gas Tubing
15Tubing, Burner (LF)
16Tubing, Burner (RR)
17Tubing, Gas Burner (LR)
183191462 Whirlpool Oven Heat Shield
21Regulator, Pressure
22Burner Box
27WP8053421 Whirlpool Oven Spark Module
