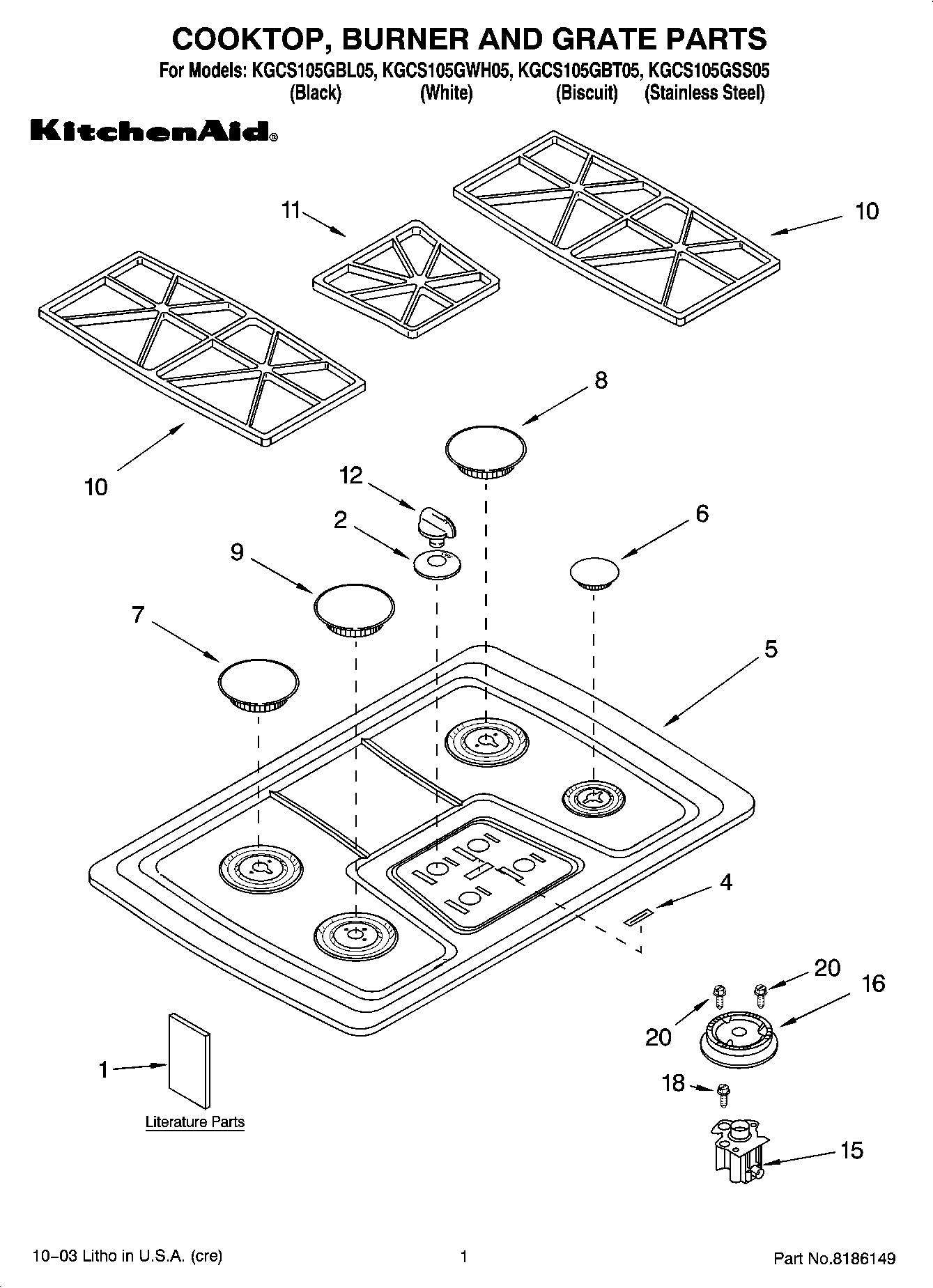

KGCS105GBT05 01 – COOKTOP, BURNER AND GRATE PARTS
Written by
in
KGCS105GBT05 01 – COOKTOP, BURNER AND GRATE PARTS
Products
Position
Product
1
Safer Cooking Tips
1
Wiring Diagram
1
LP Conversion Instructions
1
Literature Parts (Installation Instructions)
1
Literature Parts (Use & Care Guide)
2
Collar, Knob (White)
2
WP4457192 Whirlpool Cooktop Black Bezel Knob
2
Collar, Knob (Biscuit)
4
Nameplate (White)
4
Nameplate (Black)
4
Nameplate (Biscuit)
5
Stainless Steel
5
White
5
Biscuit
5
Cooktop (Black)
6
Cap, (RF) (LR) (White)
6
Cap, (RF) (LR) (Biscuit)
6
WP3192486 Whirlpool Burner Cap
6
Cap, (RF) (LR) (Black)
7
Cap, (CR) (Use w/Stainless Steel Model)
7
Cap, (CR) (Biscuit)
7
Cap, (CR) (White)
7
WP3191731 Whirlpool Burner Cap
8
Cap, (RR) (Use w/Stainless Steel Model)
8
Cap, (RR) (White)
8
Cap, (RR) (Black)
8
Cap, (RR) (Biscuit)
9
Cap, (LF) (White)
9
Cap, (LF) (Biscuit)
9
Cap, (LF) (Black)
9
Burner Caps (LF)
10
Grate, Burner (White)
10
Grate, Burner (Black)
10
Grate, Burner (Biscuit)
10
WP9759505 Whirlpool Burner Grate
11
Grate, Filler (Biscuit)
11
Grate, Filler (White)
11
Grate, Filler (Black)
11
Grate, Filler (Use w/Stainless Steel Model)
12
WP3191922 Whirlpool Control Knob
12
WPL 3191923
12
WPL 3191925
15
WPW10155786 Whirlpool Surface Burner Orifice Holder
15
WPW10128448 Whirlpool Igniter and Orifice Holder
15
WPW10155785 Whirlpool Orifice Holder
15
WPW10155784 Whirlpool Orifice Holder
16
WP4455979 Whirlpool Range Small Burner Head
16
WP4455981 Whirlpool Burner Head
16
WP4455980 Whirlpool Burner Head
16
Burner Head (Turbi)
18
WP4449809 Whirlpool Screw
20
WP3368921 Whirlpool Screw
←
