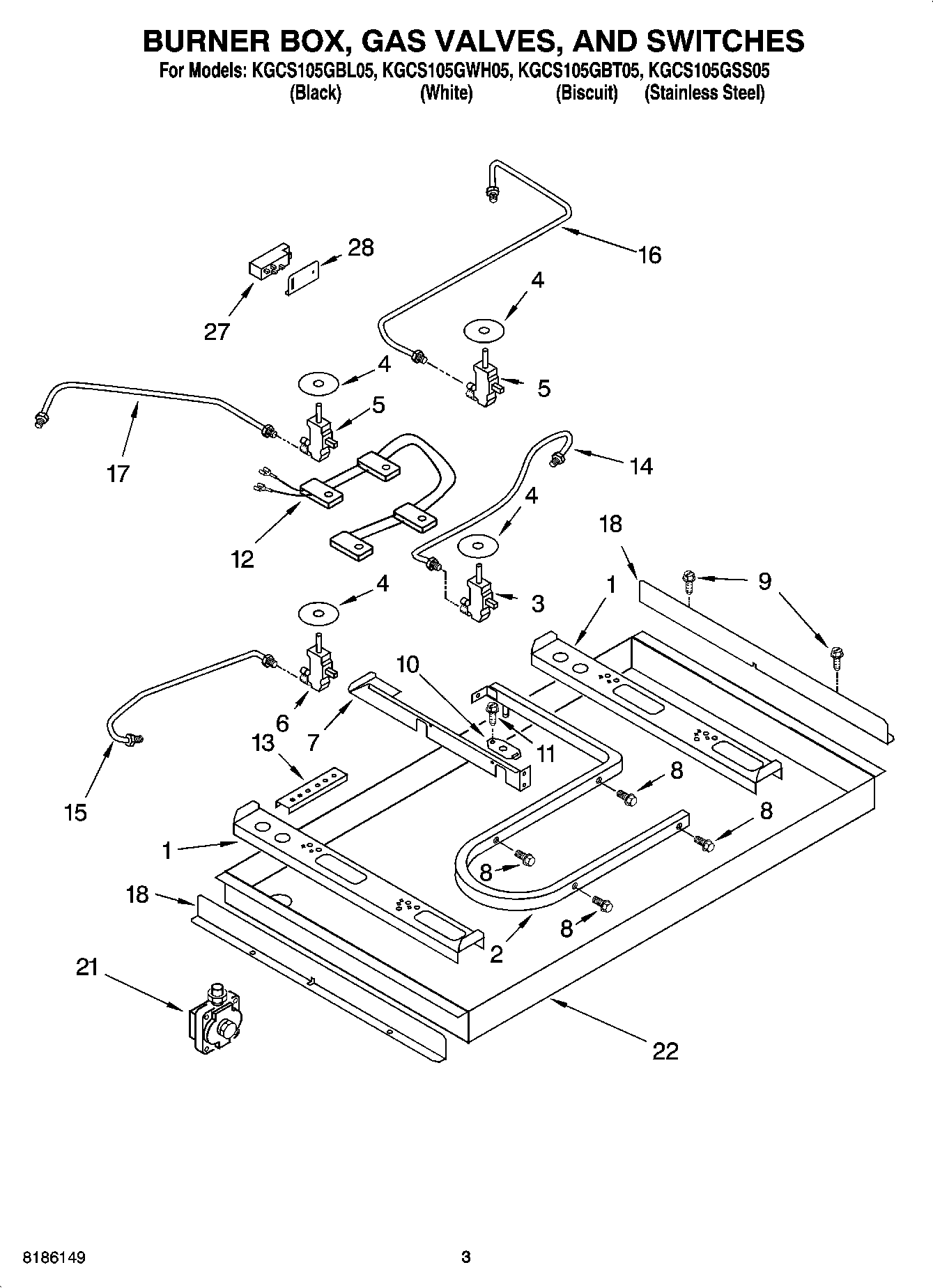

KGCS105GBT05 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1W10203756 Whirlpool Support
2Pipe, Manifold
3Valve, Burner (Small (1))
4WP3188425 Whirlpool Seal Switch
5Valve, Burner (Large (3))
6Valve, Burner (Silver)
7Rail, Center
8Bolt (Gas Valve)
9WP12990527 Whirlpool Microwave Screw
103192491 Whirlpool Support Bracket
11W10491985 Whirlpool Screw
12Harness & Switches
13WP3400093 Whirlpool Screw
143191324 Whirlpool Oven Gas Tubing
15Tubing, Burner (LF)
16Tubing, Burner (RR)
17Tubing, Gas Burner (LR)
183191462 Whirlpool Oven Heat Shield
21Regulator, Pressure
22Burner Box
27WPW10110491 Whirlpool Spark Module
284456627 Whirlpool Wire Harness
28WIRING HARNESS PARTS
28Miscellaneous
28FOLLOWING PARTS NOT ILLUSTRATED
28Hardware, Mounting
288186533 Whirlpool Hardware
28Nut, Tinnerman (2)
28W10392007 Whirlpool Power Cord
284173634 Whirlpool Bushing
28WP3177991 Whirlpool Screw
284456626 Whirlpool Wire
284455837 Whirlpool Oven Mounting Bracket
28WP3192741 Whirlpool LP Conversion Kit
