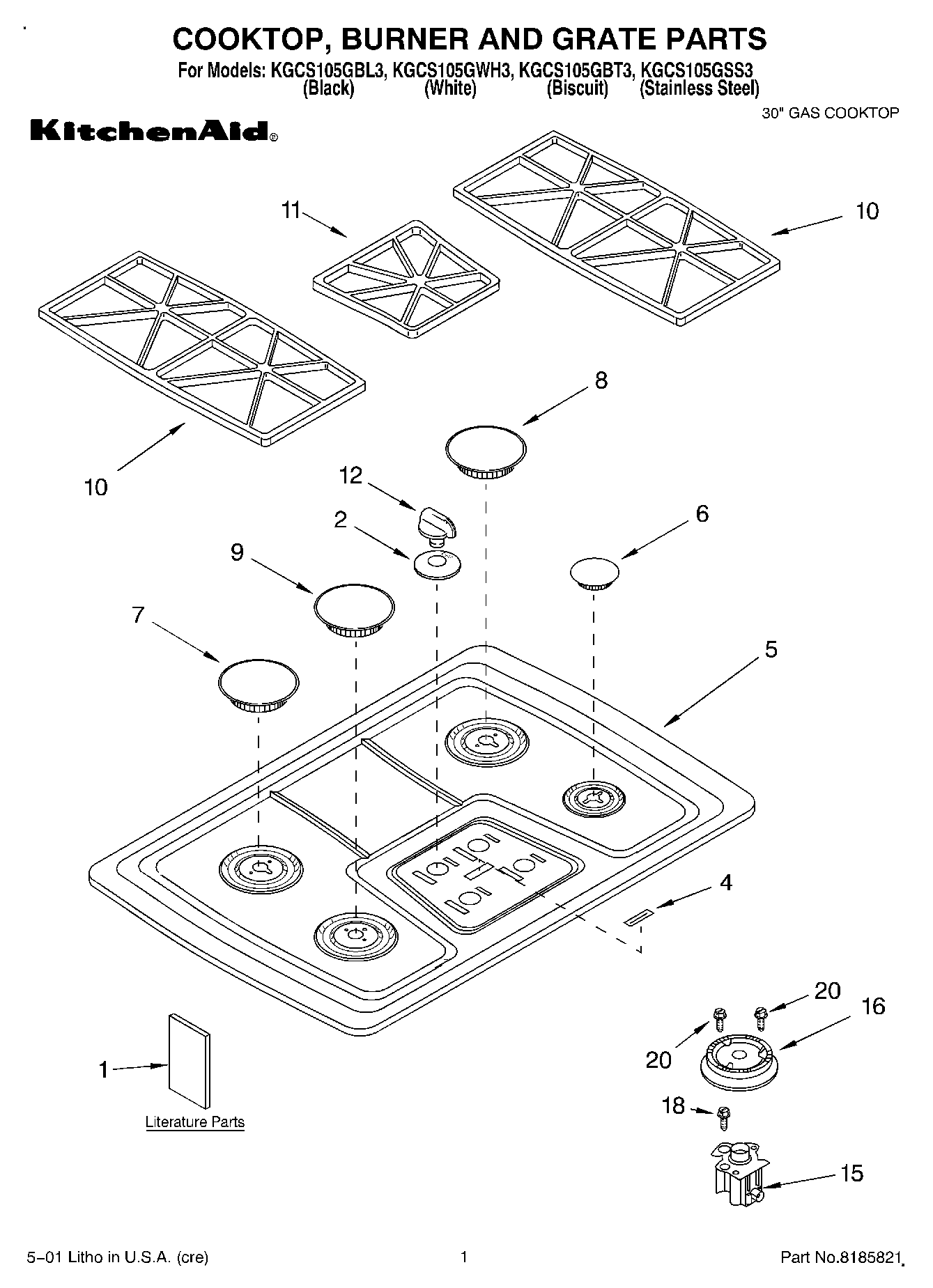

KGCS105GBT3 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Safer Cooking Tips
1	Wiring Diagram
1	LP Conversion Instructions
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
2	Collar, Knob (White)
2	Collar, Knob (Biscuit)
2	WP4457192 Whirlpool Cooktop Black Bezel Knob
4	Nameplate (Biscuit)
4	Nameplate (Black)
4	Nameplate (White)
5	Stainless Steel
5	White
5	Cooktop (Black)
5	Biscuit
6	Cap, (RF) (LR) (Biscuit)
6	WP3192486 Whirlpool Burner Cap
6	Cap, (RF) (LR) (Black)
6	Cap, (RF) (LR) (White)
7	Cap, (CR) (White)
7	Cap, (CR) (Use w/Stainless Steel Model)
7	Cap, (CR) (Biscuit)
7	WP3191731 Whirlpool Burner Cap
8	Cap, (RR) (Biscuit)
8	Cap, (RR) (White)
8	Cap, (RR) (Black)
8	Cap, (RR) (Use w/Stainless Steel Model)
9	Cap, (LF) (Biscuit)
9	Cap, (LF) (White)
9	Cap, (LF) (Black)
9	Burner Caps (LF)
10	Grate, Burner (Black)
10	WP9759505 Whirlpool Burner Grate
10	Grate, Burner (Biscuit)
10	Grate, Burner (White)
11	Grate, Filler (White)
11	Grate, Filler (Almond/Biscuit)
11	Grate, Filler (Black)
11	Grate, Filler (Use w/Stainless Steel Model)
12	WPL 3191925
12	WPL 3191923
12	WP3191922 Whirlpool Control Knob
15	814513 Whirlpool Top Burner
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
15	Orifice Holder (Turbi)
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
16	WP4455981 Whirlpool Burner Head
16	Head, Burner (14K – LF)
16	WP4455980 Whirlpool Burner Head
16	WP4455979 Whirlpool Range Small Burner Head
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
