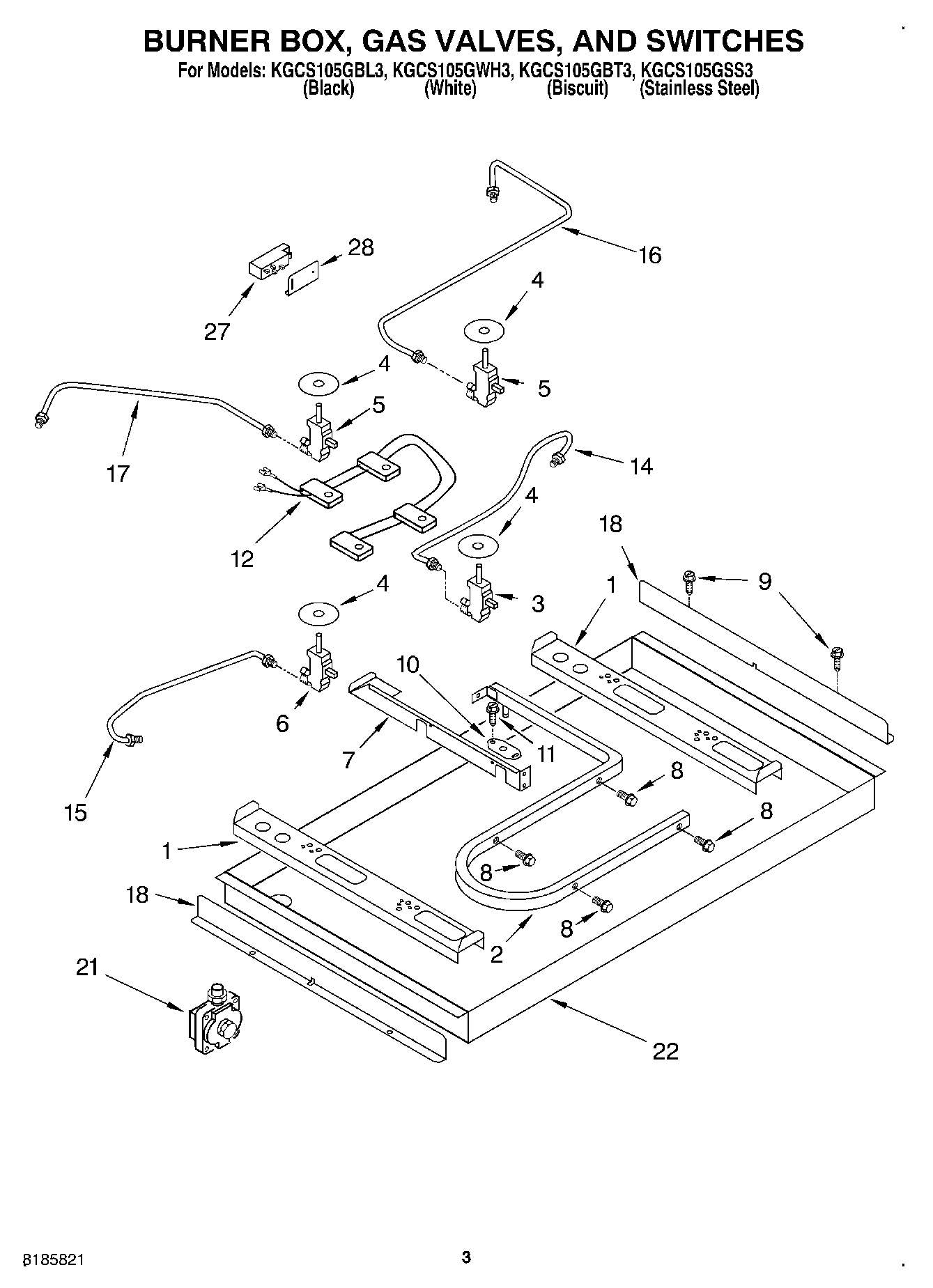

KGCS105GBT3 02 – BURNER BOX, GAS VALVES, AND SWITCHES

KGCS105GBT3 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

KGCS105GBT3 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1W10203756 Whirlpool Support
2Pipe, Manifold
3Valve, Burner (Small (1))
4WP3188425 Whirlpool Seal Switch
5Valve, Burner (Large (3))
6Valve, Burner (Silver)
7Rail, Center
8Bolt (Gas Valve)
9WP12990527 Whirlpool Microwave Screw
103192491 Whirlpool Support Bracket
11W10491985 Whirlpool Screw
12WP3191334 Whirlpool Wire Harness
143191324 Whirlpool Oven Gas Tubing
15Tubing, Burner (LF)
16Tubing, Burner (RR)
17Tubing, Gas Burner (LR)
183191462 Whirlpool Oven Heat Shield
21Regulator, Pressure
22Burner Box
27WPW10110491 Whirlpool Spark Module
28Hardware, Mounting
288186533 Whirlpool Hardware
28Screw
28Nut, Tinnerman (2)
28W10392007 Whirlpool Power Cord
284173634 Whirlpool Bushing
284455837 Whirlpool Oven Mounting Bracket
2815“
2828“
28WP3192741 Whirlpool LP Conversion Kit
