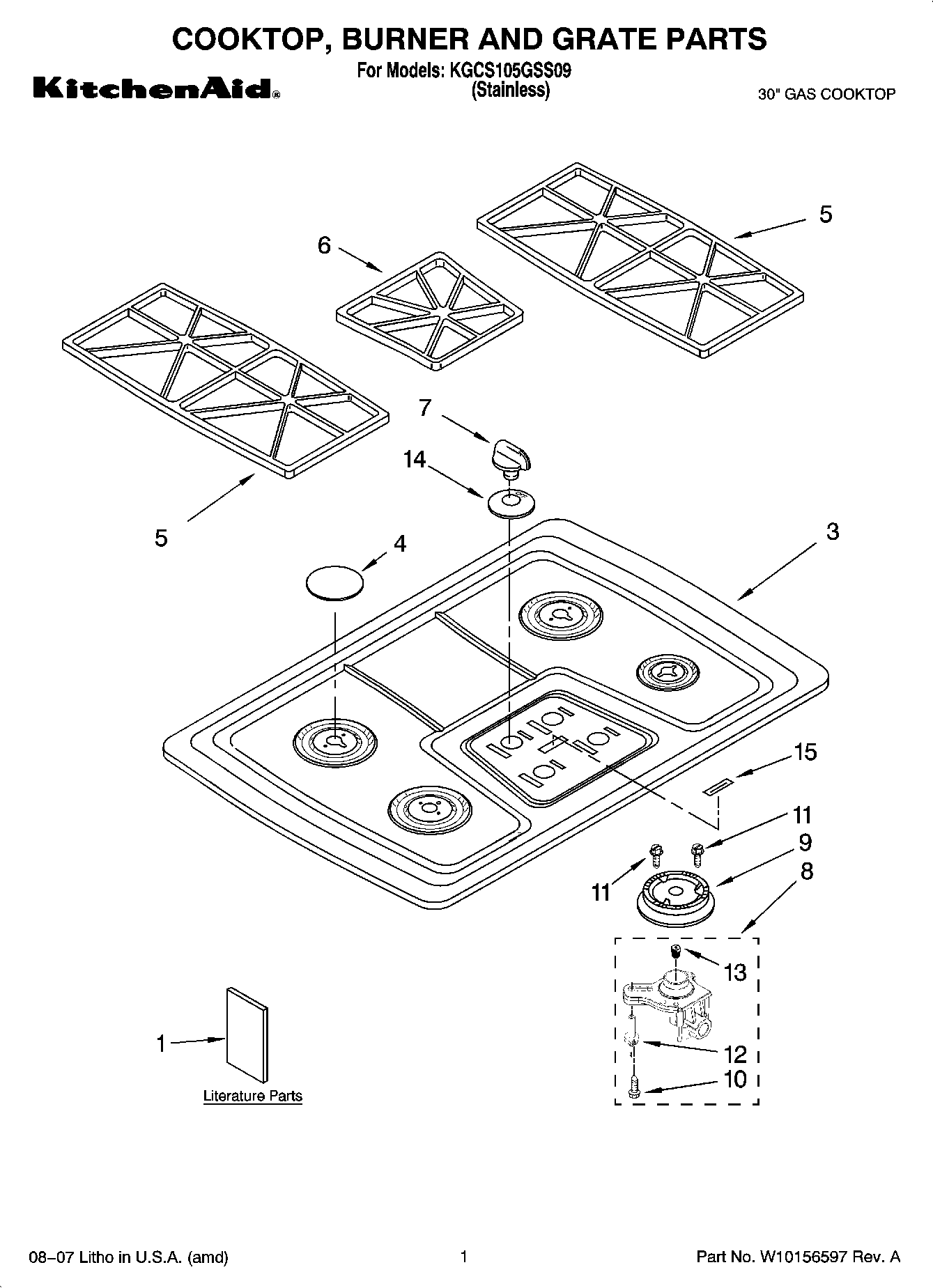

KGCS105GSS09 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Installation Instructions (Undercounter Oven)
1	Use & Care Guide
1	Safe Cooking Tips
1	Safe Cooking Tips (French)
1	Installation Instructions
3	Cooktop
4	WP8286154CB Whirlpool Burner Cap
4	WP8286153CB Whirlpool Burner Cap
4	Burner Caps (LF)
4	WP8286155CB Whirlpool Burner Cap
5	WP9759505 Whirlpool Burner Grate
6	Grate, Center
7	WP3191922 Whirlpool Control Knob
8	WPW10128450 Whirlpool Orifice Holder
8	WPW10155786 Whirlpool Surface Burner Orifice Holder
8	Holder, Orifice (RR)
8	WPW10128448 Whirlpool Igniter and Orifice Holder
9	Burner Head (Turbi)
9	WPW10406243 Whirlpool Burner Head Auxiliary 6K
9	WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
9	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
10	WP8273062 Whirlpool Screw
11	WP3368921 Whirlpool Screw
12	WP9782116 Whirlpool Surface Igniter
13	Orifice (Turbi (14k))
13	8286551 Whirlpool Oven Orifice
13	WP3192529 Whirlpool Orifice Assembly
13	WP3192523 Whirlpool Orifice
14	WP4457192 Whirlpool Cooktop Black Bezel Knob
15	Nameplate (Black)
