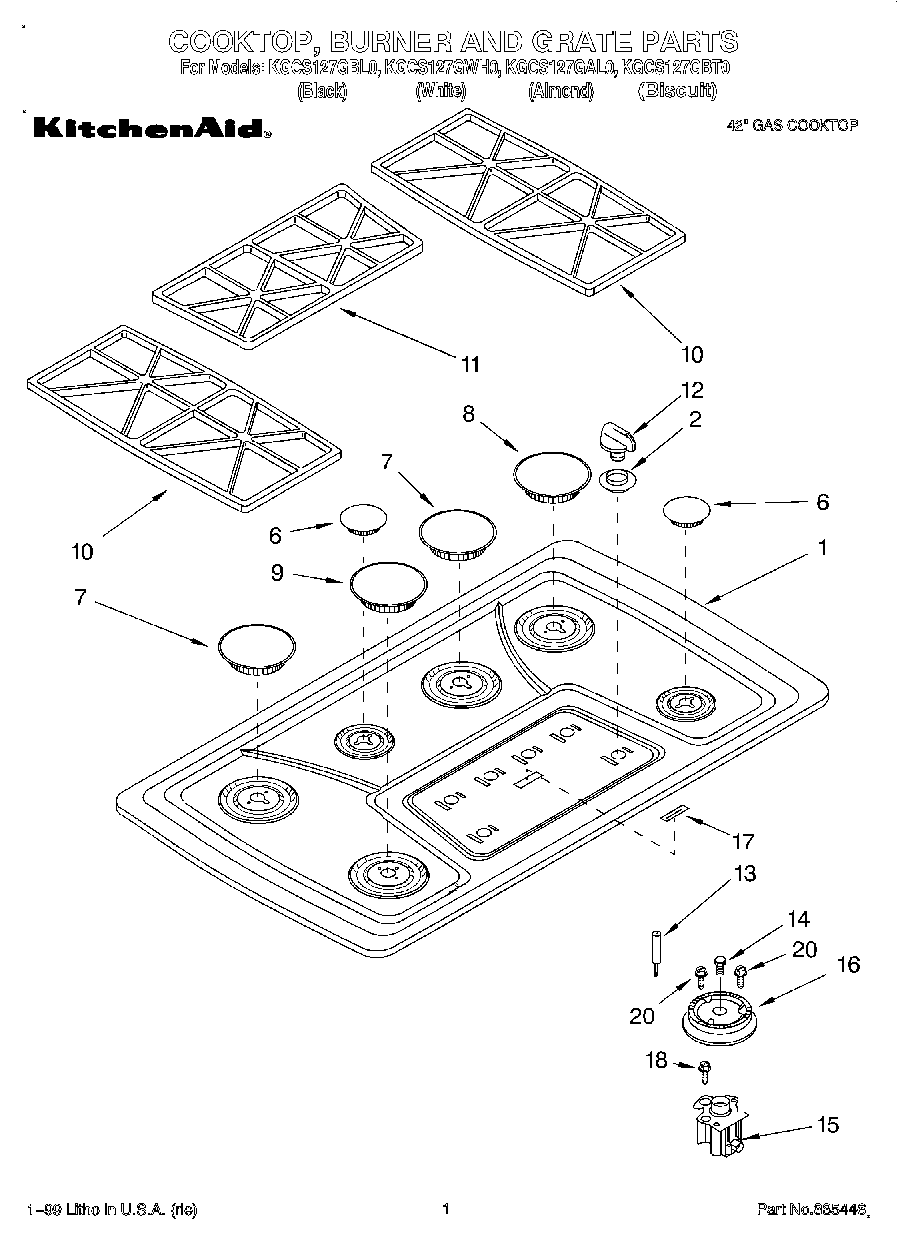

KGCS127GBL0 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Cooktop (White)
1	Cooktop (Almond)
1	Cooktop (Black)
1	Cooktop (Biscuit)
2	Collar, Knob (Biscuit)
2	Collar, Knob (White)
2	WP4457192 Whirlpool Cooktop Black Bezel Knob
2	Collar, Knob (Almond)
6	Cap, (RF) (LR) (Black)
6	Cap, (RF) (LR) (White)
6	Cap, (RF) (LR) (Biscuit)
7	WP3191731 Whirlpool Burner Cap
7	Cap, (CR) (Biscuit)
7	Cap, (CR) (White)
8	Cap, (RR) (White)
8	Cap, (RR) (Black)
8	Cap, (RR) (Biscuit)
9	Cap, (LF) (Biscuit)
9	Cap, (LF) (Black)
9	Cap, (LF) (White)
10	Grate, Burner (White)
10	Grate, Burner (Biscuit)
10	Grate, Burner (Black)
11	Grate, Center (Biscuit)
11	Grate, Center (White)
11	Grate, Center (Black)
12	Knob, Control (4) (Almond)
12	WP3191922 Whirlpool Control Knob
12	WPL 3191923
12	WPL 3191925
13	Ignitor
14	Orifice (RF)
14	WP9753930 Whirlpool Orifice
14	WP3192523 Whirlpool Orifice
14	Orifice (Turbi (14k))
15	814513 Whirlpool Top Burner
15	WPL 3191743
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
16	Head, Burner (RF)
16	Head, Burner (LF)
16	Head, Burner (14K LF)
17	Nameplate (Almond)
17	Nameplate (Biscuit)
17	Nameplate (Black)
17	Nameplate (White)
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
